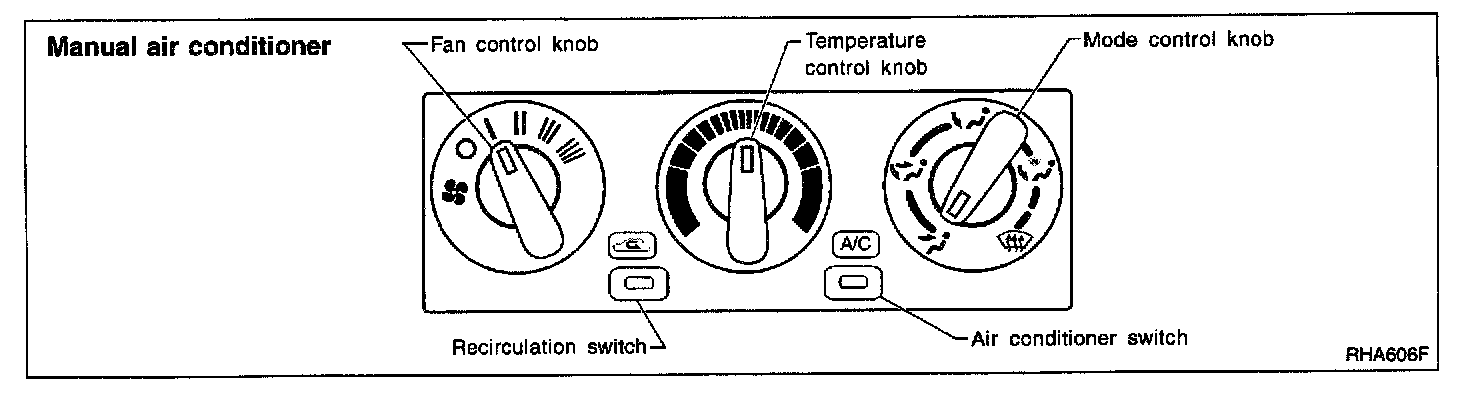

Control Operation

FAN CONTROL KNOB
This knob turns the fan ON and OFF, and controls fan speed.

MODE CONTROL KNOB
This knob controls the outlet air flow.
In "DEF" or "D/F" mode, the intake door is set to "FRESH".

TEMPERATURE CONTROL KNOB
This knob allows adjustment of the temperature of the outlet air.

RECIRCULATION (REC) SWITCH
OFF position: Outside air is drawn into the passenger compartment.

ON position: Interior air is recirculated inside the vehicle. The indicator lamp will also light.

AIR CONDITIONER SWITCH
The air conditioner switch controls the A/C system. When the switch is depressed with the fan ON, the compressor will turn ON. The indicator lamp will also light.

The air conditioner cooling function operates only when the engine is running.
