With Manual Climate Control

TROUBLE DIAGNOSES PROCEDURE FOR MAGNET CLUTCH

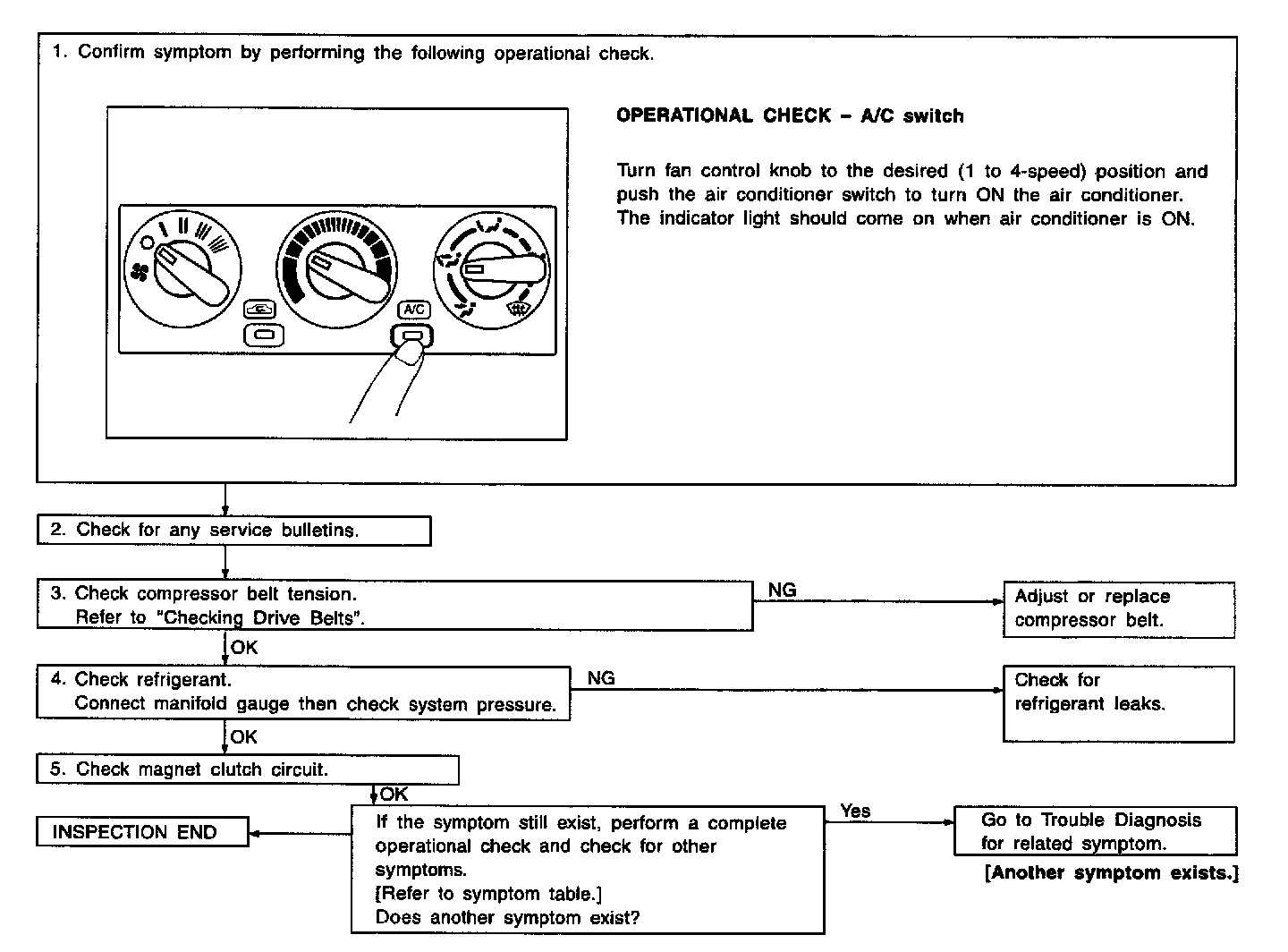

Inspection Flow:

Symptom:
- Magnet clutch does not operate when A/C switch and fan switch are ON.

MAGNET CLUTCH CIRCUIT

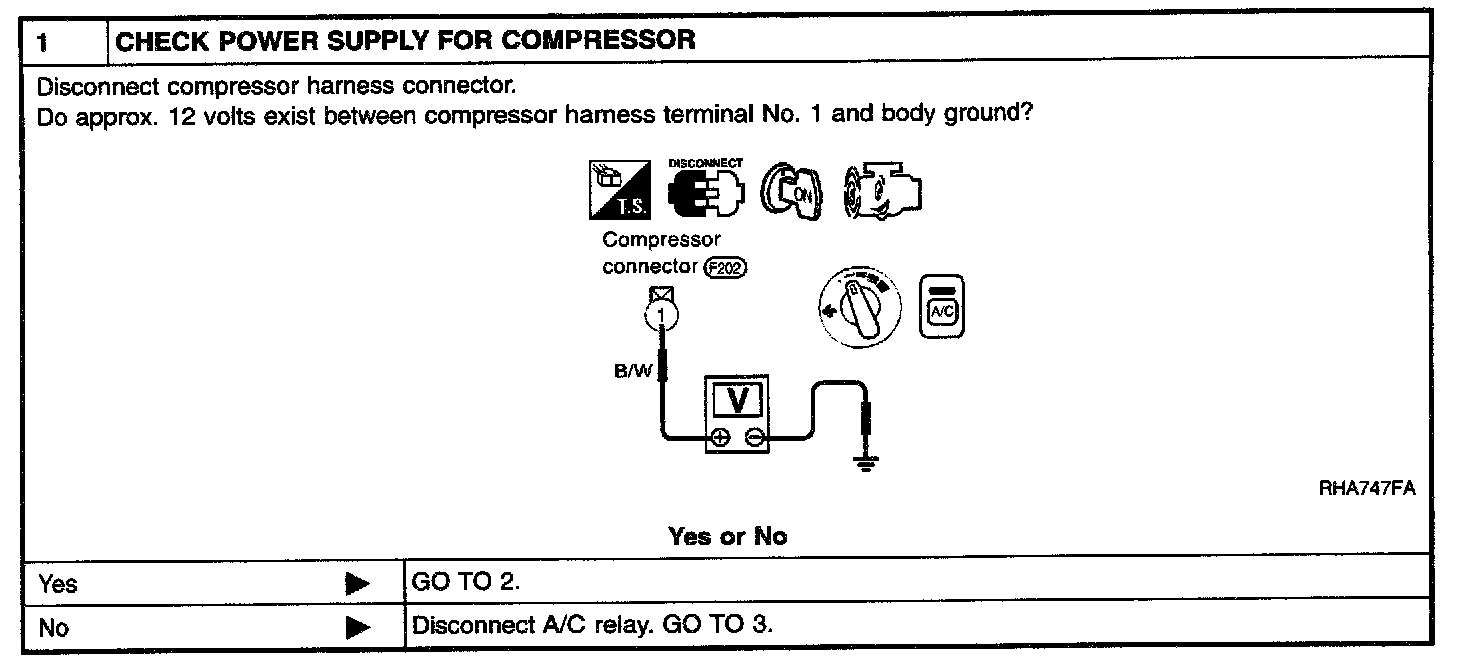

Step 1:

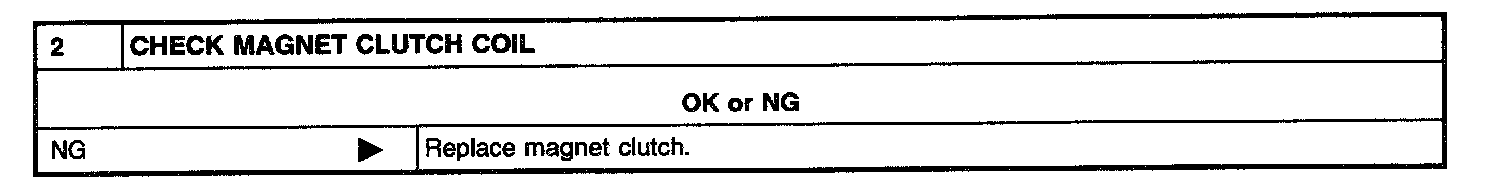

Step 2:

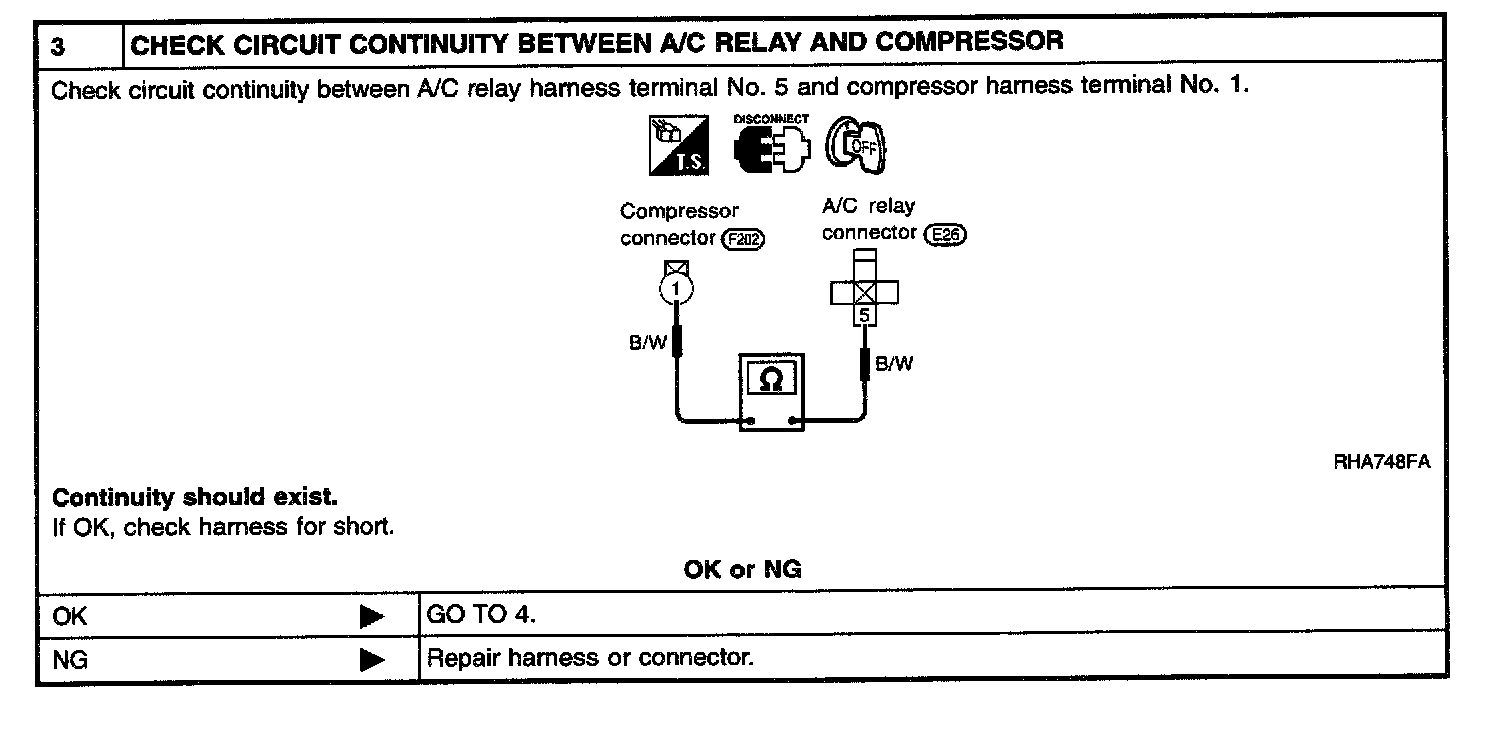

Step 3:

Step 4:

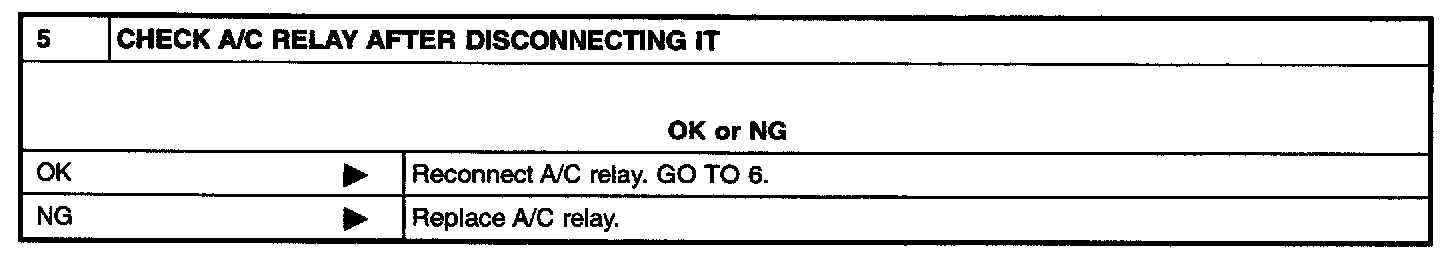

Step 5:

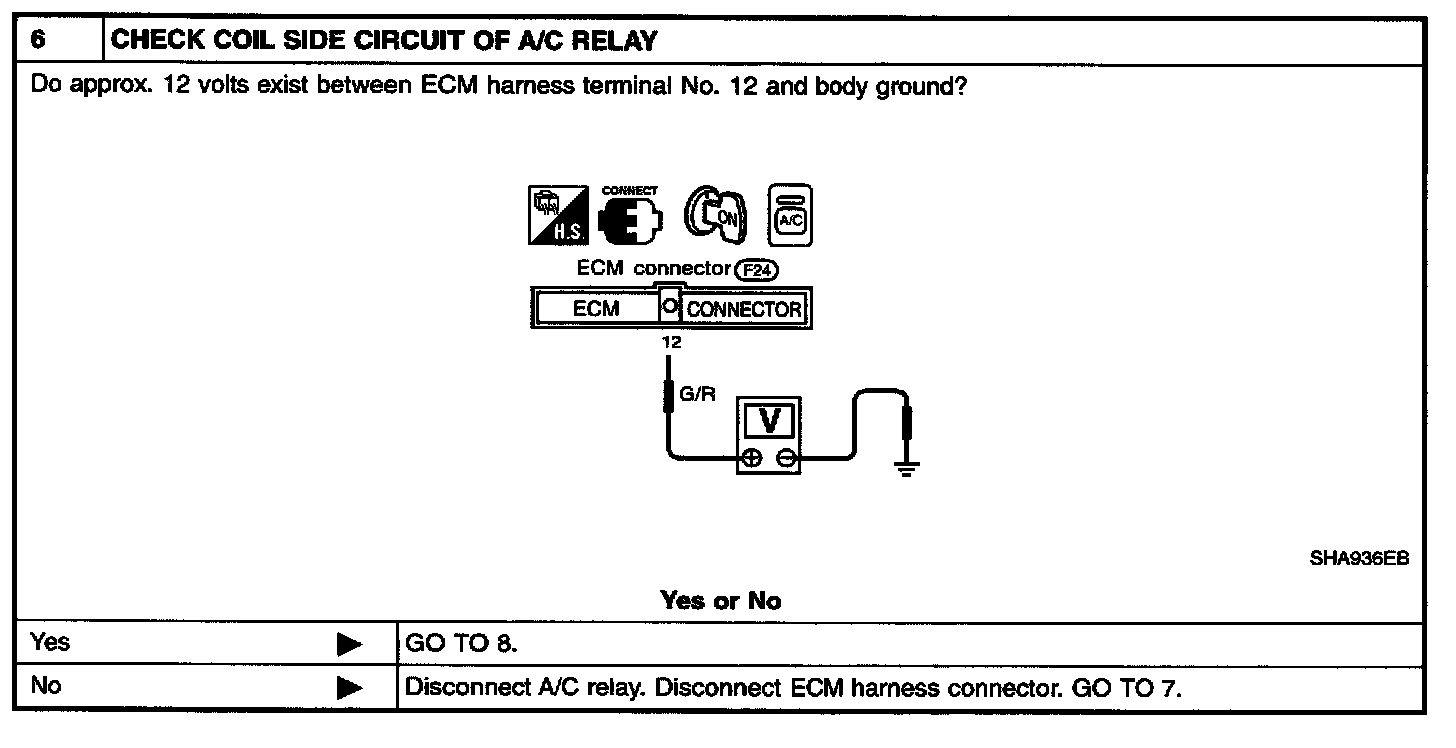

Step 6:

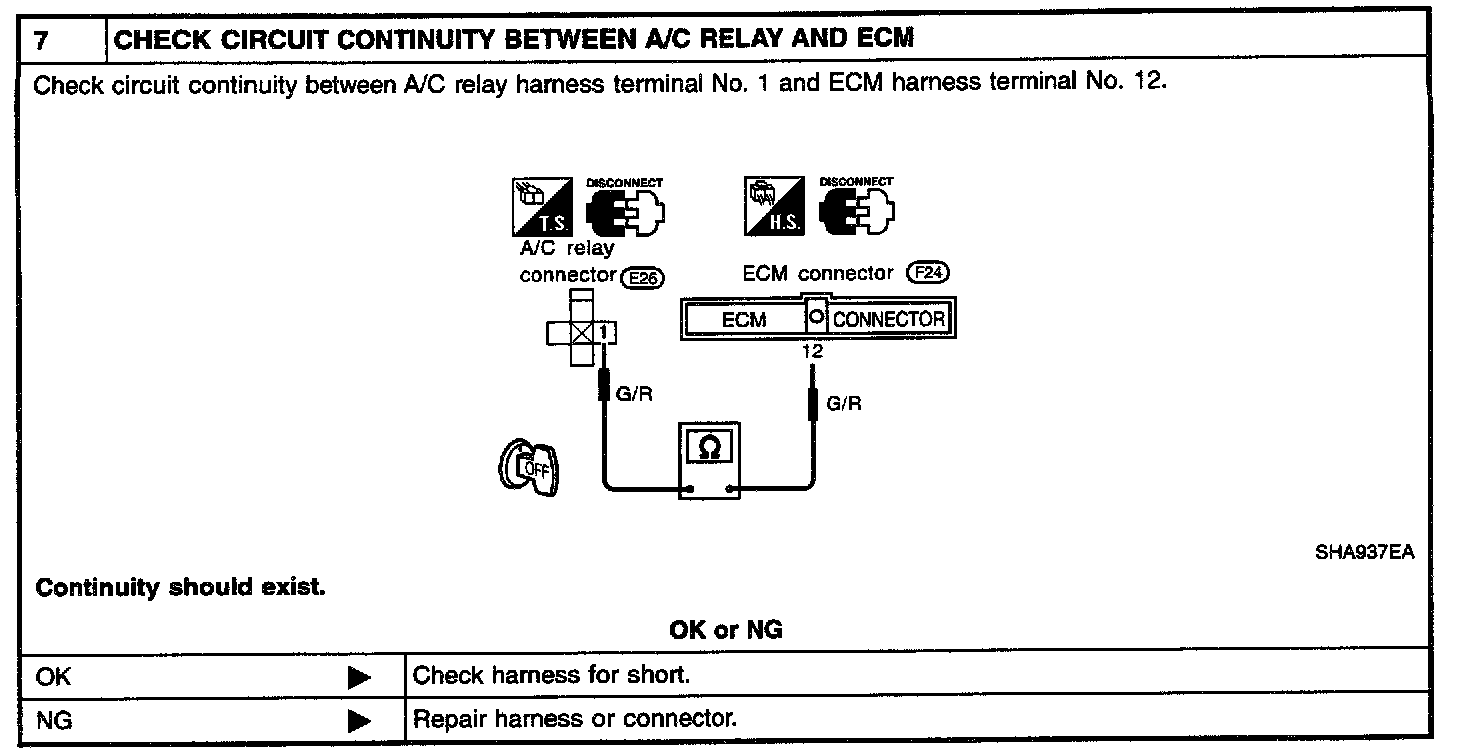

Step 7:

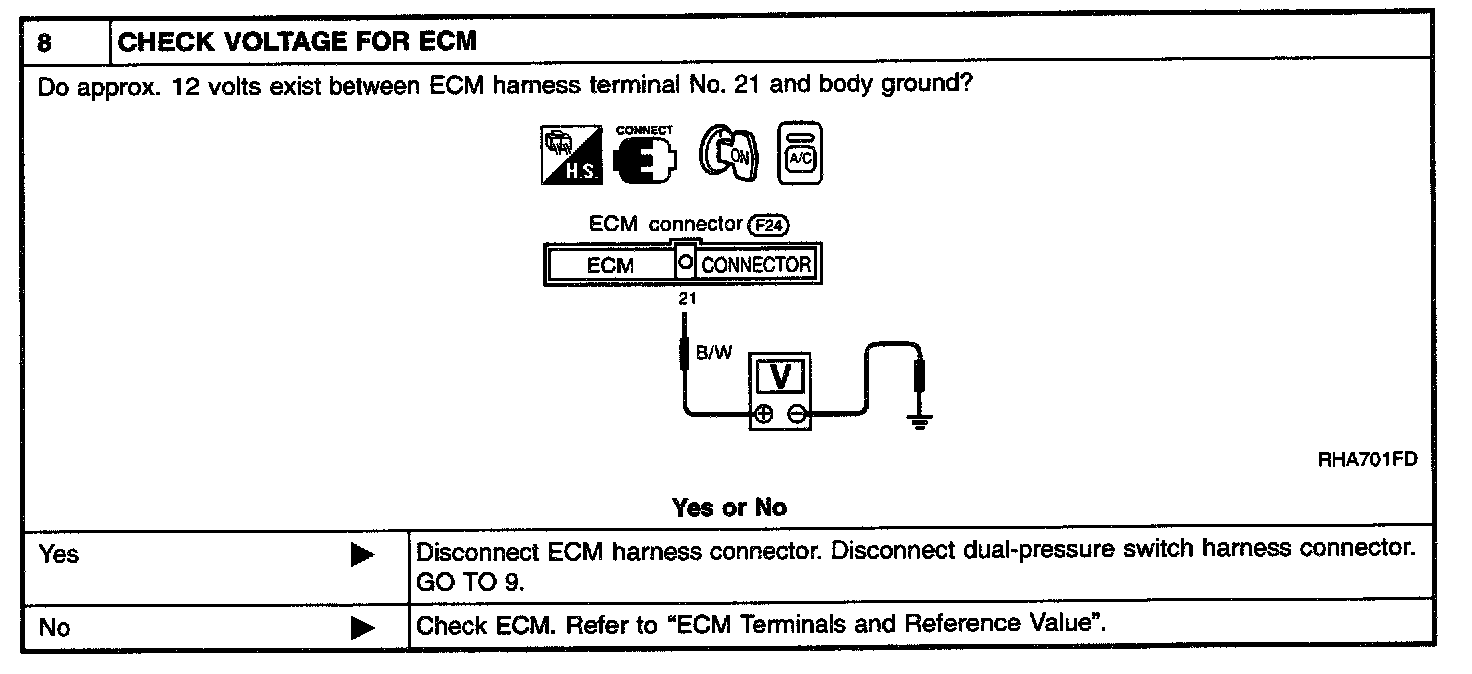

Step 8:

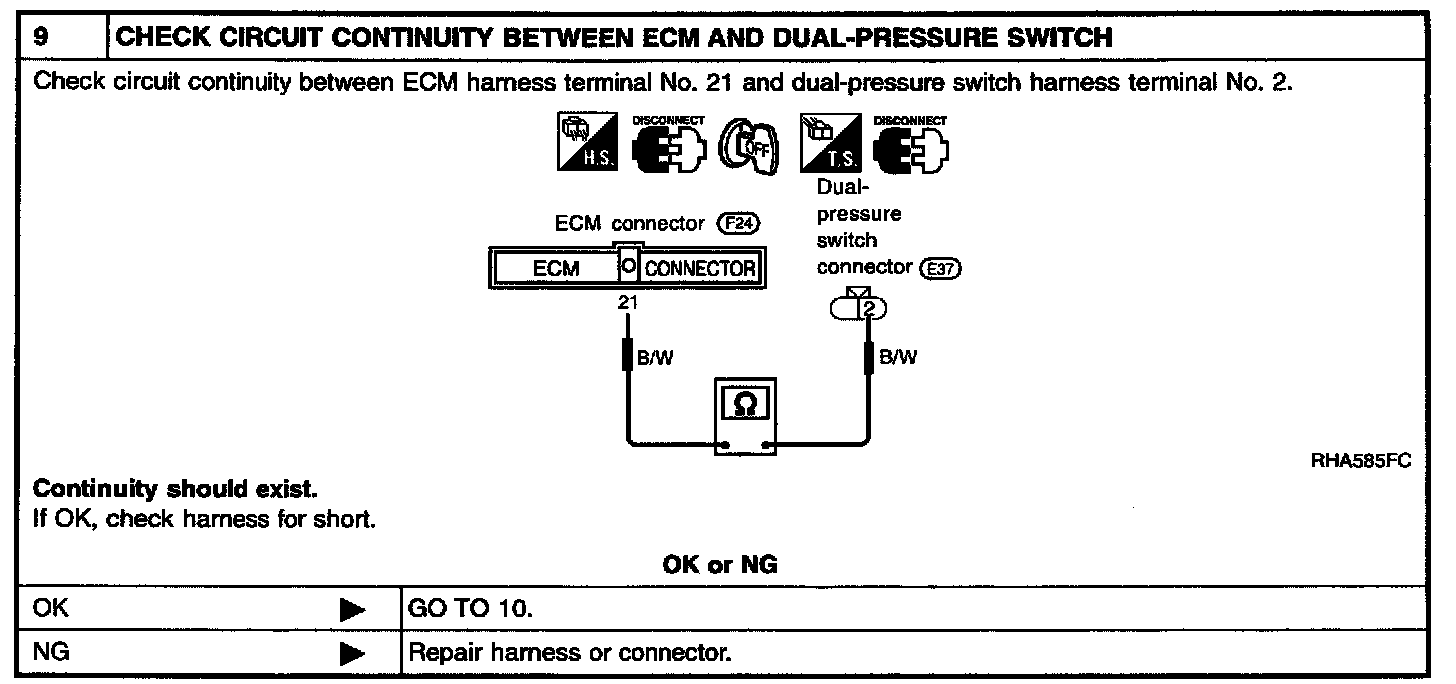

Step 9:

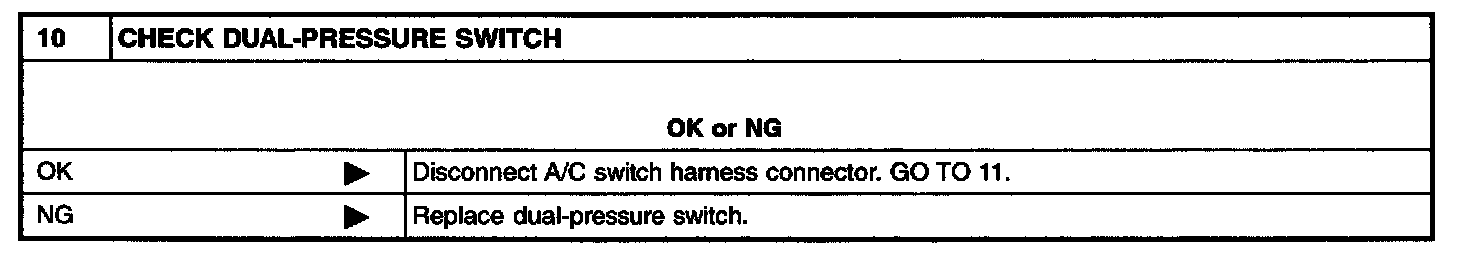

Step 10:

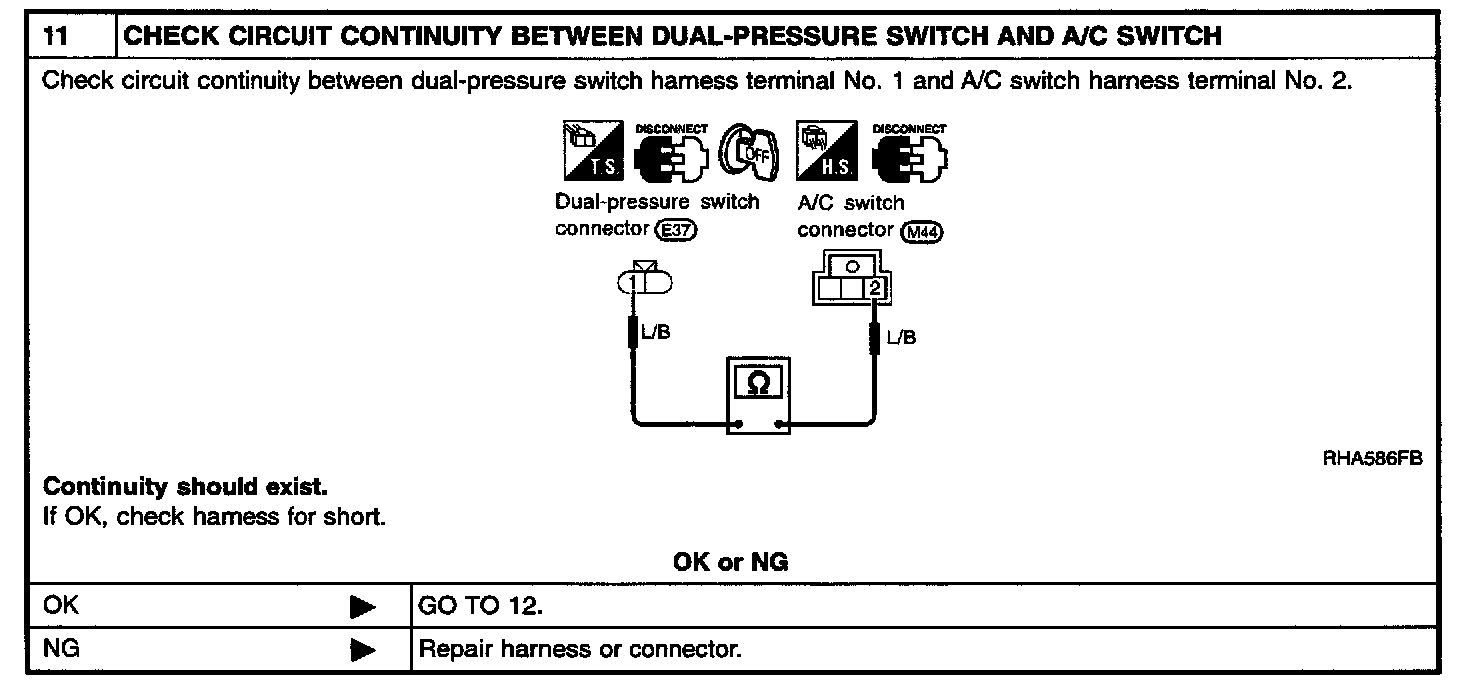

Step 11:

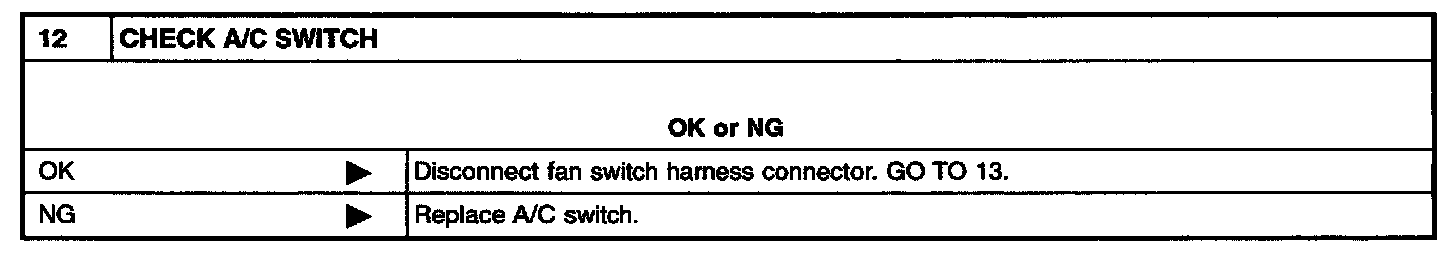

Step 12:

Step 13:

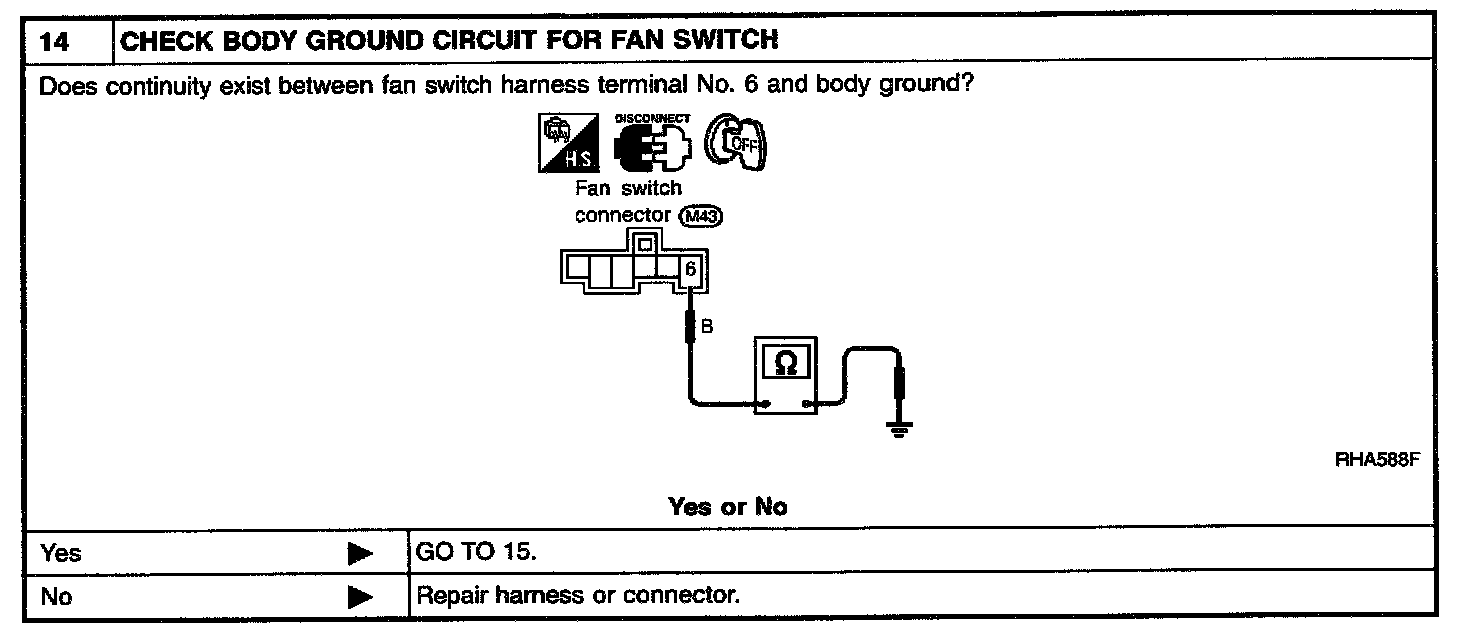

Step 14:

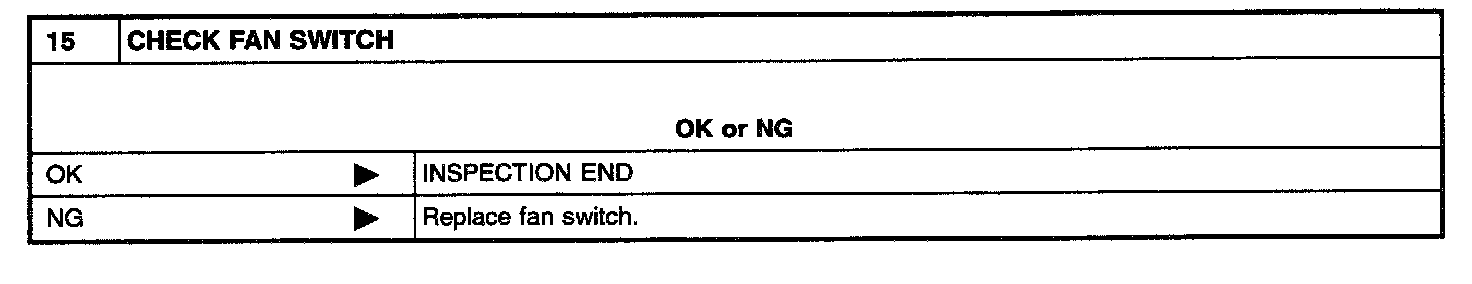

Step 15:

SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

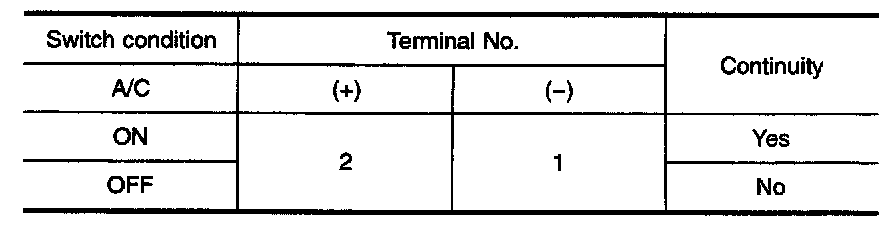

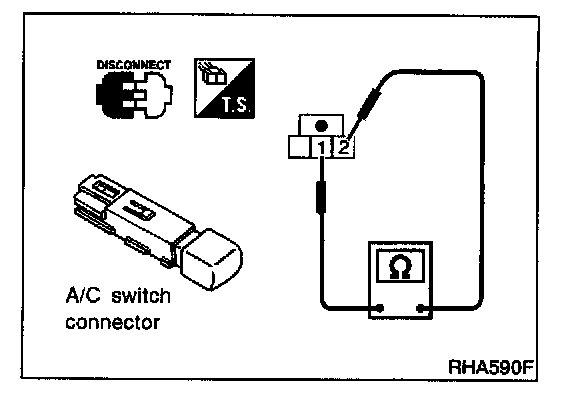

A/C Switch
Check continuity between terminals at each switch position.

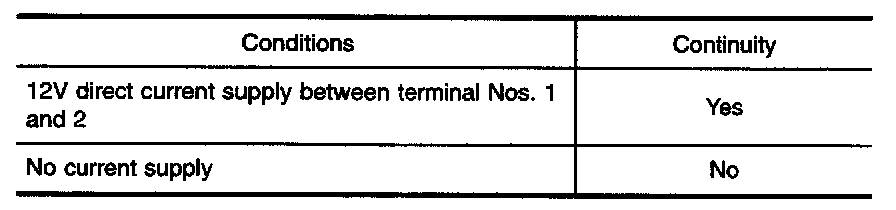

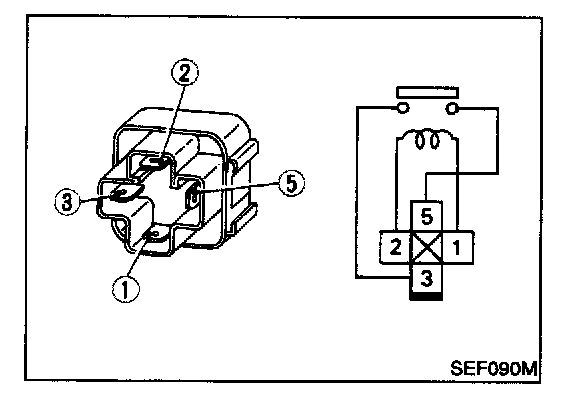

A/C Relay
Check continuity between terminal Nos. 3 and 5.
If NG, replace relay.

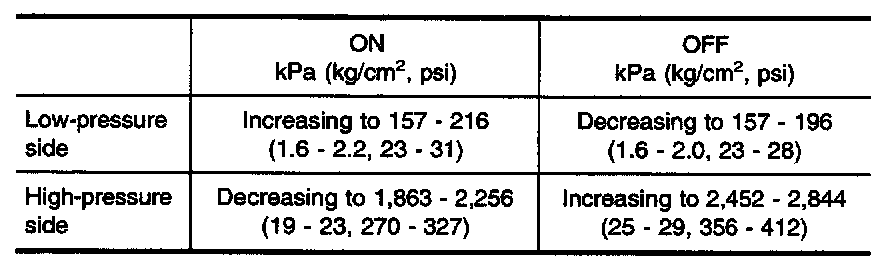

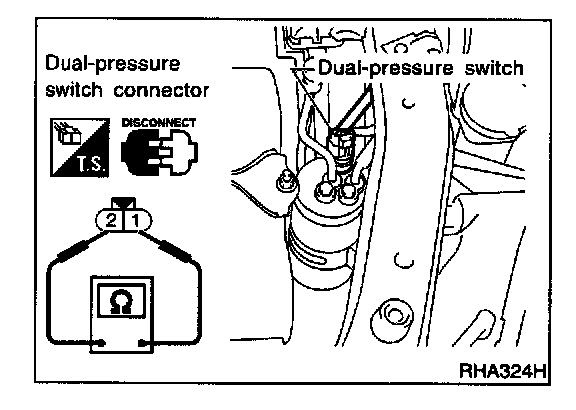

Dual-pressure Switch
