Home >> Nissan-Datsun Truck >> 2000 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Catalytic Converter

Catalytic Converter

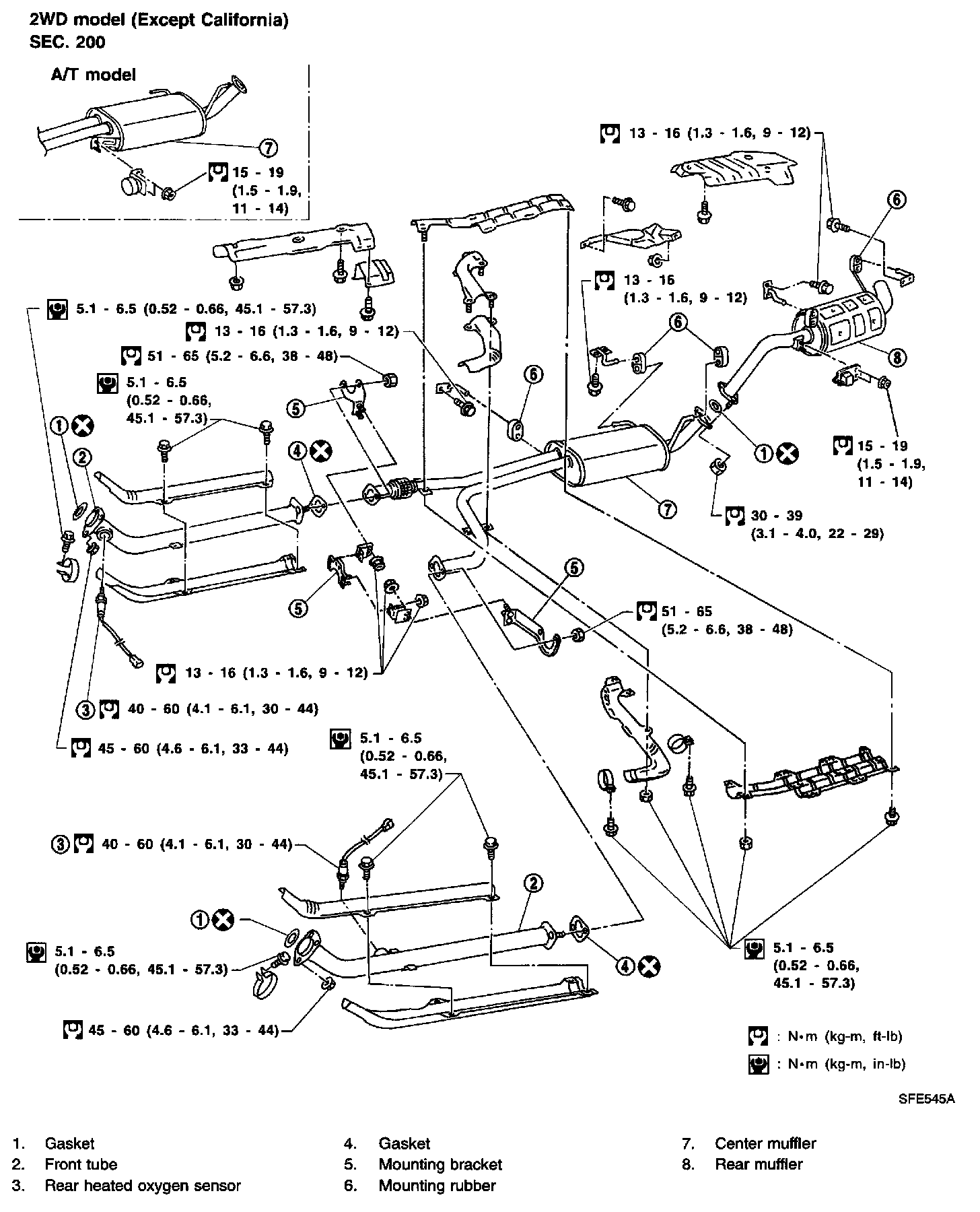

2WD Model (Except California):

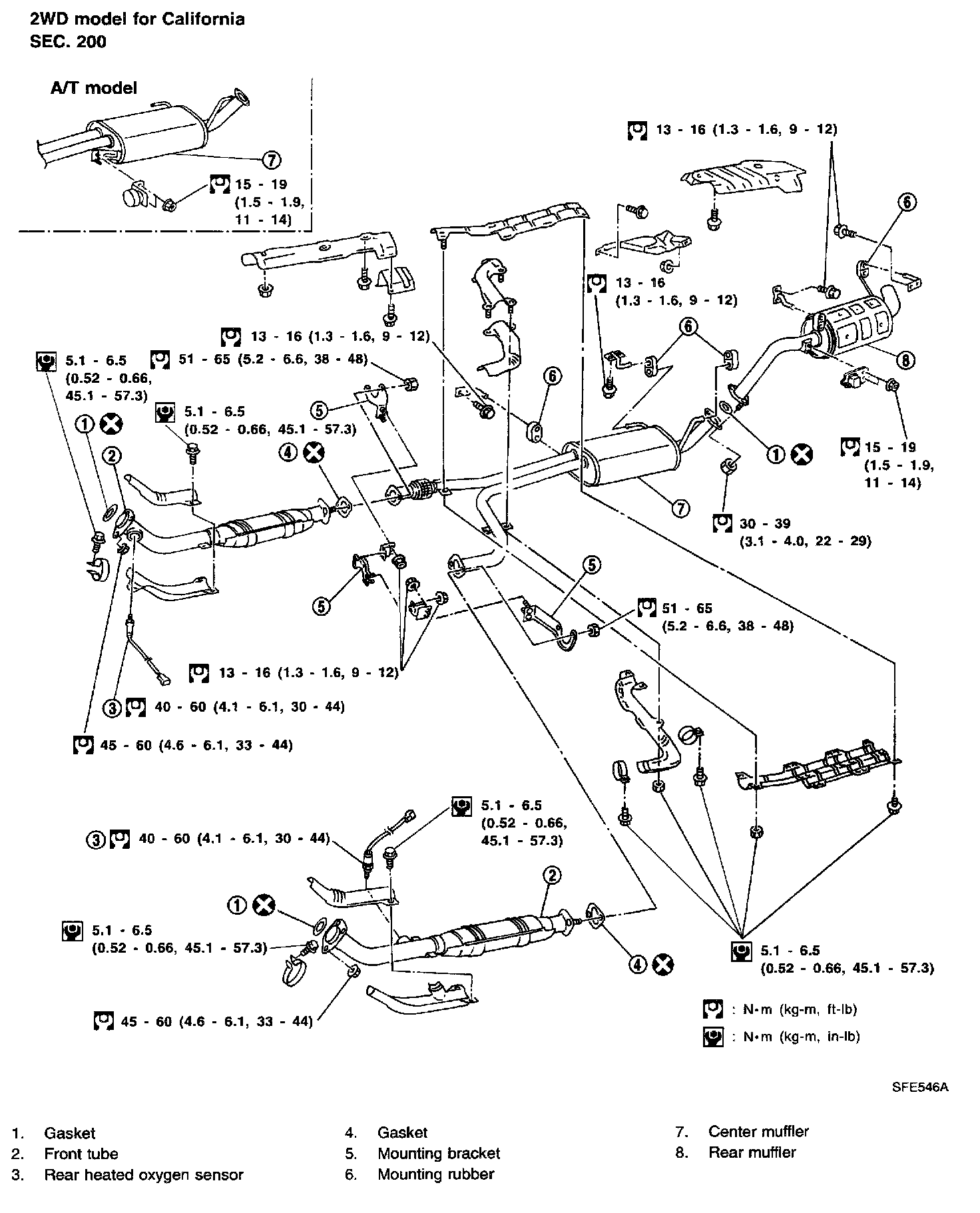

2WD Model For California:

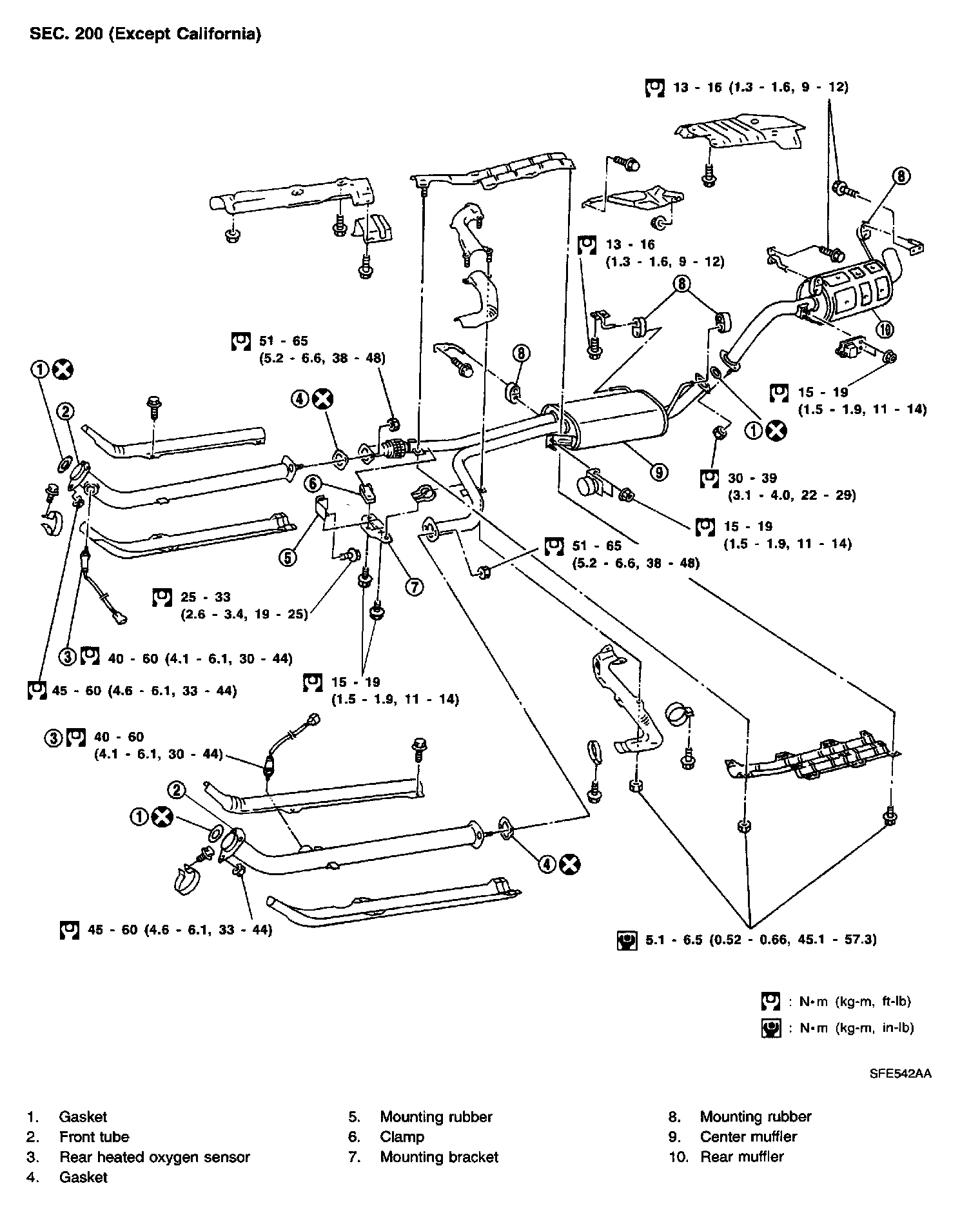

Except California:

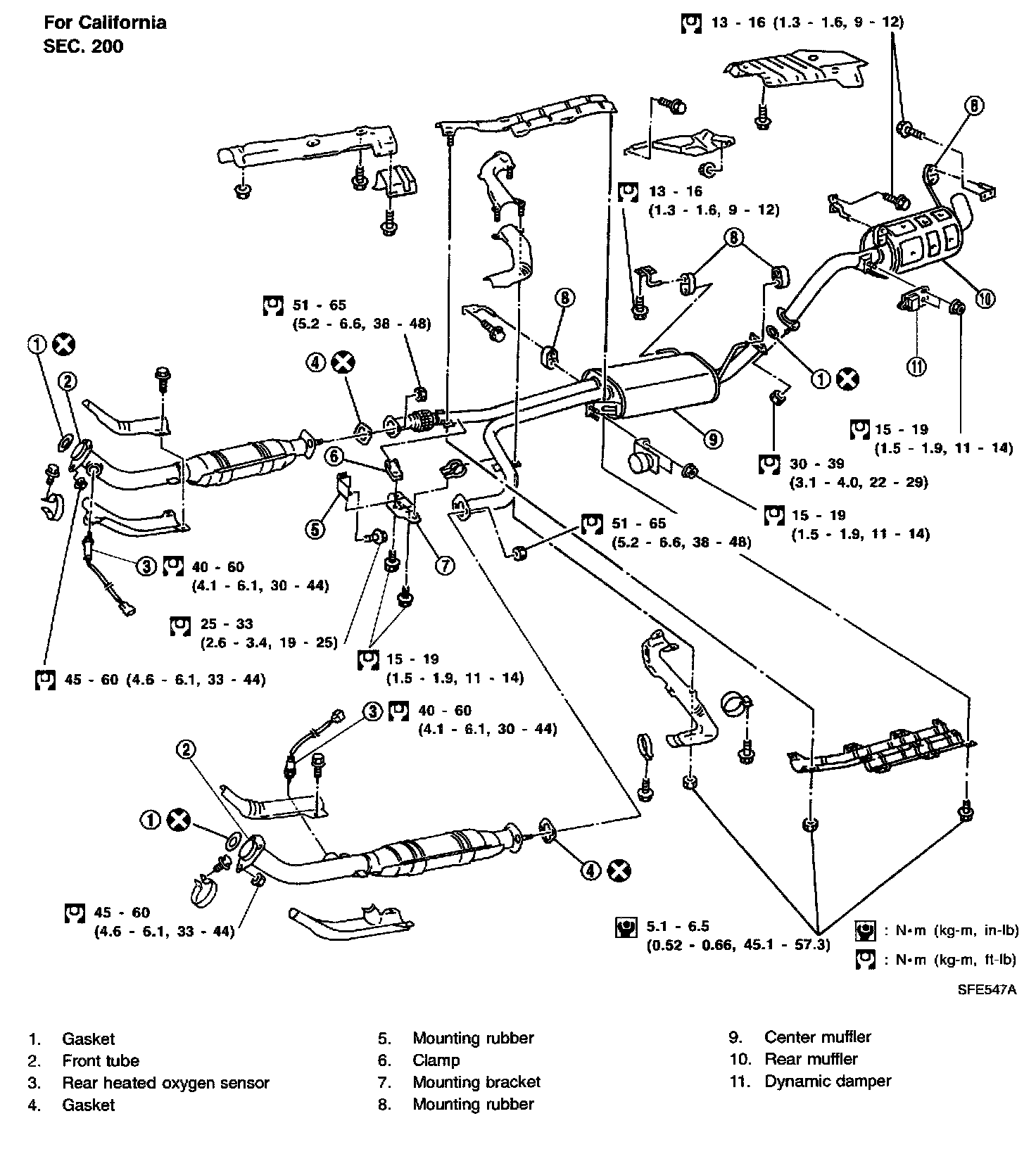

For California:
