System Diagram
System Diagram

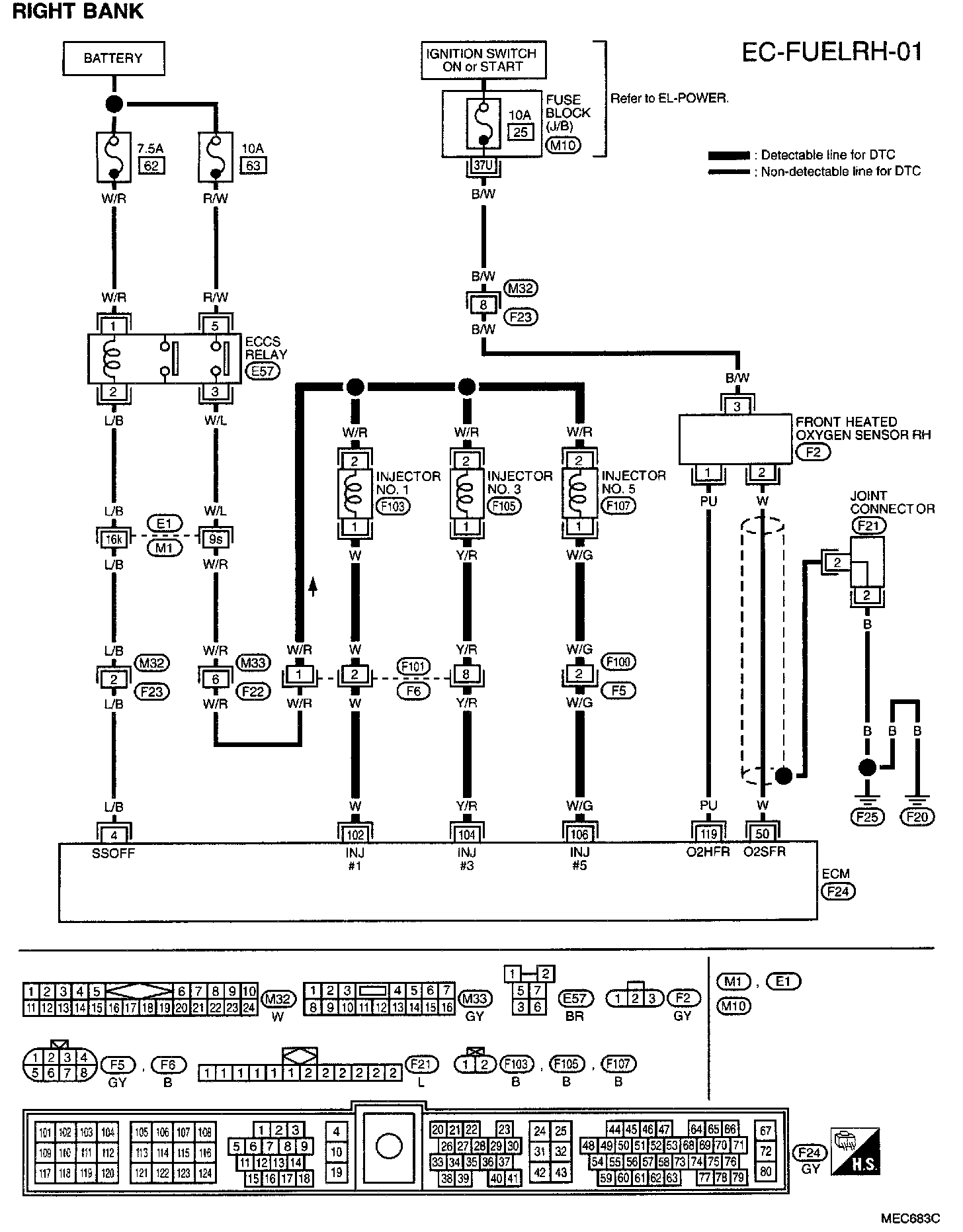

EC-FUELRH-01:
(Right, -B1) Fuel Injection System Function

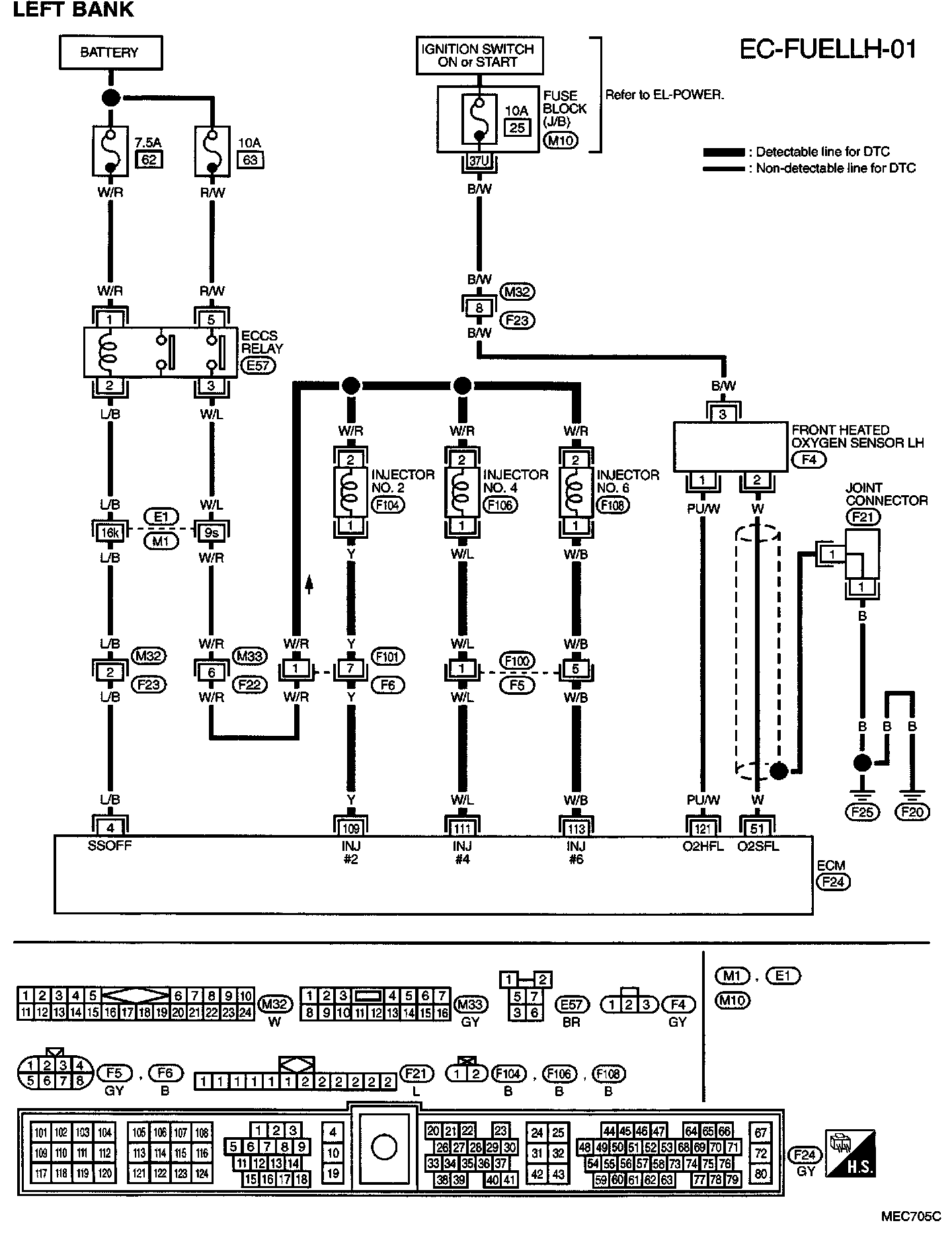

EC-FUELLH-01:
(Left, -B2) Fuel Injection System Function
