Meter and Gauges

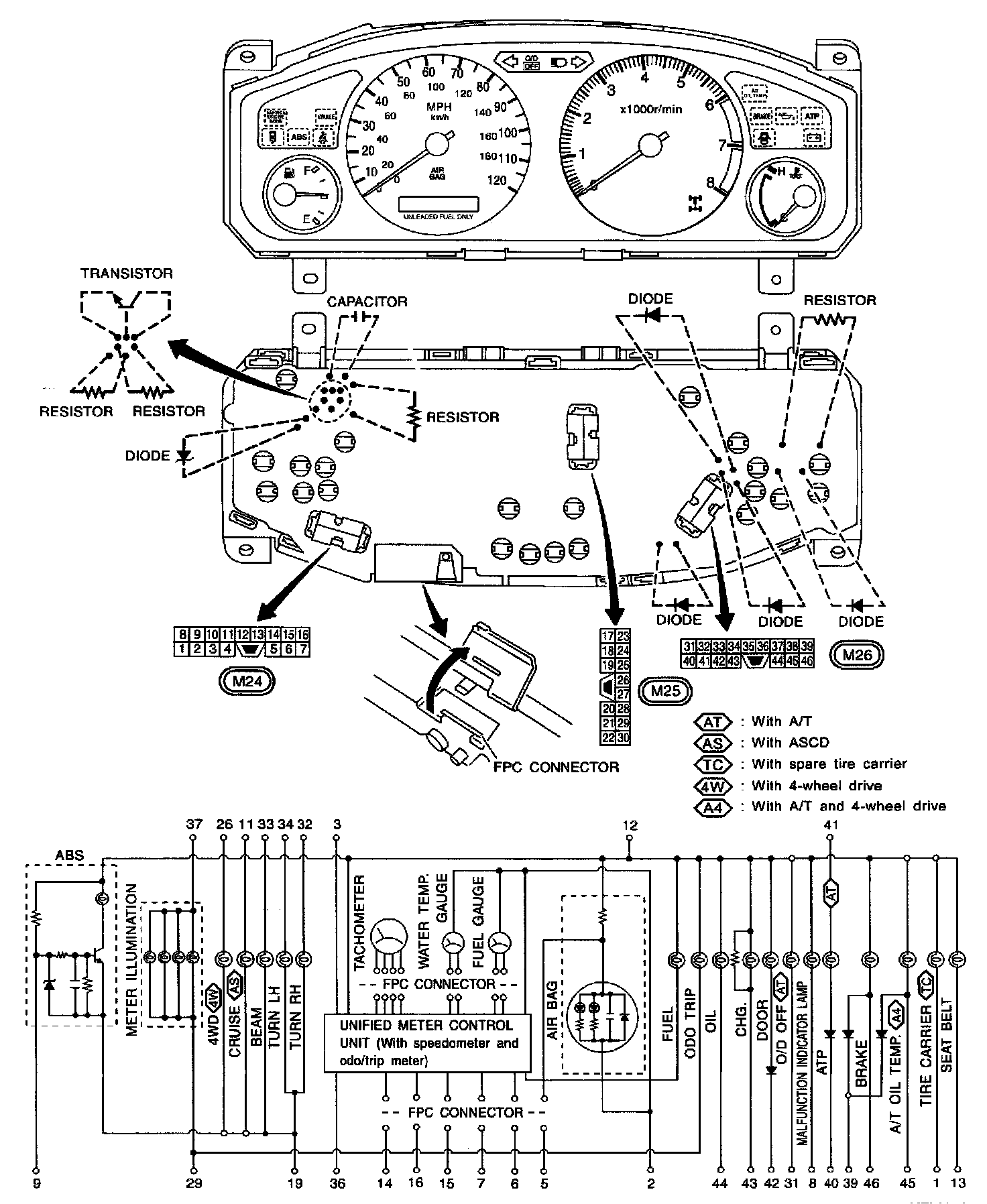

Combination Meter (For USA)

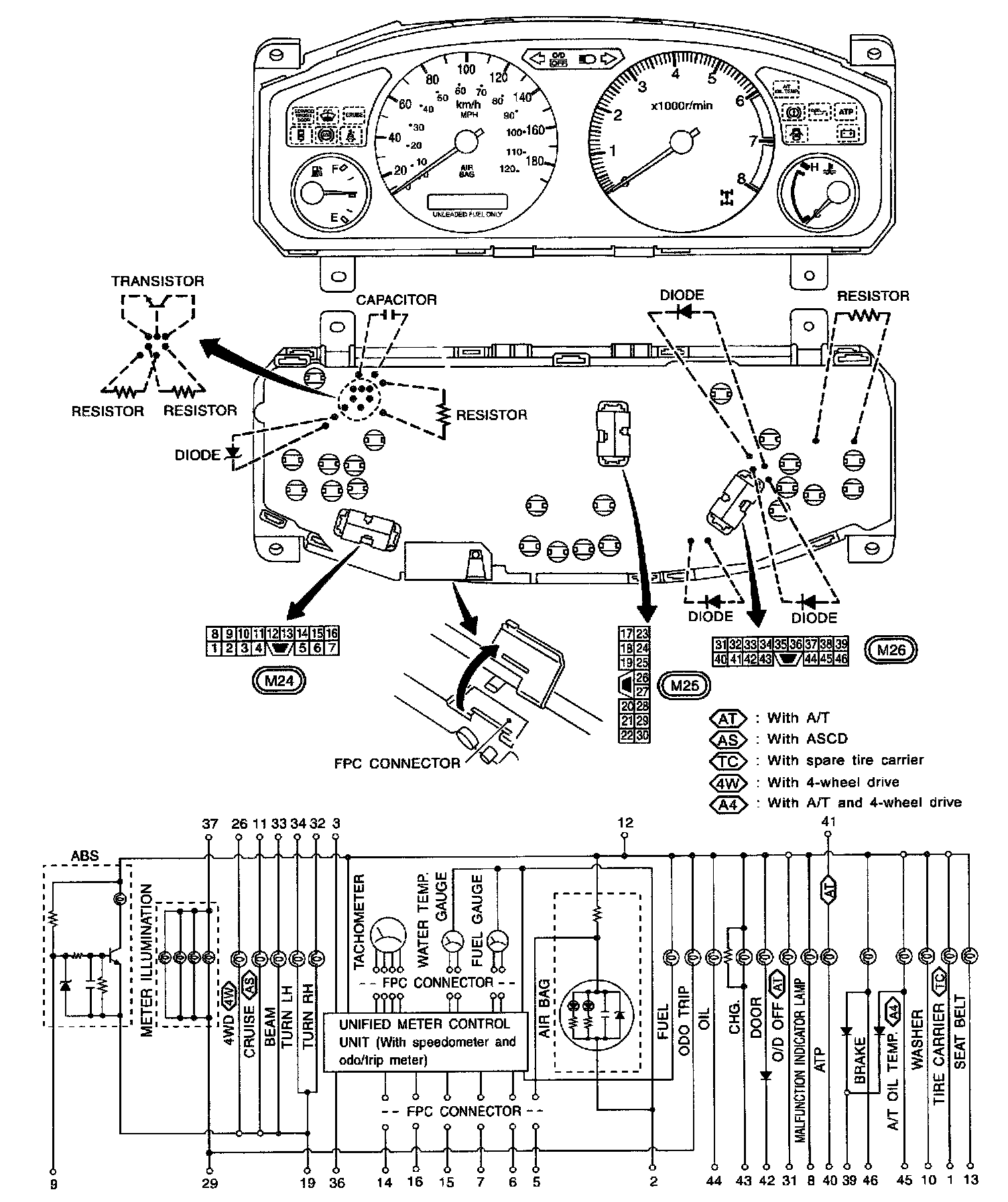

Combination Meter (For CANADA)

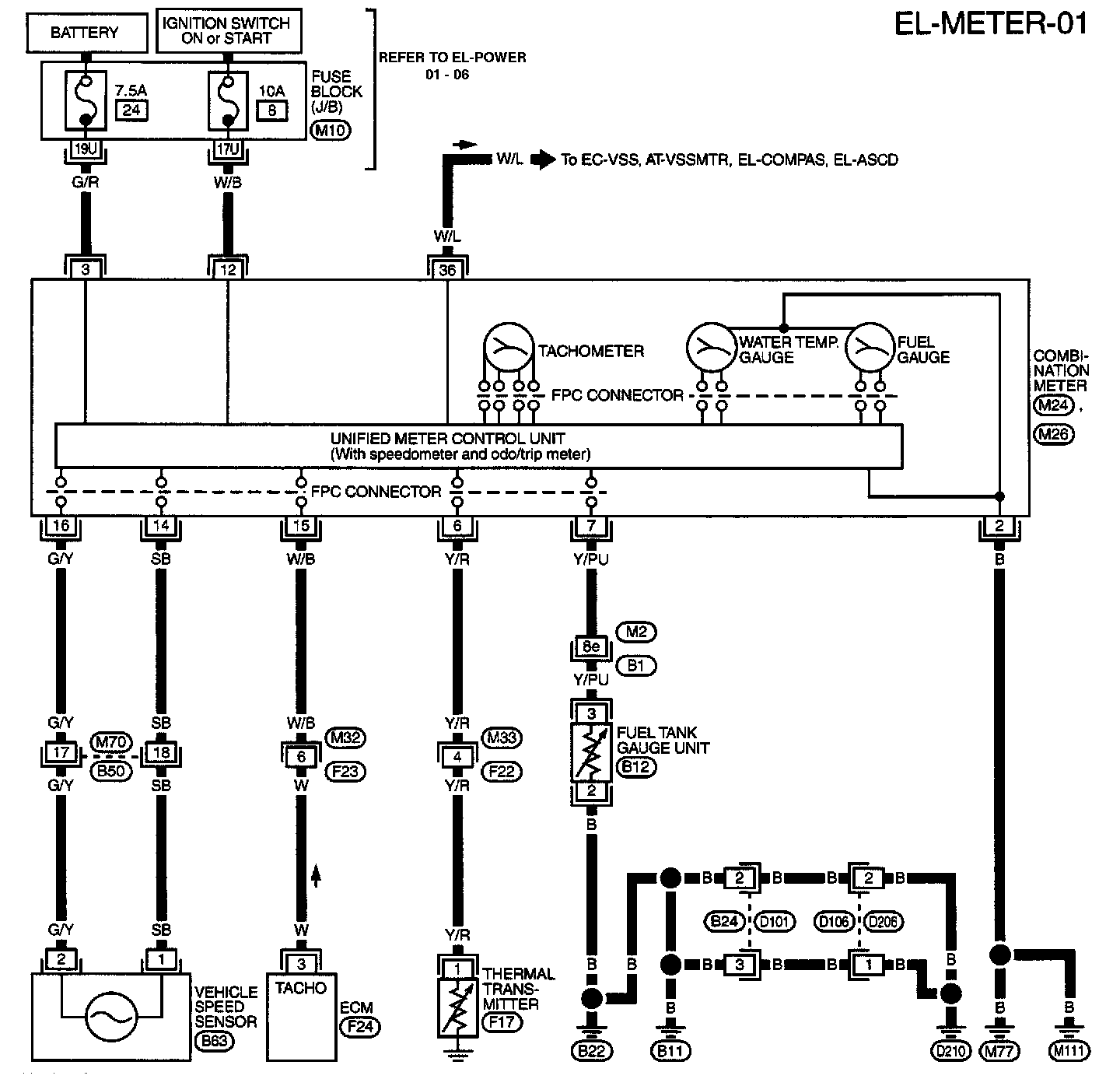

EL-Meter-01:
Circuit Diagrams

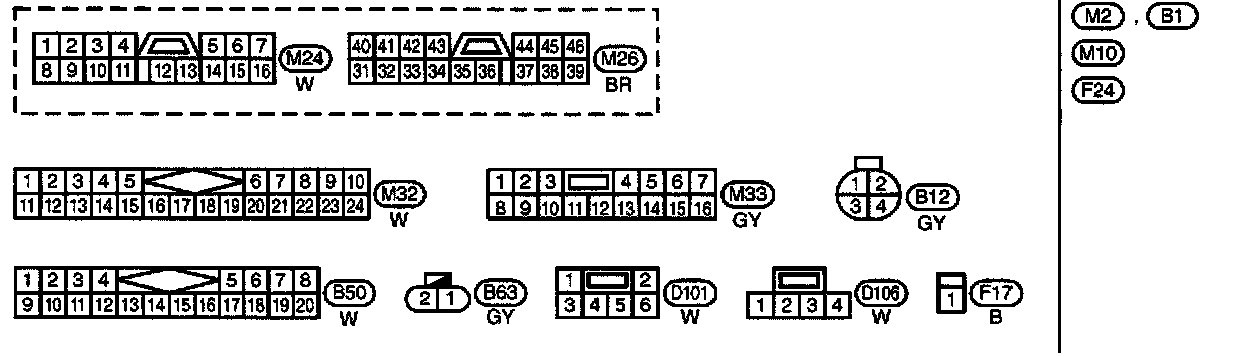

Circuit Connectors
Main Harness, Engine Room, And Body Harness Connector Views:
Fuse Block J/B Connector Views:
Control Module Connector Views:
B1, M2, M10, F24 Super Multiple Junction Box (SMJ), Fuse Block - Junction Box (J/B) and Electrical Units Terminal Arrangement
