Vehicle Security (Theft Warning) System

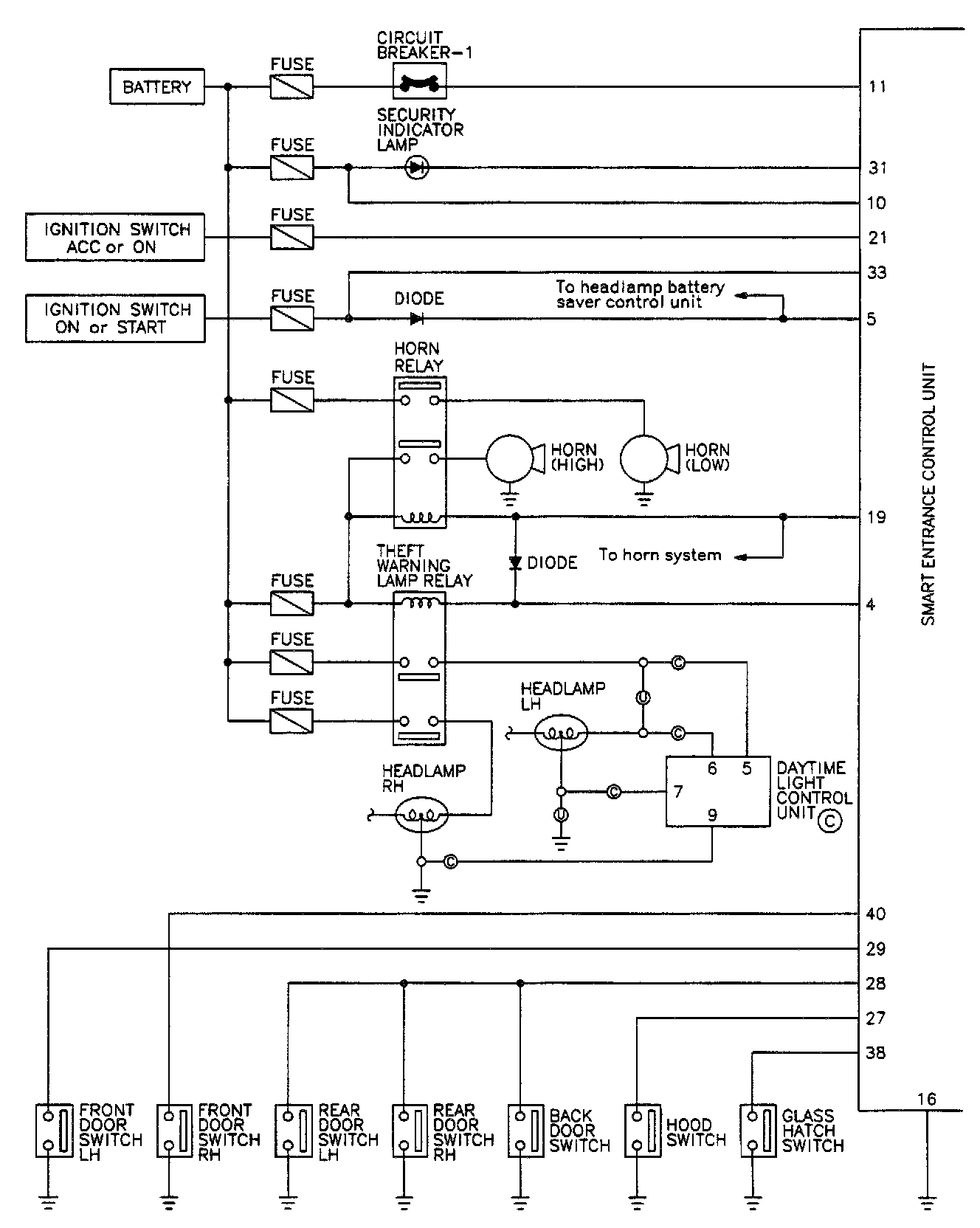

Schematic

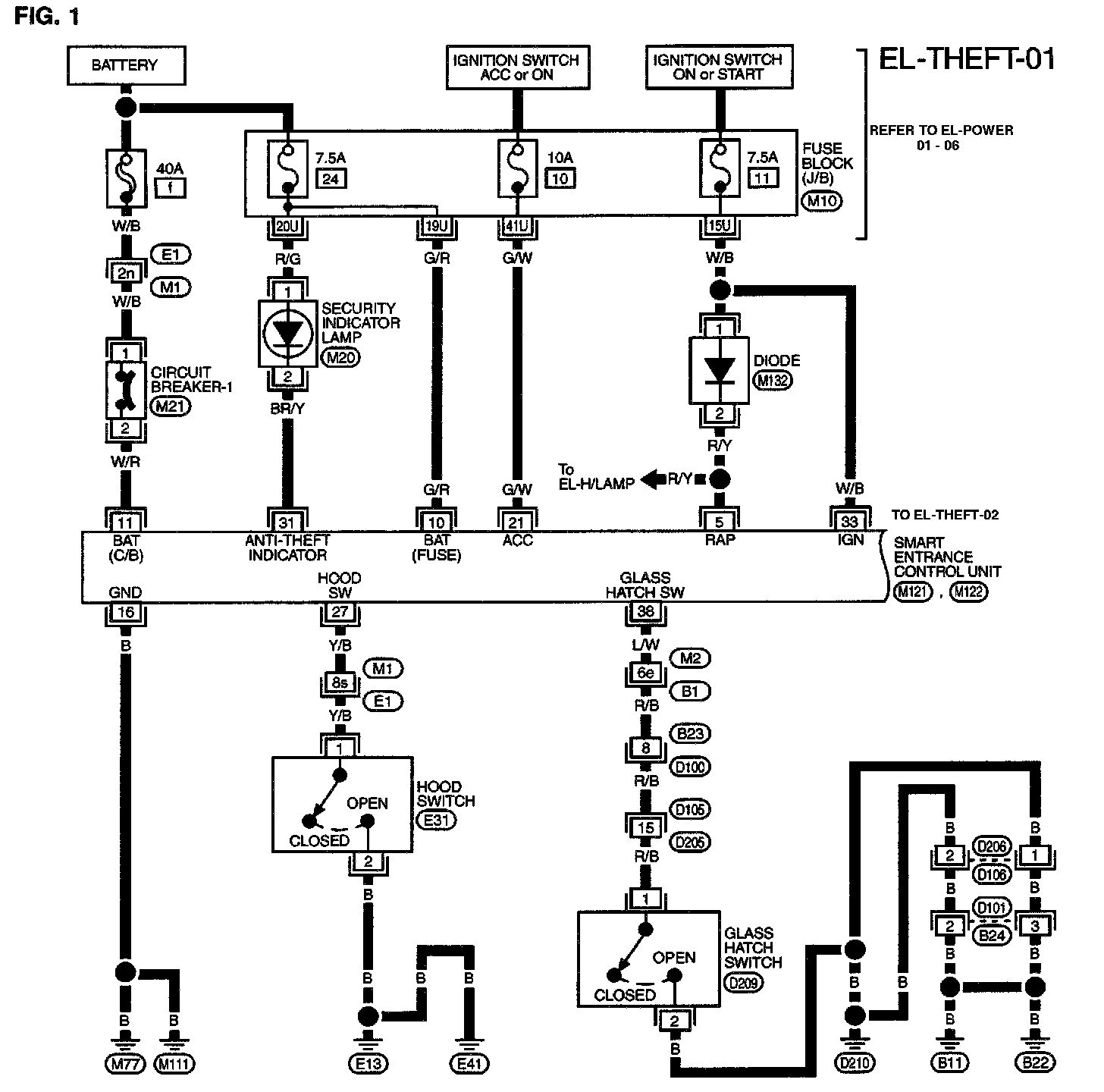

EL-THEFT-01:

(Part 1 of 6)
Fuse Block (J/B)
Circuit Breaker-1
Security Indicator Lamp
Diode
Smart Entrance Control Unit
Hood Switch
Glass Hatch Switch

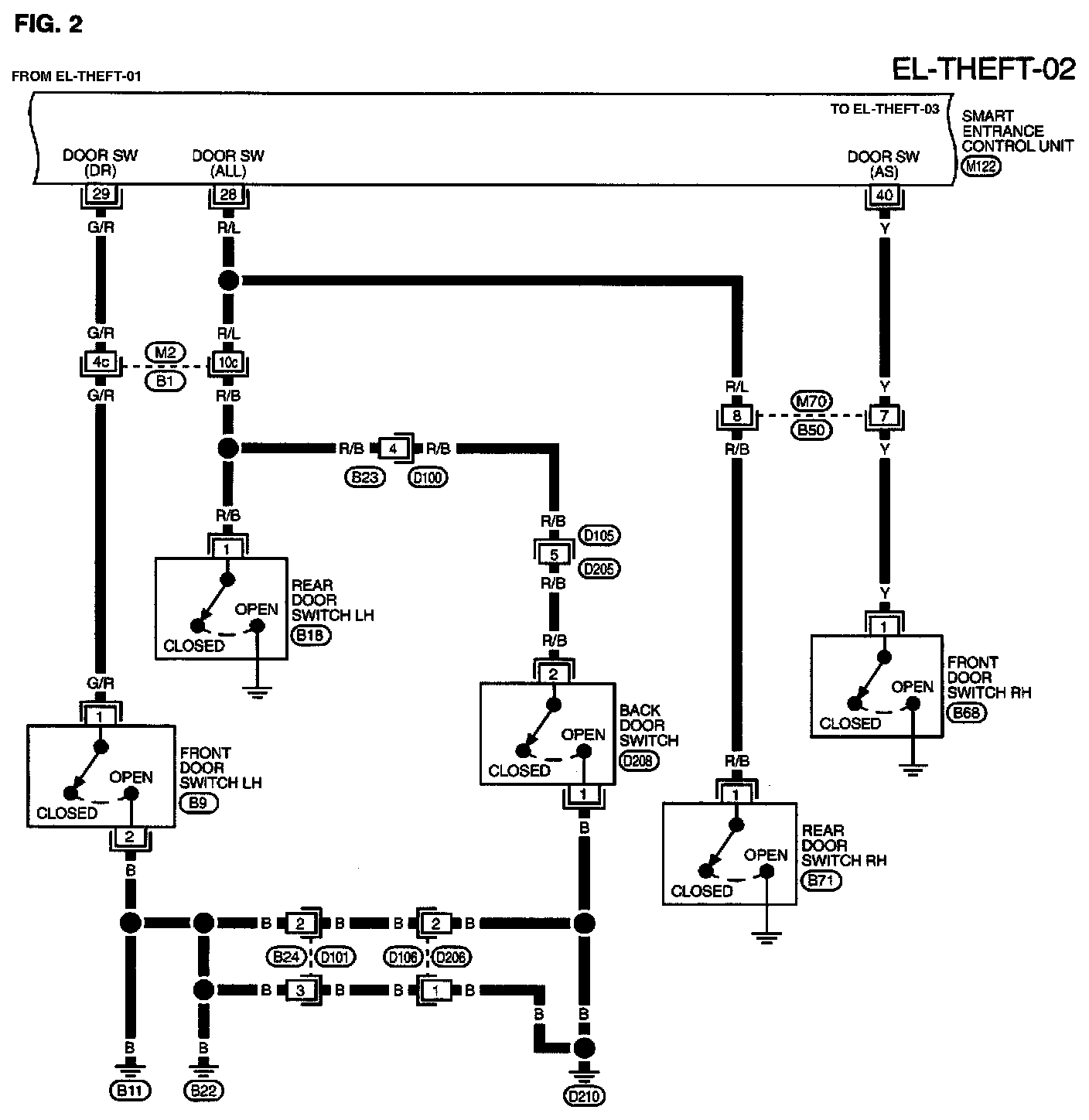

EL-THEFT-02:

(Part 2 of 6)
Smart Entrance Control Unit
Rear Door Switch LH
Front Door Switch LH
Back Door Switch
Rear Door Switch RH
Front Door Switch RH

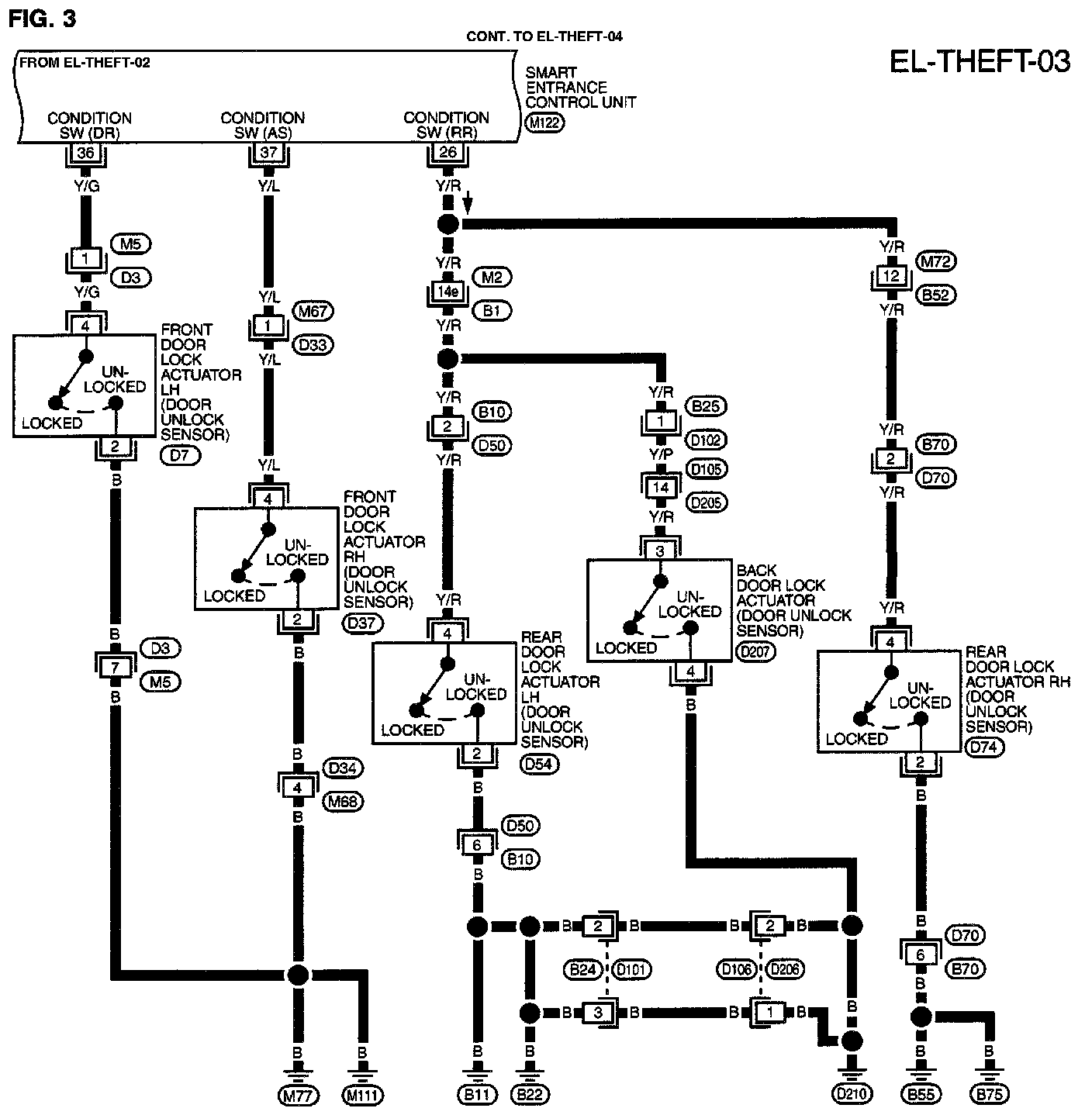

EL-THEFT-03:

(Part 3 of 6)
Smart Entrance Control Unit
Front Door Lock Actuator LH (Door Unlock Sensor)
Front Door Lock Actuator RH (Door Unlock Sensor)
Rear Door Lock Actuator LH (Door Unlock Sensor)
Back Door Lock Actuator (Door Unlock Sensor)
Rear Door Lock Actuator RH (Door Unlock Sensor)

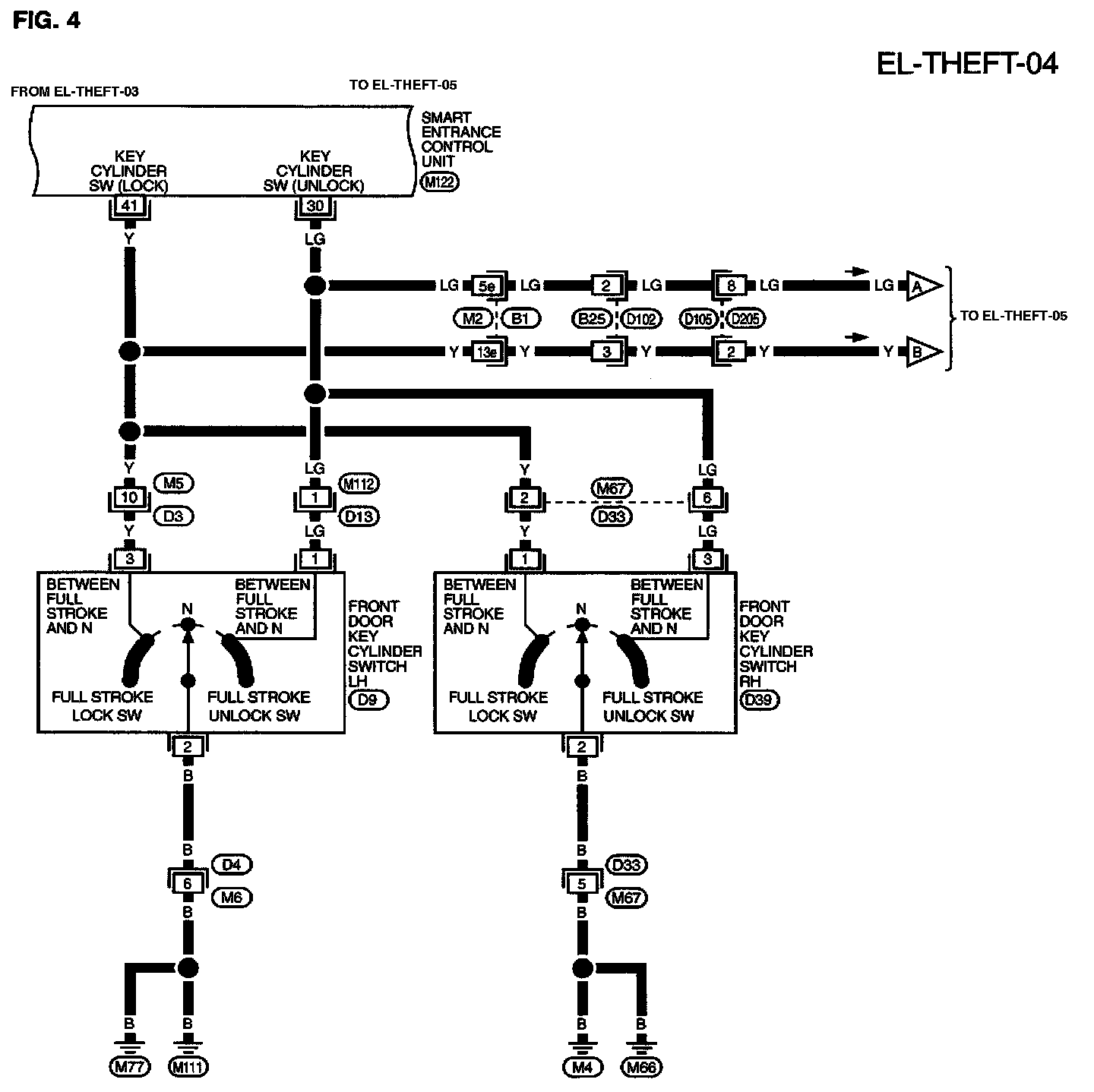

EL-THEFT-04:

(Part 4 of 6)
Smart Entrance Control Unit
Front Door Key Cylinder Switch LH
Front Door Key Cylinder Switch RH

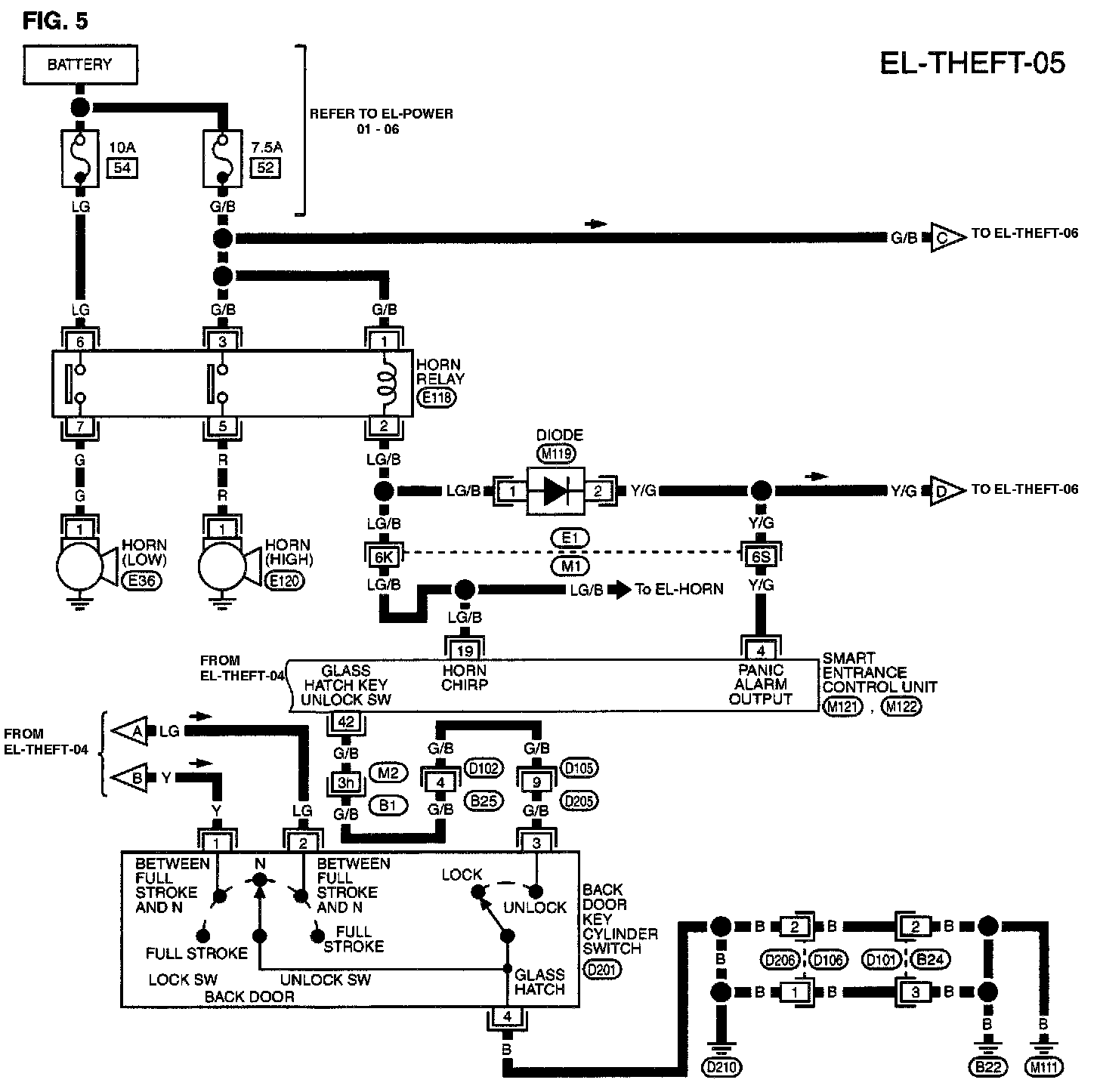

EL-THEFT-05:

(Part 5 of 6)
Horn Relay
Horn (Low)
Horn (High)
Diode
Smart Entrance Control Unit
Back Door Key Cylinder Switch

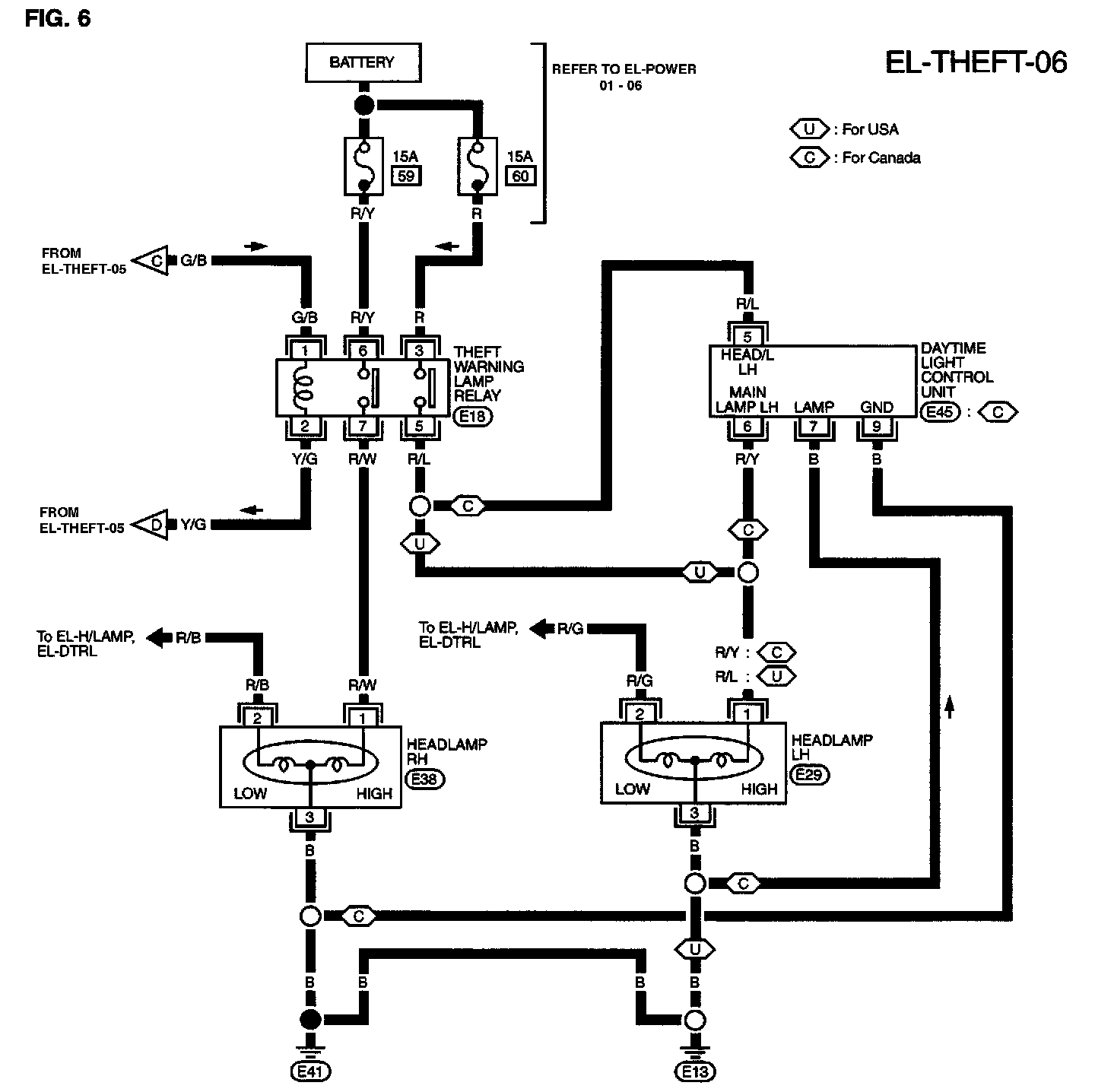

EL-THEFT-06:

(Part 6 of 6)
Theft Warning Lamp Relay
Daytime Light Control Unit
Head Lamp LH
Head Lamp RH

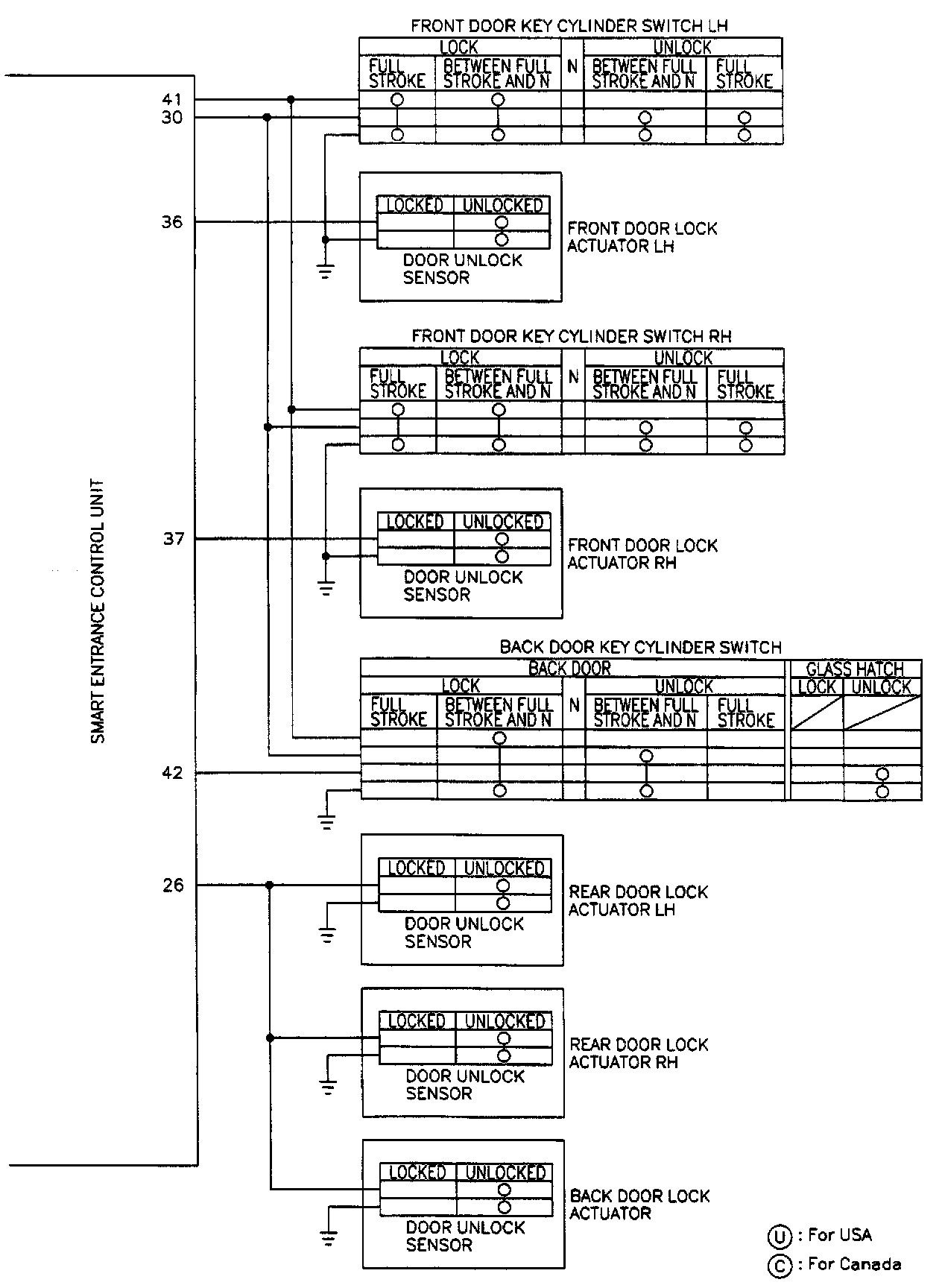

Circuit Diagrams

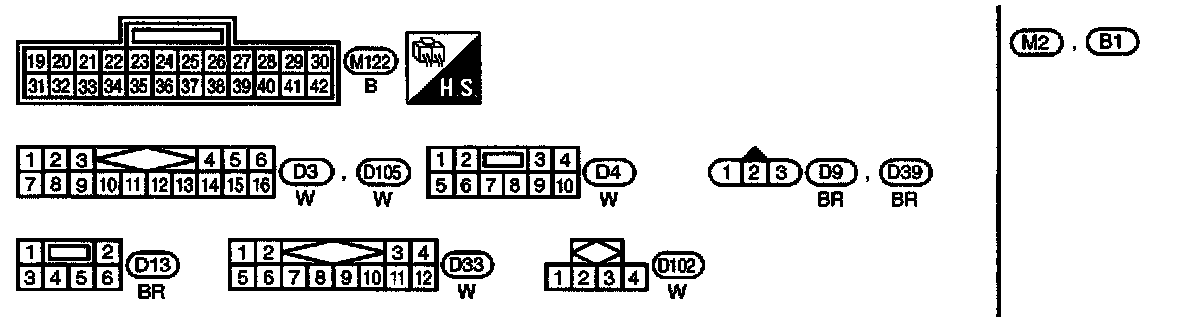

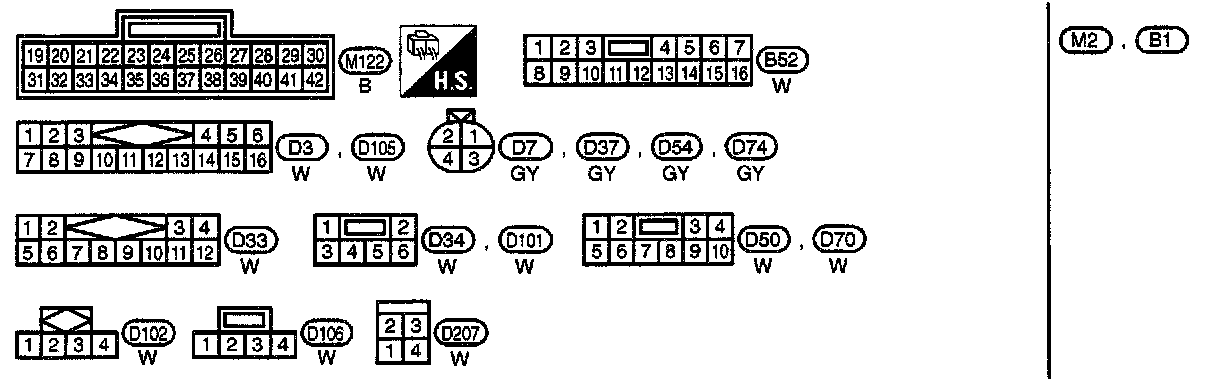

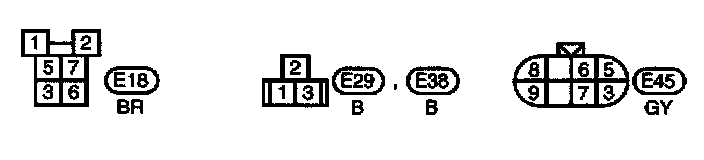

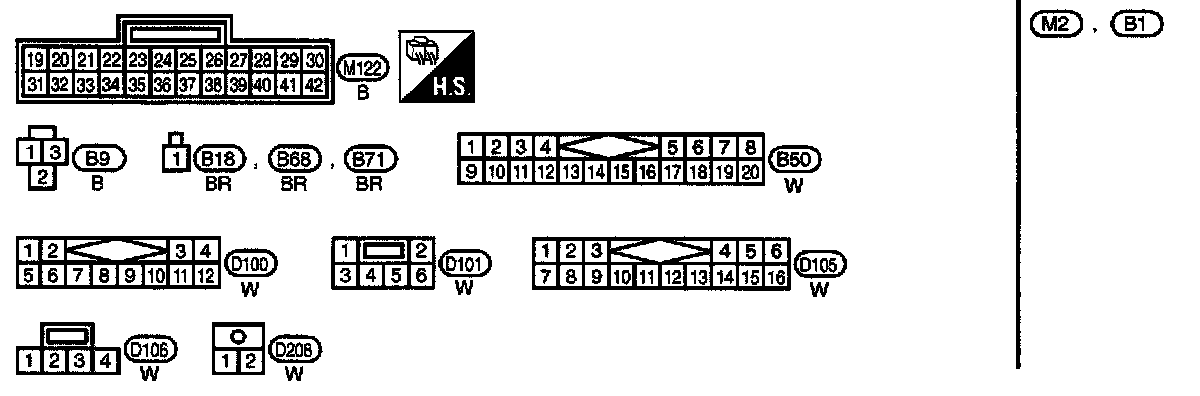

Circuit Connectors

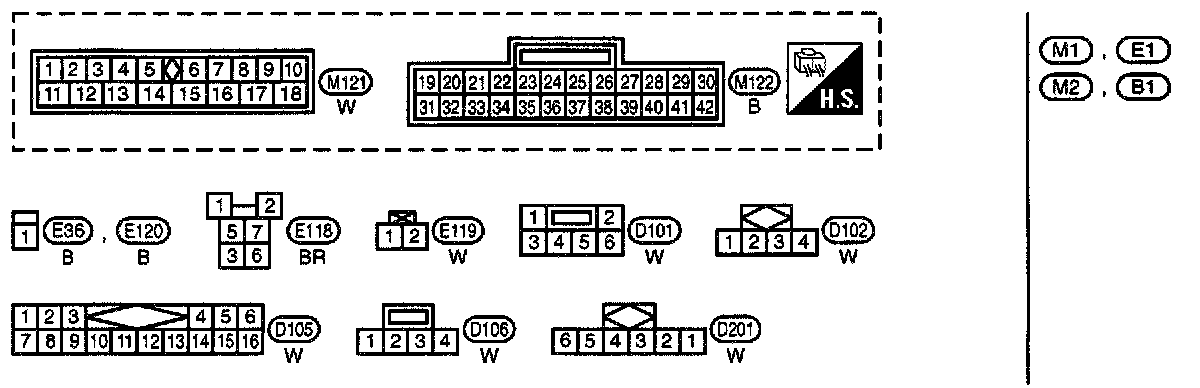

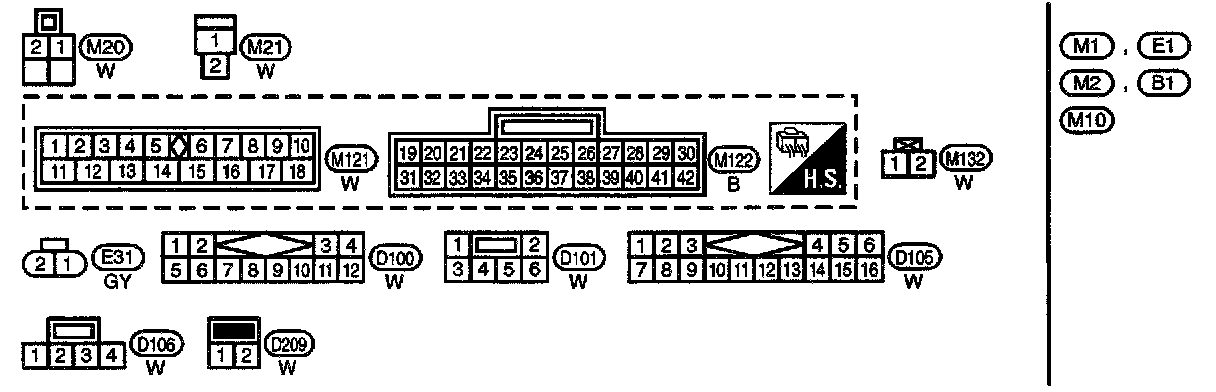

Main Harness, Engine Room, And Body Harness Connector Views:

Fuse Block J/B Connector Views:

B1, E1, M1, M2, M10 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
