ASCD Component Inspections

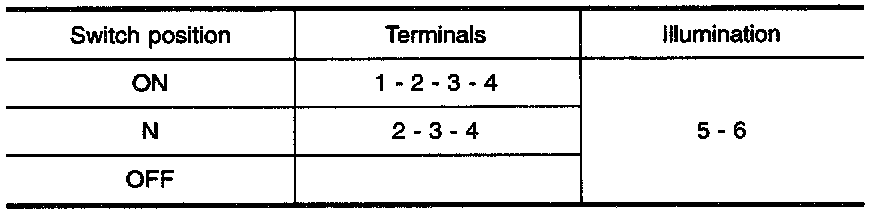

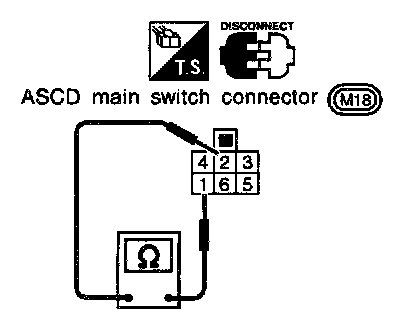

ASCD MAIN SWITCH
Check continuity between terminals by pushing switch to each position.

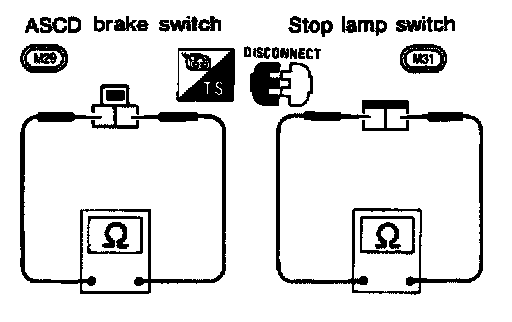

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check each switch after adjusting brake pedal.

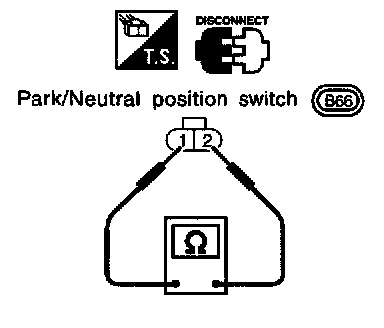

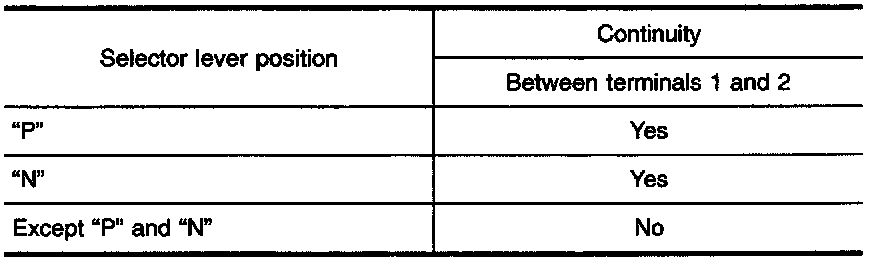

PARK/NEUTRAL POSITION SWITCH (FOR A/T MODELS)

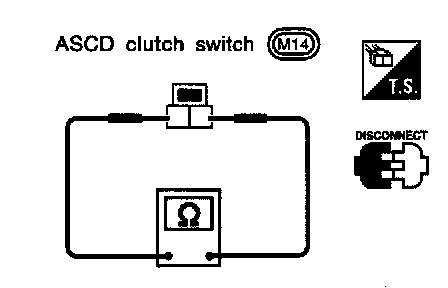

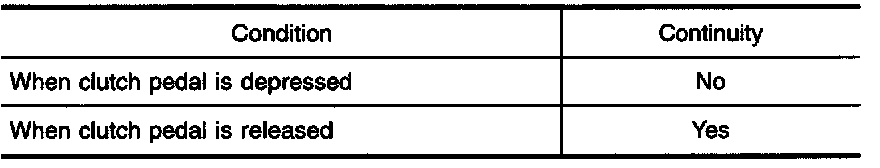

ASCD CLUTCH SWITCH (FOR M/T MODELS)
