Ground Circuit Check

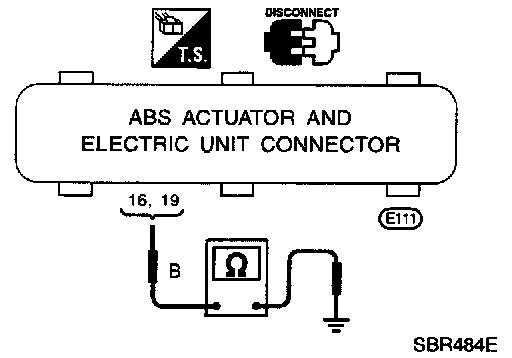

ABS ACTUATOR AND ELECTRIC UNIT GROUND





- Check continuity between ABS actuator and electric unit connector terminals and ground. Continuity should exist.
