Electrical Components

G Sensor

CAUTION: The G sensor is easily damaged if it sustains an impact. Be careful not to drop or bump it.

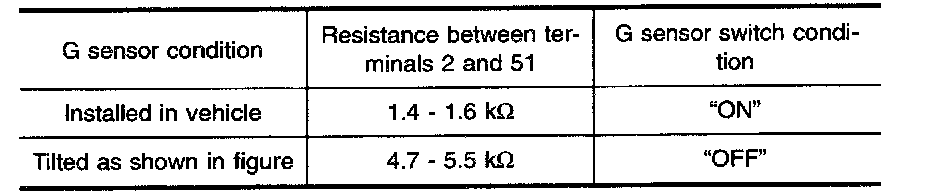

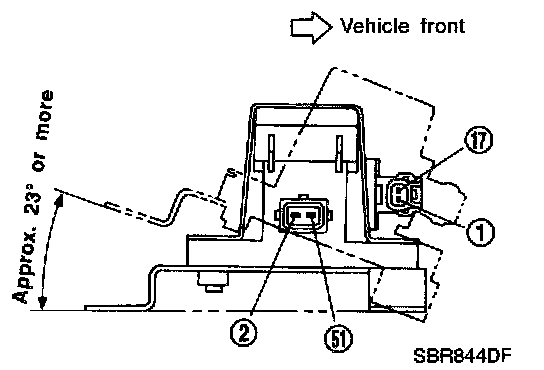

1. Measure resistance between terminals 2 and 51 of G sensor unit connector.
2. Measure resistance between terminals 1 and 17 of the G sensor unit connector.
Resistance: 70 - 124 ohms
