Drain Hoses

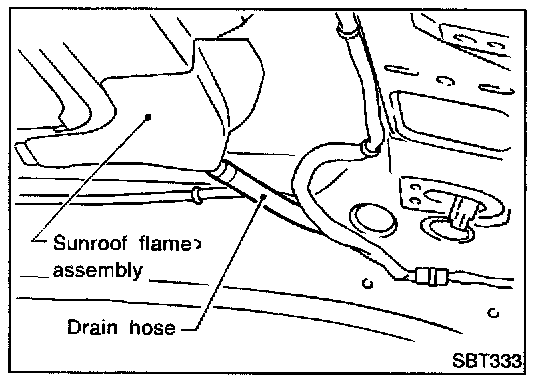

1. Remove headlining to access drain hose connections. (Refer to "Removal and Installation" in "ROOF TRIM", for detail.)

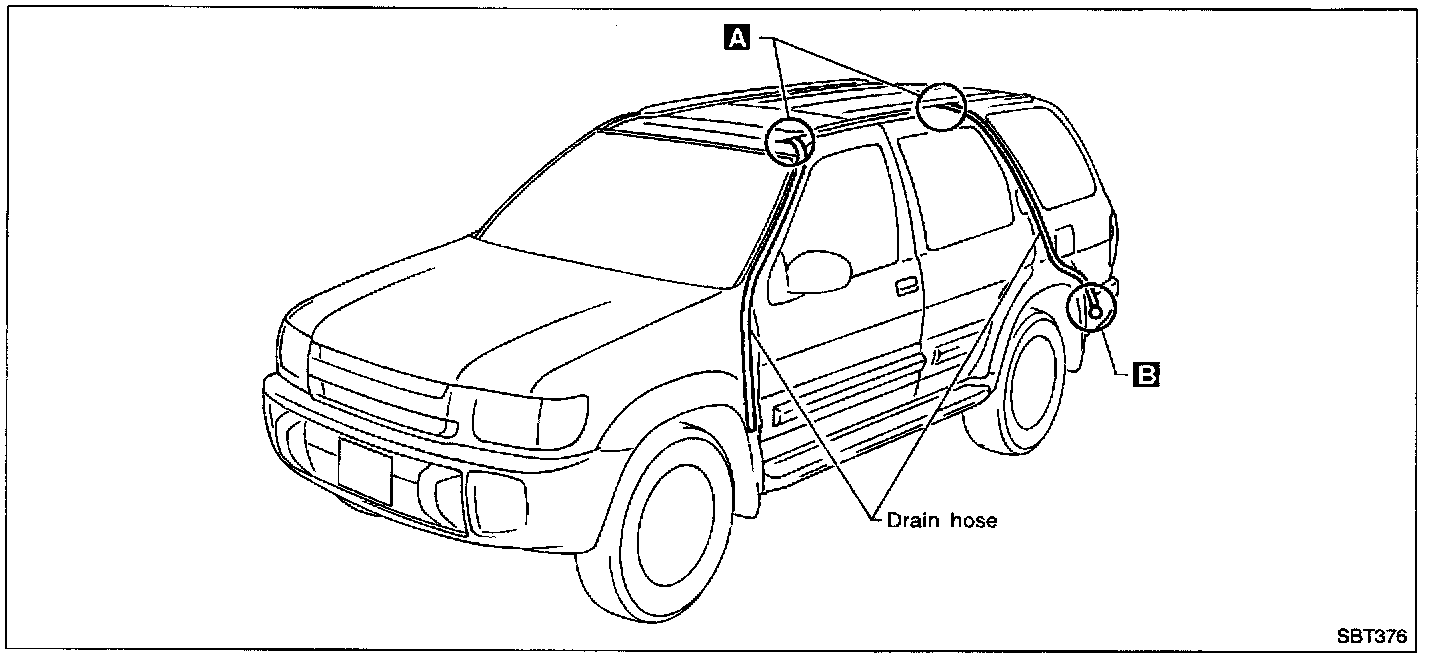

2. Check visually for proper connections, damage or deterioration. [A] (The figure shows only the front side.)

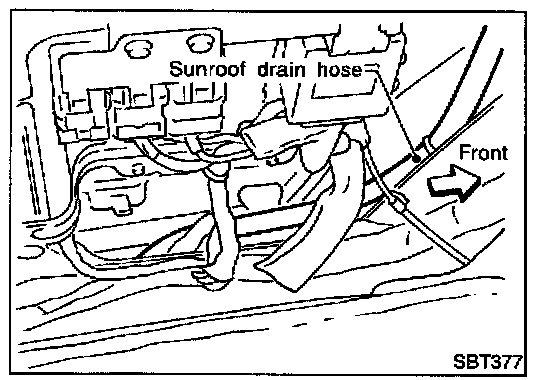

3. If leakage occurs around luggage room, remove luggage room side trim and check connecting area. Check for proper connection, damage or tear. [B]
4. Remove drain hoses and check visually for any damage, cracks, or deterioration.
5. Pour water into drain hoses and find damaged portion.
- If any damaged portion is found at each step, replace the damaged part.
