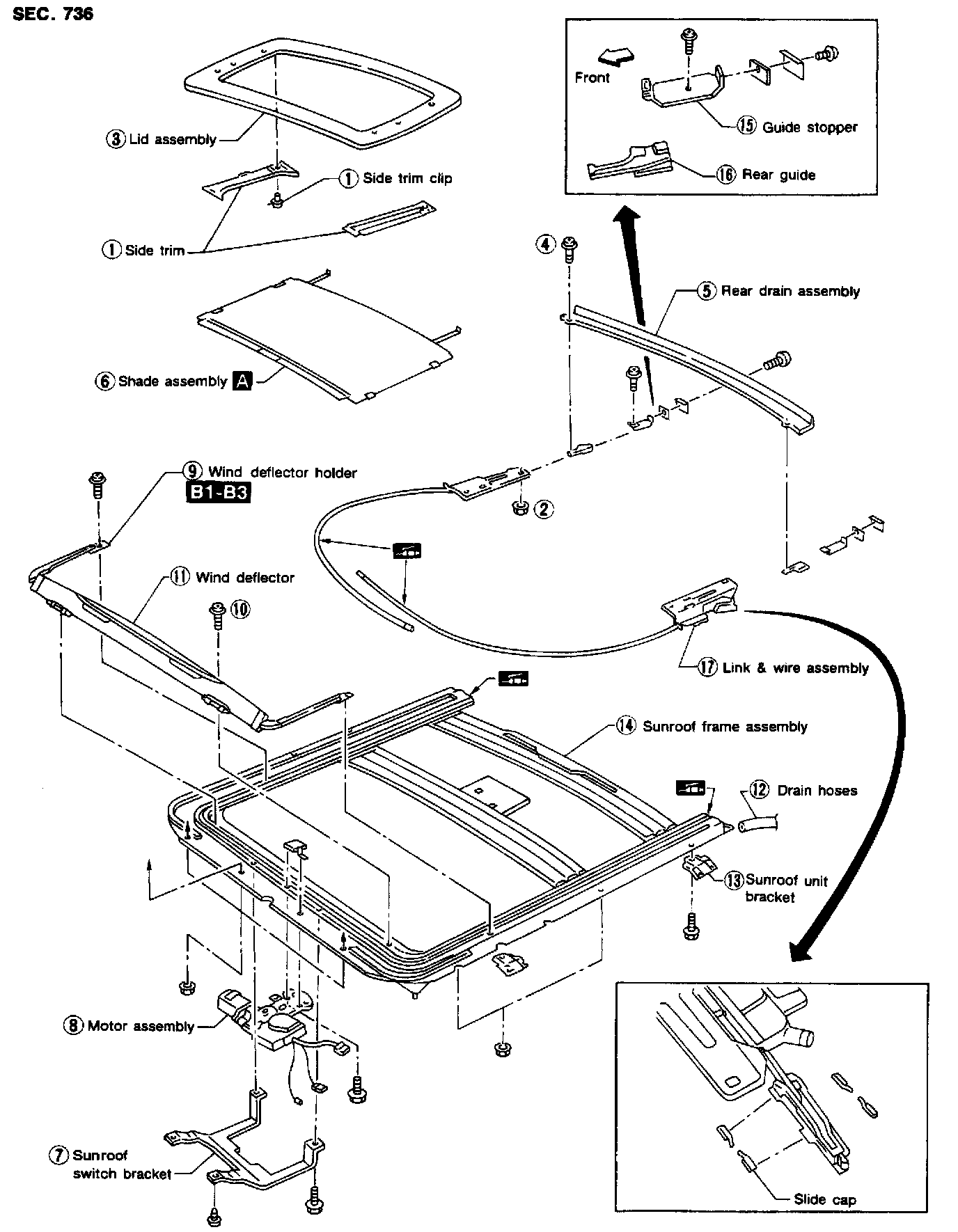

Sunroof / Moonroof: Service and Repair

- After any adjustment, check sunroof operation and lid alignment.
- Handle finisher plate and glass lid with care so not to cause damage.

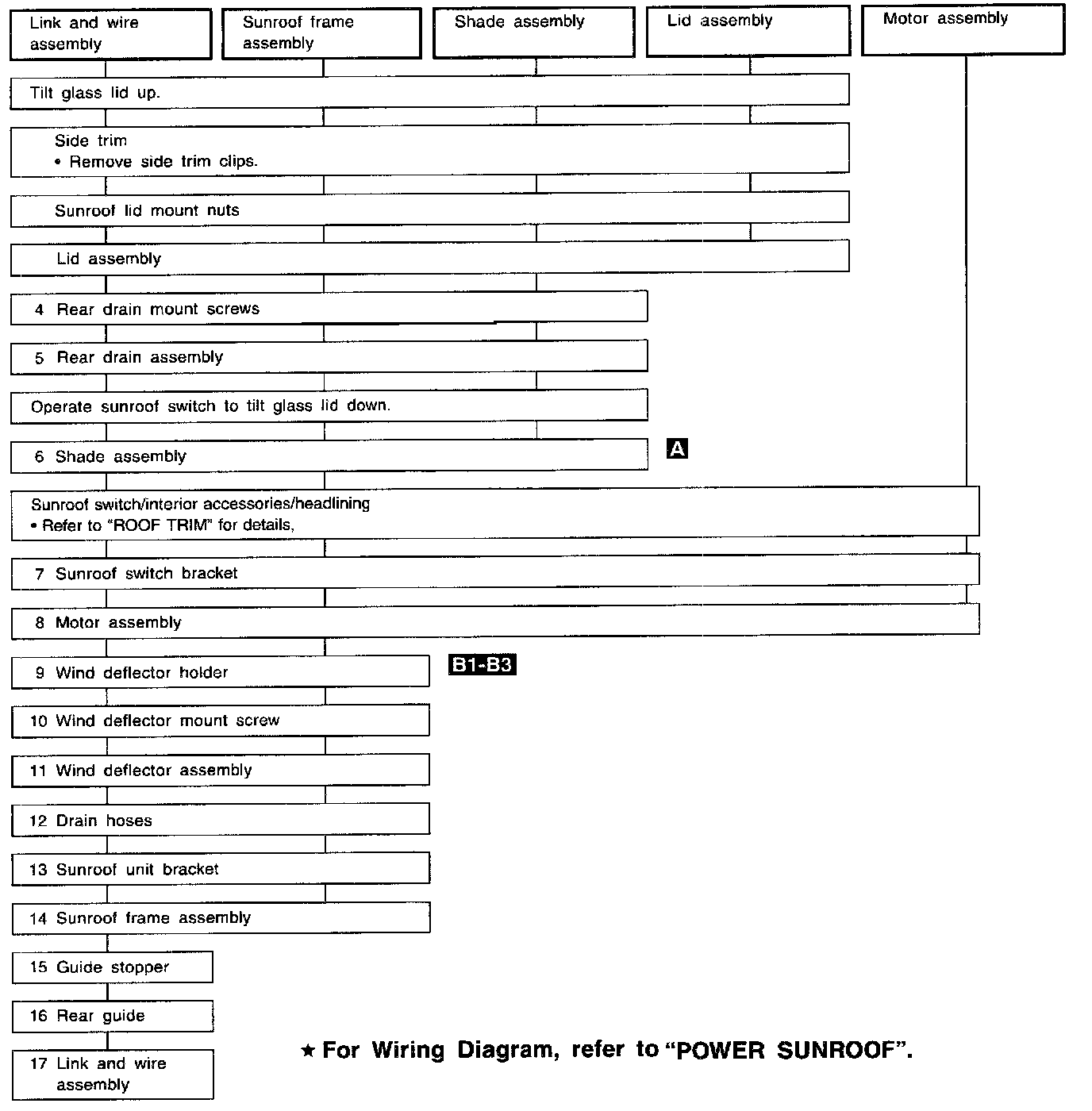

- It is desirable for easy installation to mark each point before removal.

CAUTION: Always work with a helper.




[A] Using flat-bladed screwdriver, pry shade assembly holder off rail. Then pull shade assembly forward to remove it from rail.

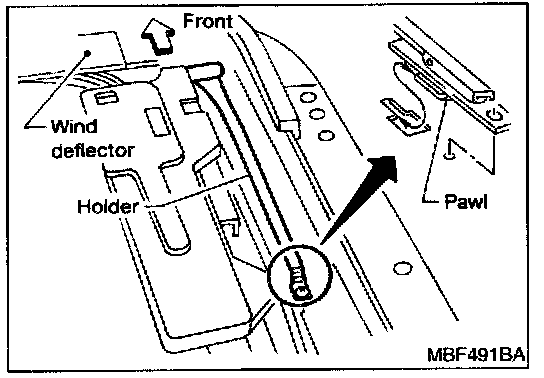

[B1] Disengage pawls from rail, then remove wind deflector holder.

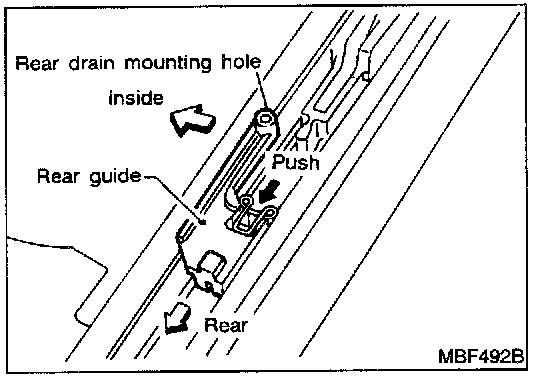

[B2] Using flat-bladed screwdriver, pry stopper spring off rail groove. Then slide rear guide backward to remove it from rail.




[B3] Remove wire and link assembly from rail while pushing link back with flat-bladed screwdriver.
