Mirrors: Service and Repair

CAUTION: Be careful not to scratch door rearview mirror body.
* For Wiring Diagram, refer "DOOR MIRROR".

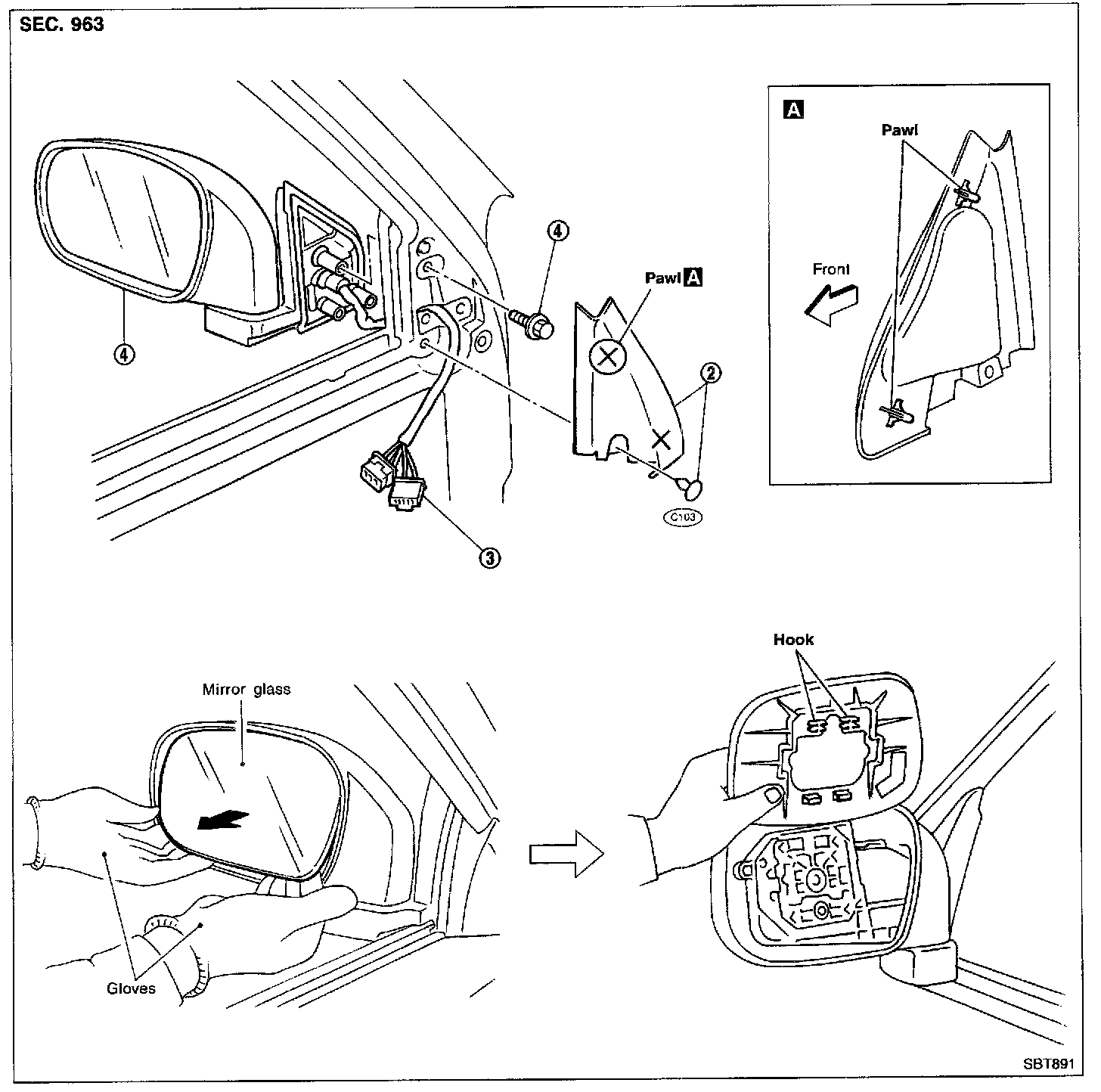

1. Remove door trim.
2. Remove clip securing inner cover from front corner of door.
3. Disconnect door mirror harness connector.
4. Remove bolts securing door mirror, then remove door mirror assembly.
