Electrical Diagrams

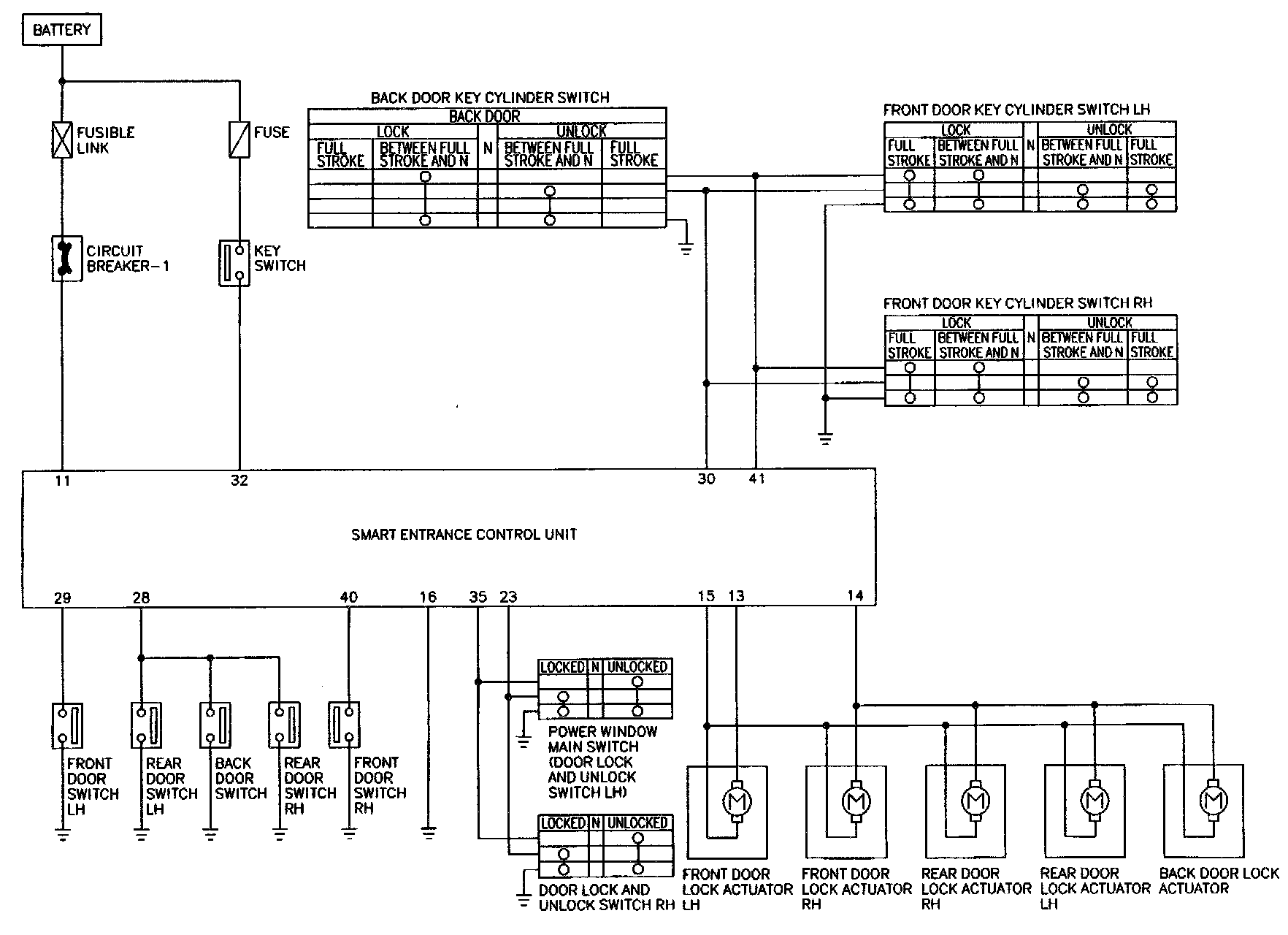

Schematic

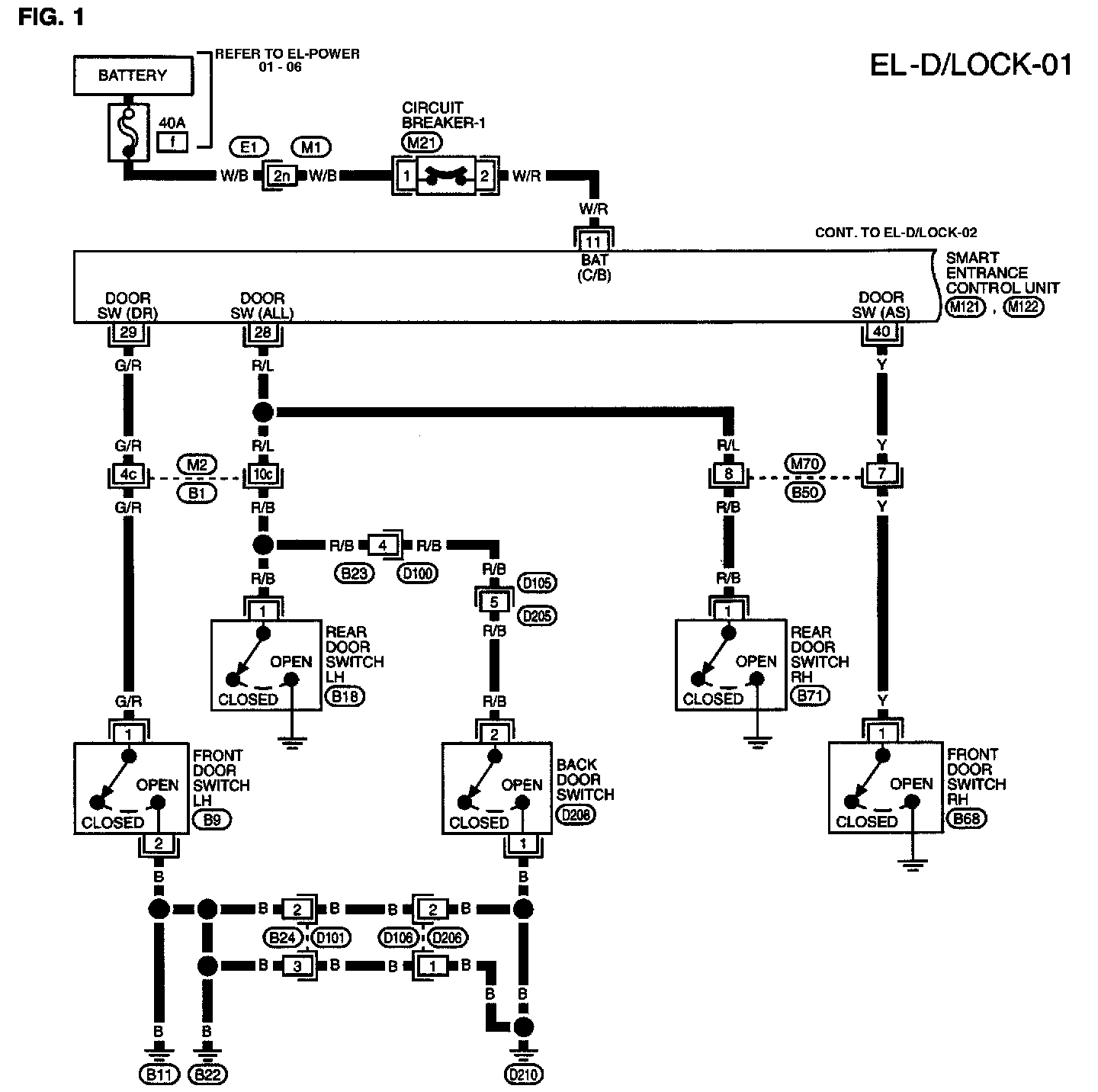

EL-D/LOCK-01:

(Part 1 of 5)
Circuit Breaker-1
Smart Entrance Control Unit
Rear Door Switch LH
Rear Door Switch RH
Front Door Switch LH
Front Door Switch RH
Back Door Switch

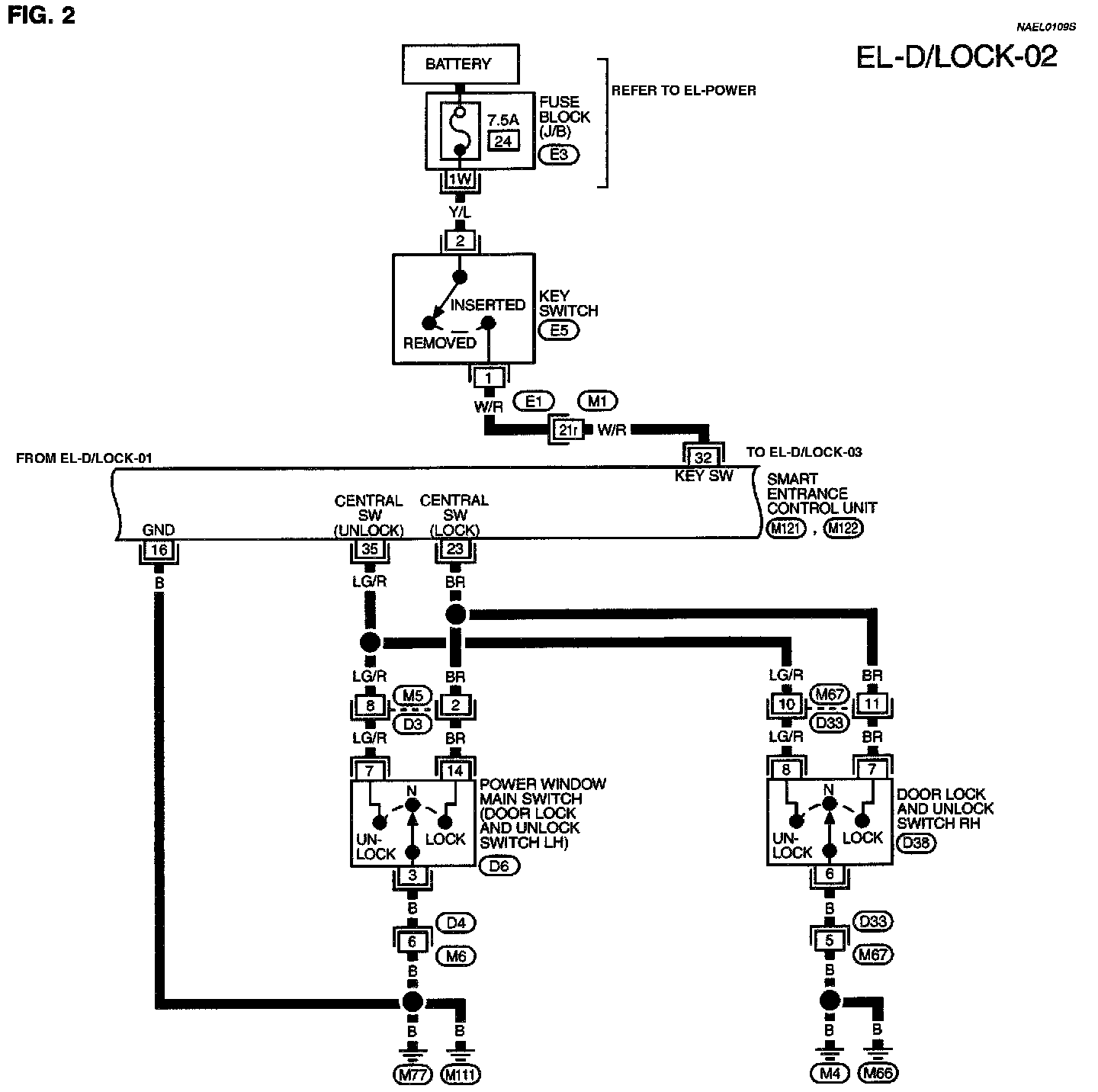

EL-D/LOCK-02:

(Part 2 of 5)
Fuse Block (J/B)
Key Switch
Smart Entrance Control Unit
Power Window Main Switch (Door Lock And Unlock Switch LH)
Door Lock And Unlock Switch RH

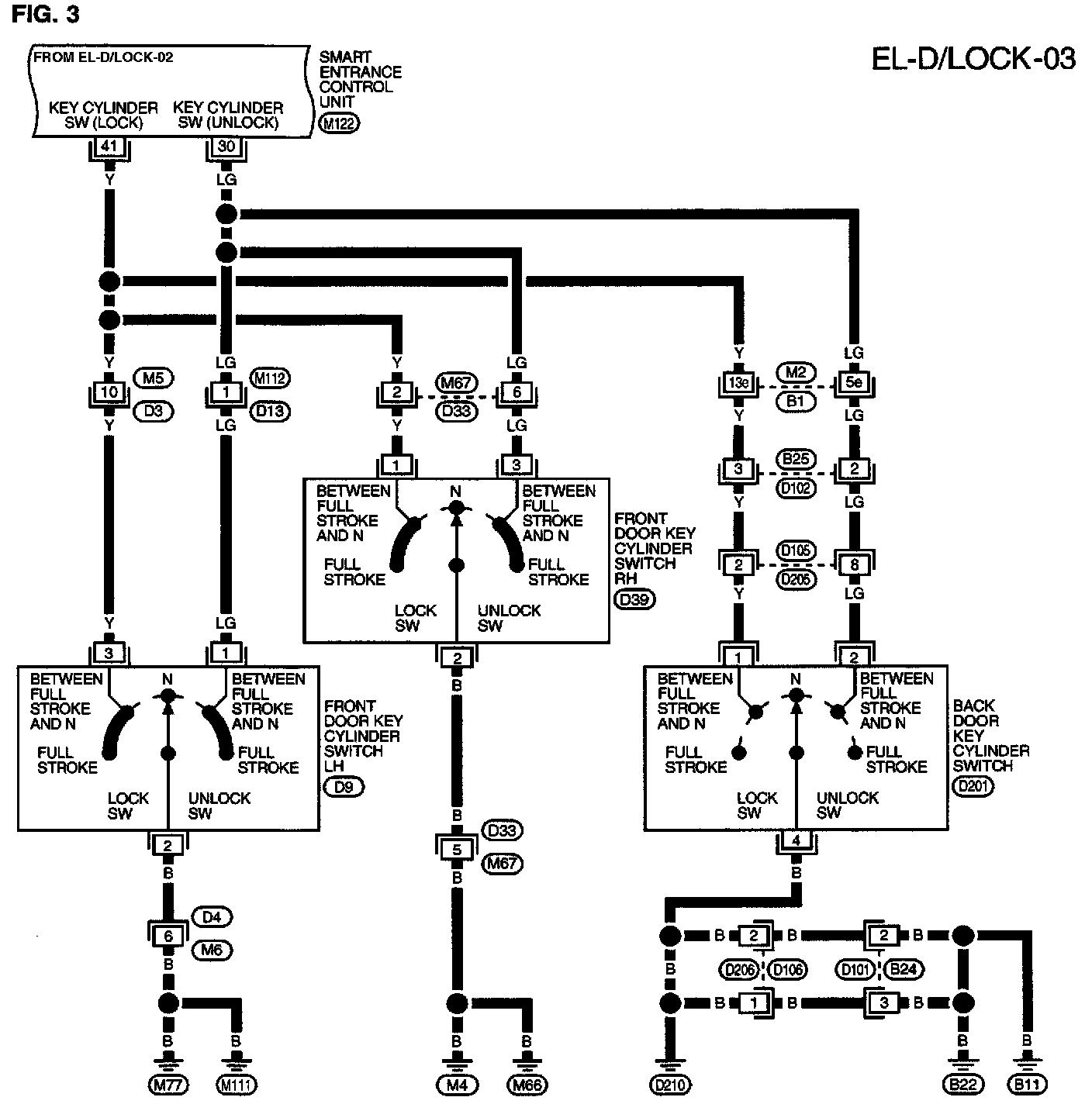

EL-D/LOCK-03:

(Part 3 of 5)
Smart Entrance Control Unit
Front Door Key Cylinder Switch RH
Front Door Key Cylinder Switch LH
Back Door Key Cylinder Switch

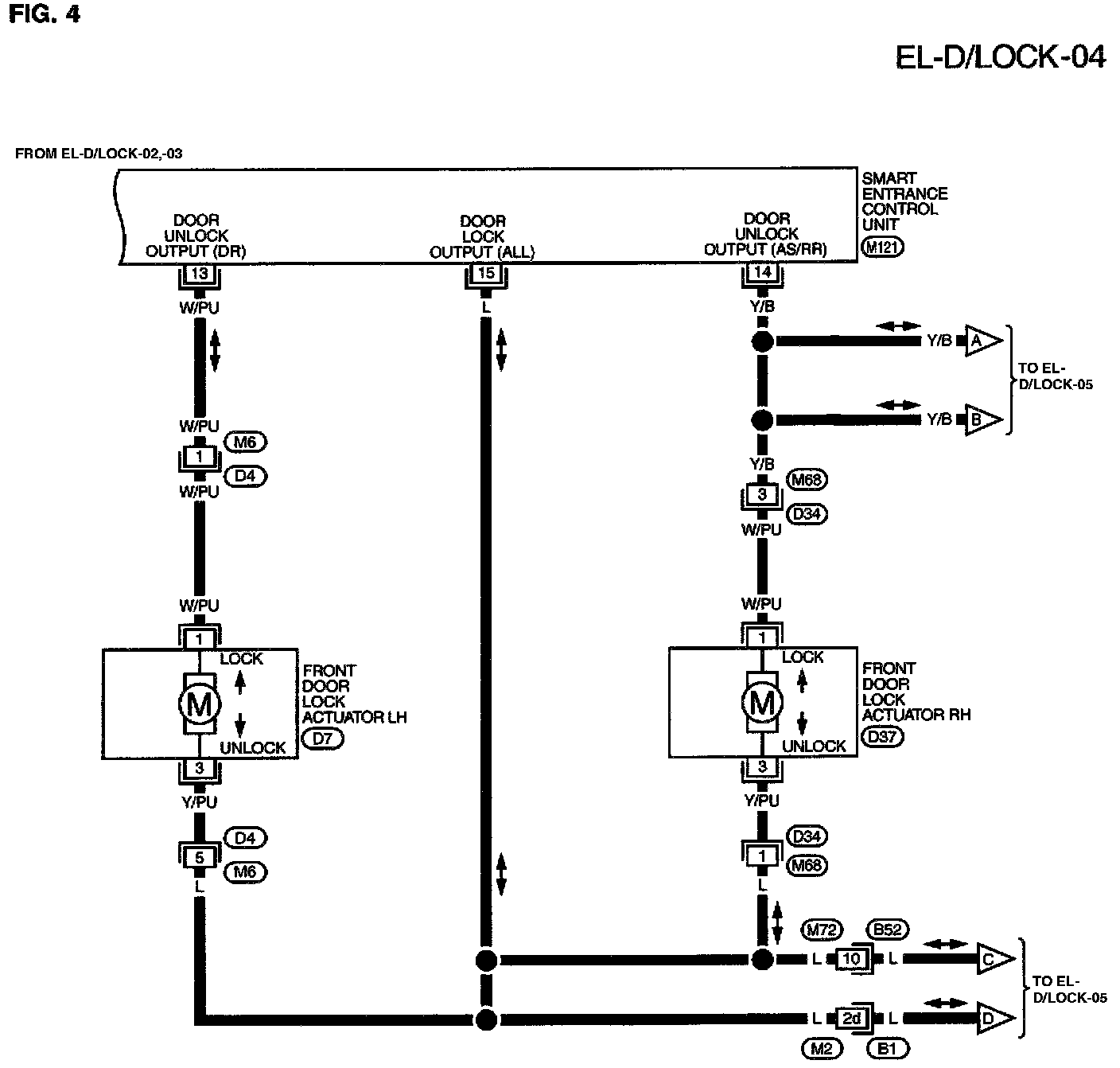

EL-D/LOCK-04:

(Part 4 of 5)
Smart Entrance Control Unit
Front Door Lock Actuator LH
Front Door Lock Actuator RH

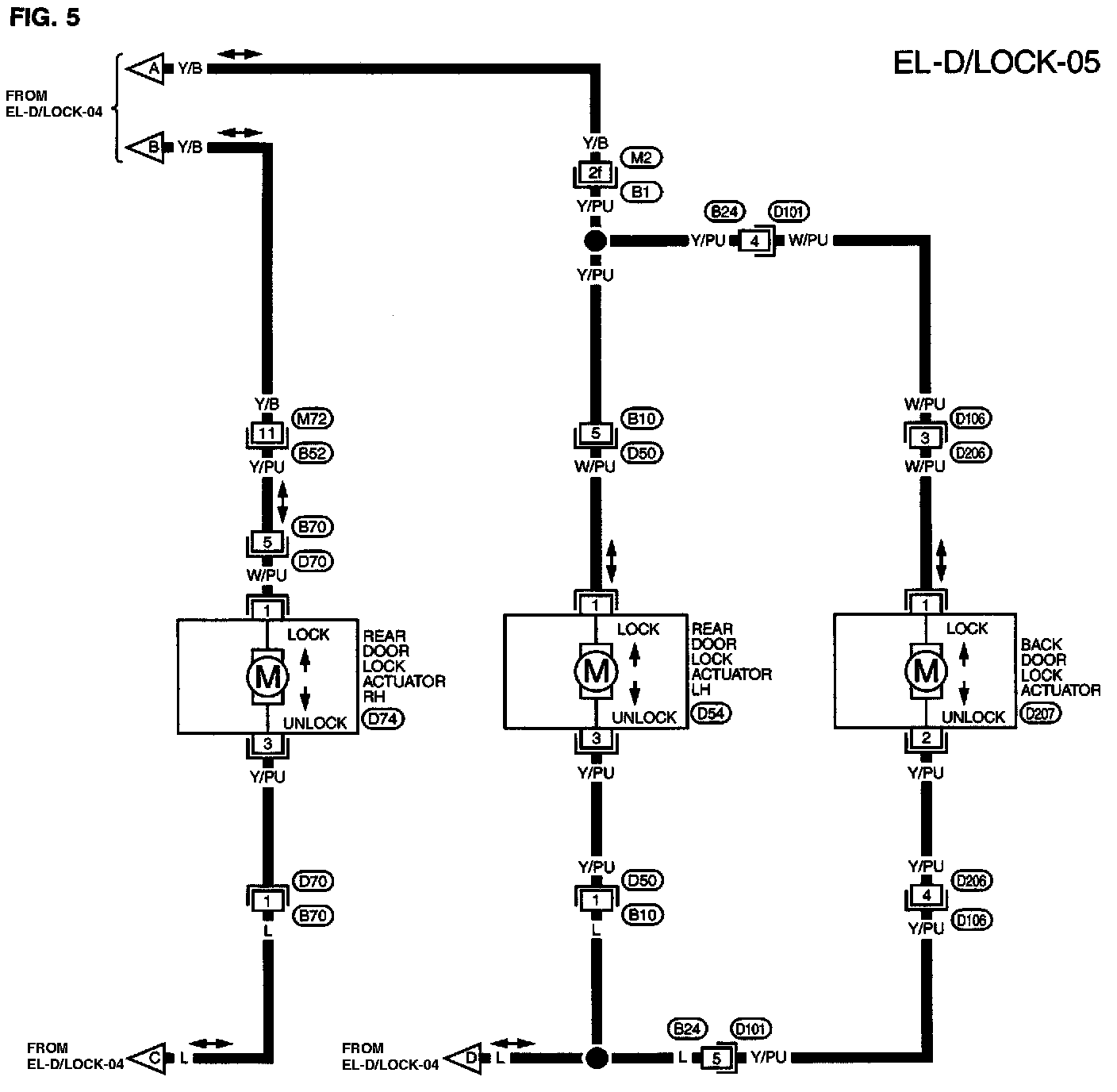

EL-D/LOCK-05:

(Part 5 of 5)
Rear Door Lock Actuator RH
Rear Door Lock Actuator LH
Back Door Lock Actuator

Circuit Diagrams

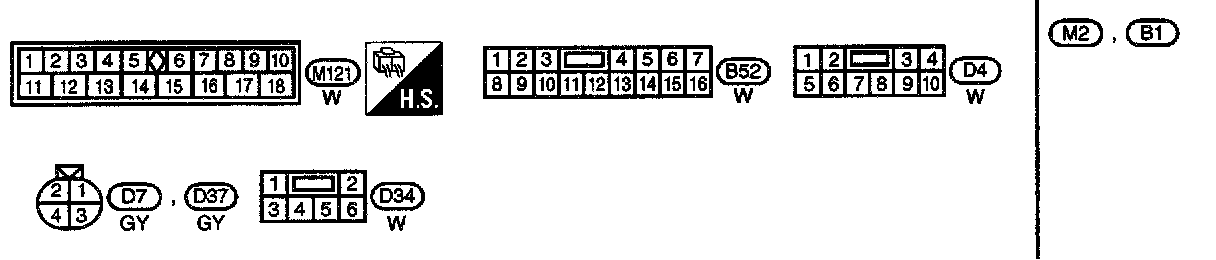

Circuit Connectors

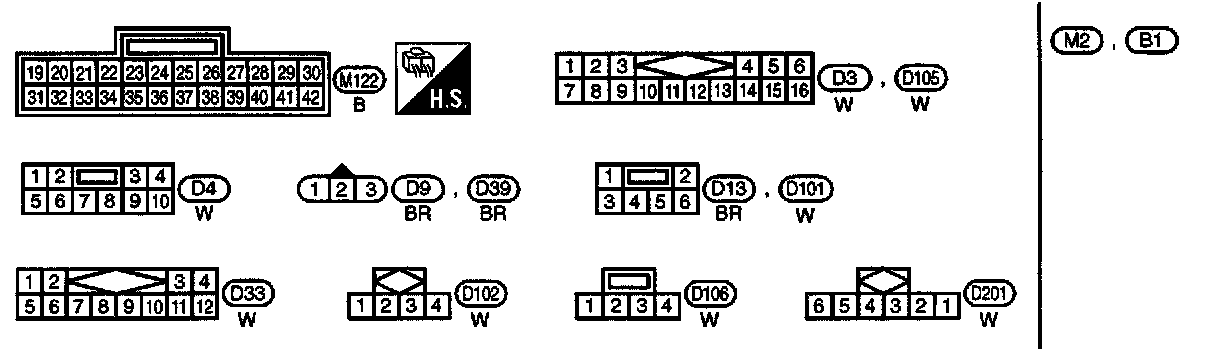

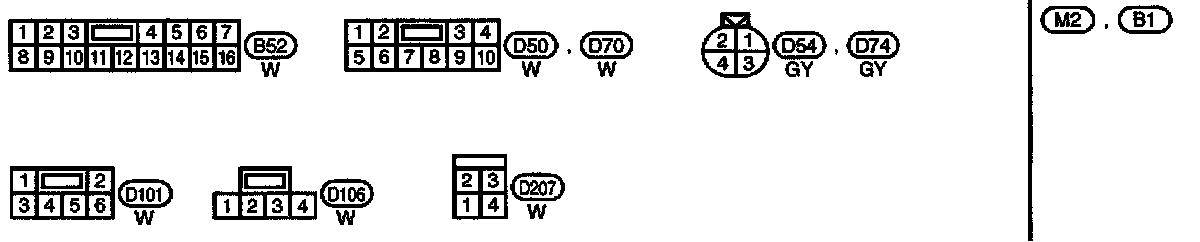

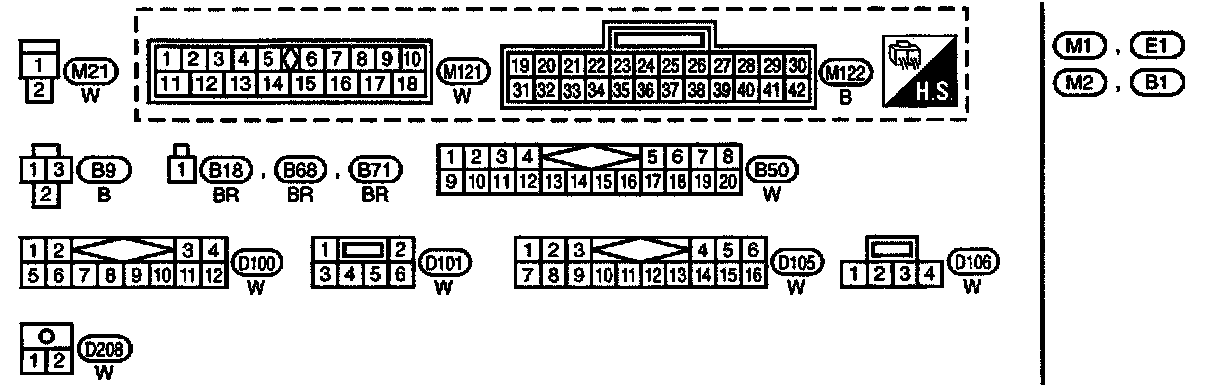

Main Harness, Engine Room, And Body Harness Connector Views:

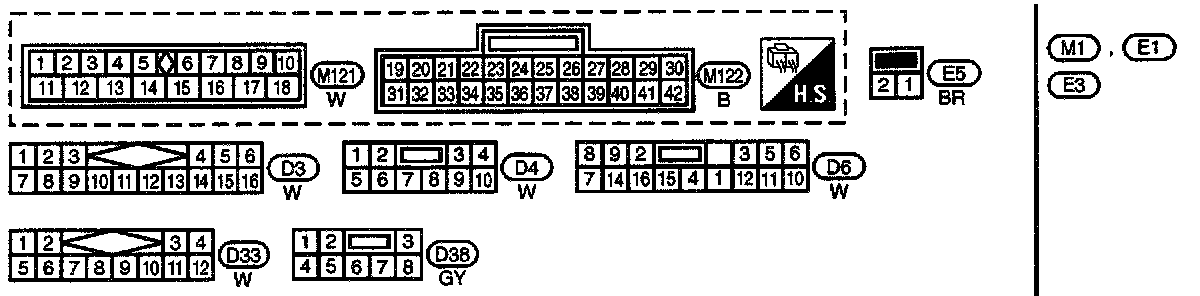

Fuse Block J/B Connector Views:

B1, E1, E3, M1, M2, M10 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
