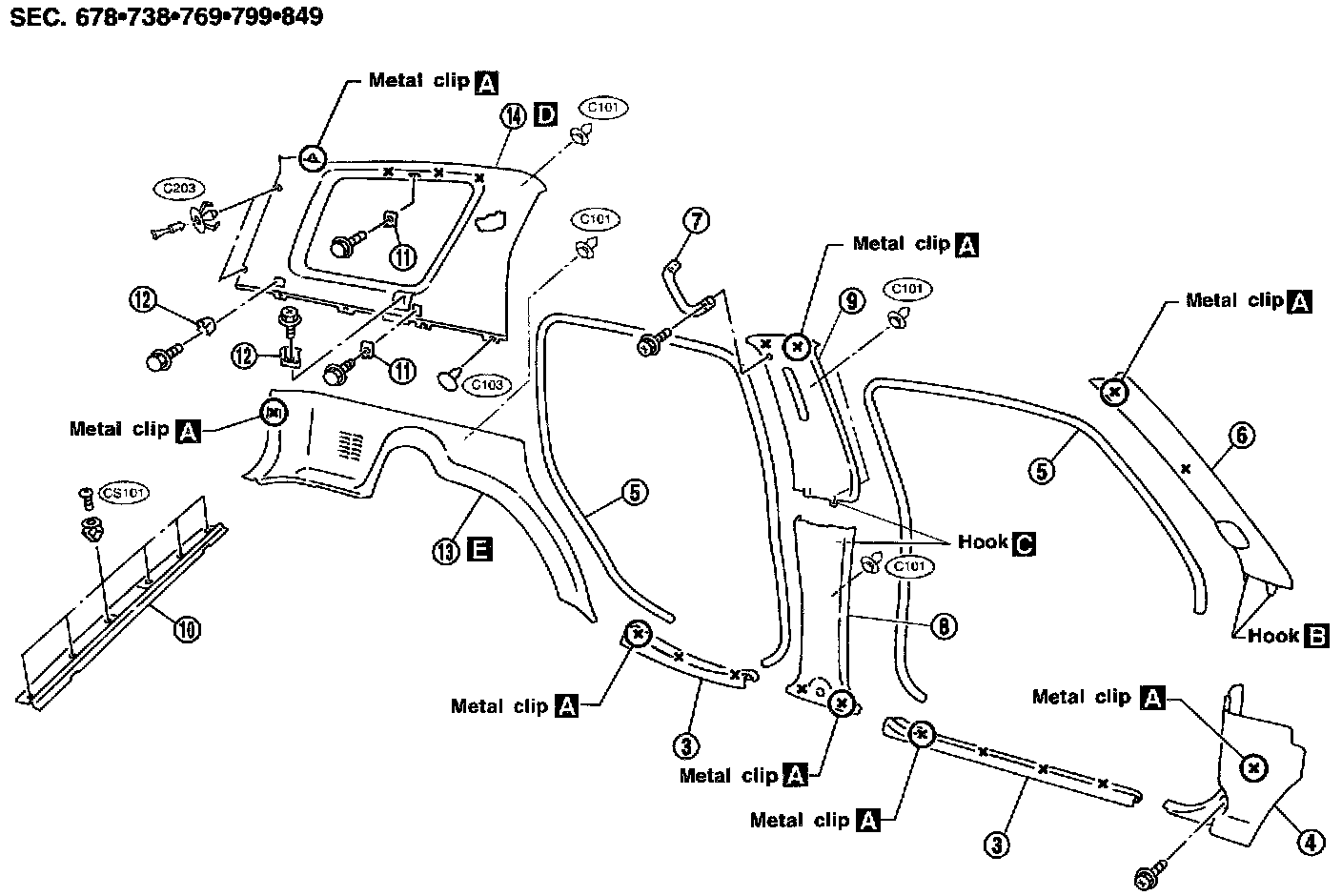

Side and Floor Trim

Part 1 Of 2:

Part 2 Of 2:

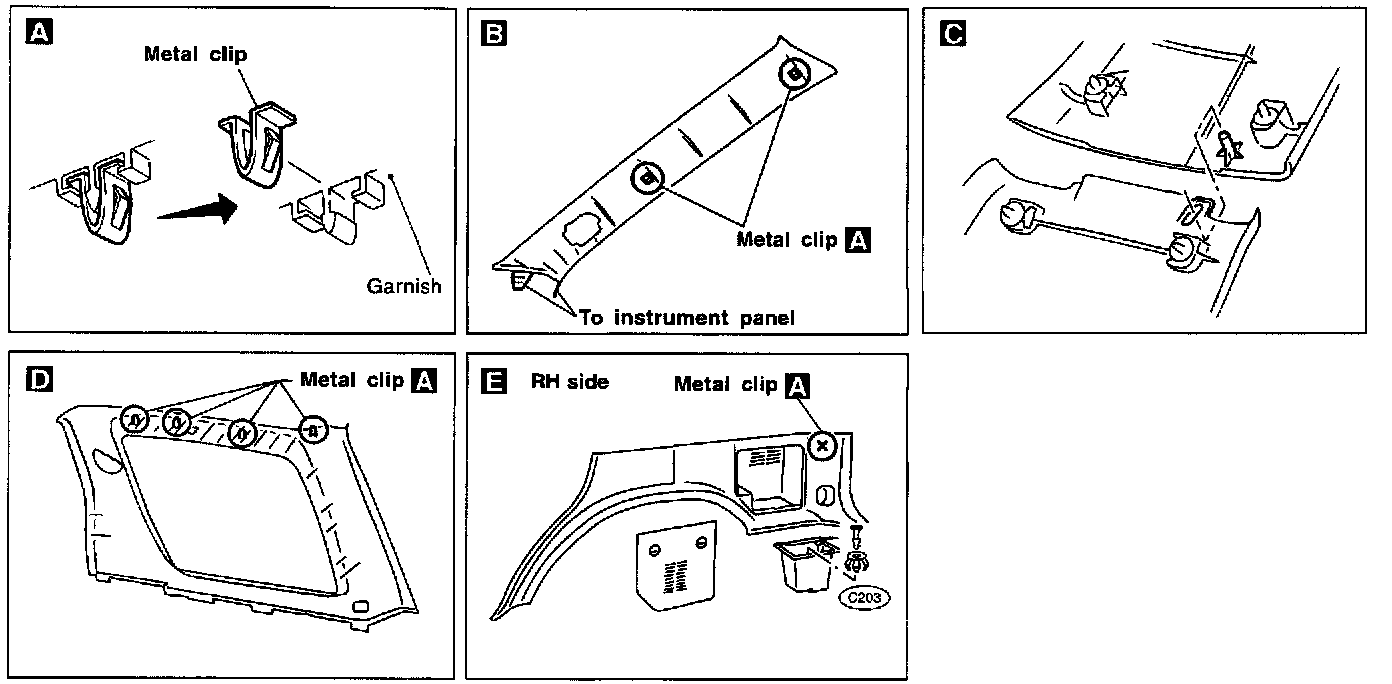

CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

1. Remove front and rear seats.
2. Remove front and rear seat belts.
3. Remove front and rear kicking plates.
4. Remove dash side lower finishers.
5. Remove front and rear body side welts.
6. Remove front pillar garnishes. [B]
7. Remove center assist grips.
8. Remove center pillar lower garnishes. [C]
9. Remove center pillar upper garnishes. [C]
10. Remove rear gate kicking plate.
11. Remove rear net hooks.
12. Remove tonneau cover assembly and rear parcel holder.
13. Remove rear side lower garnishes. [E]
14. Remove rear side upper garnishes. [D]
