Dashboard / Instrument Panel: Service and Repair

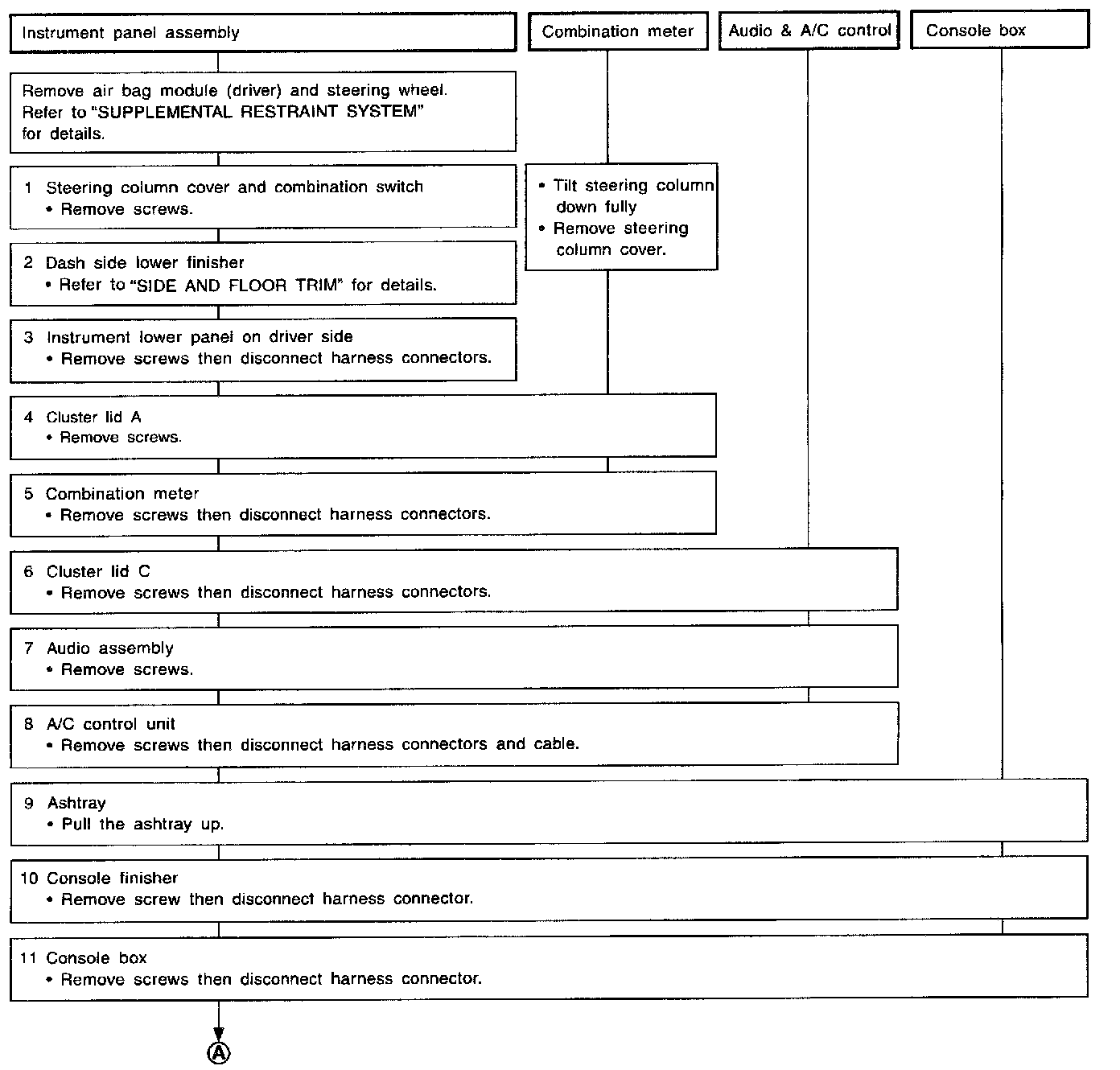

Part 1 Of 2:

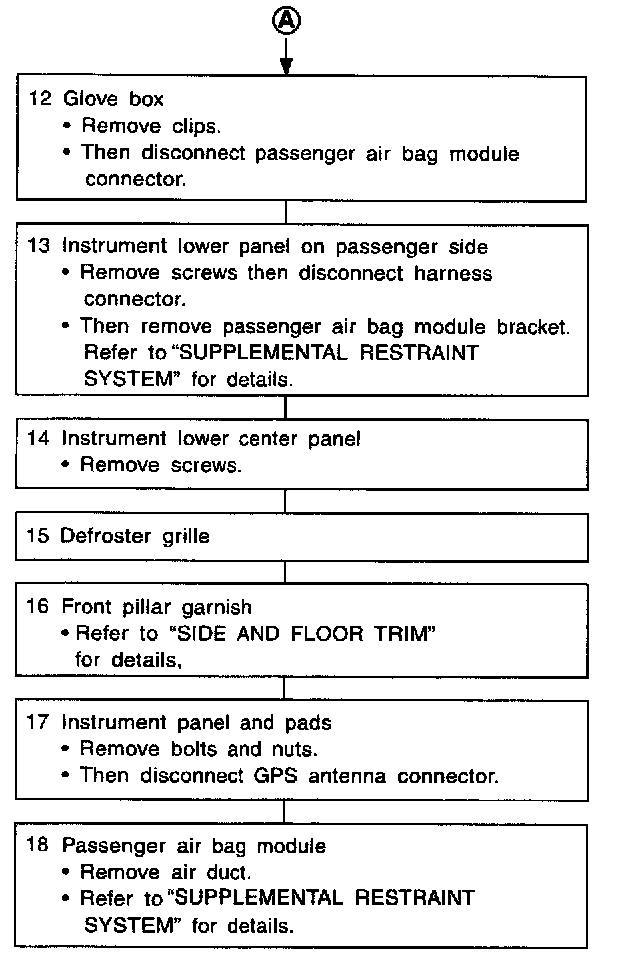

Part 2 Of 2:

Part 1 Of 2:

Part 2 Of 2:

CAUTION:
- Disconnect both battery cables in advance.
- Disconnect air bag system line in advance.
- Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
- Be careful not to scratch pad and other parts.
