Vehicle Security (Theft Warning) System

PRELIMINARY CHECK

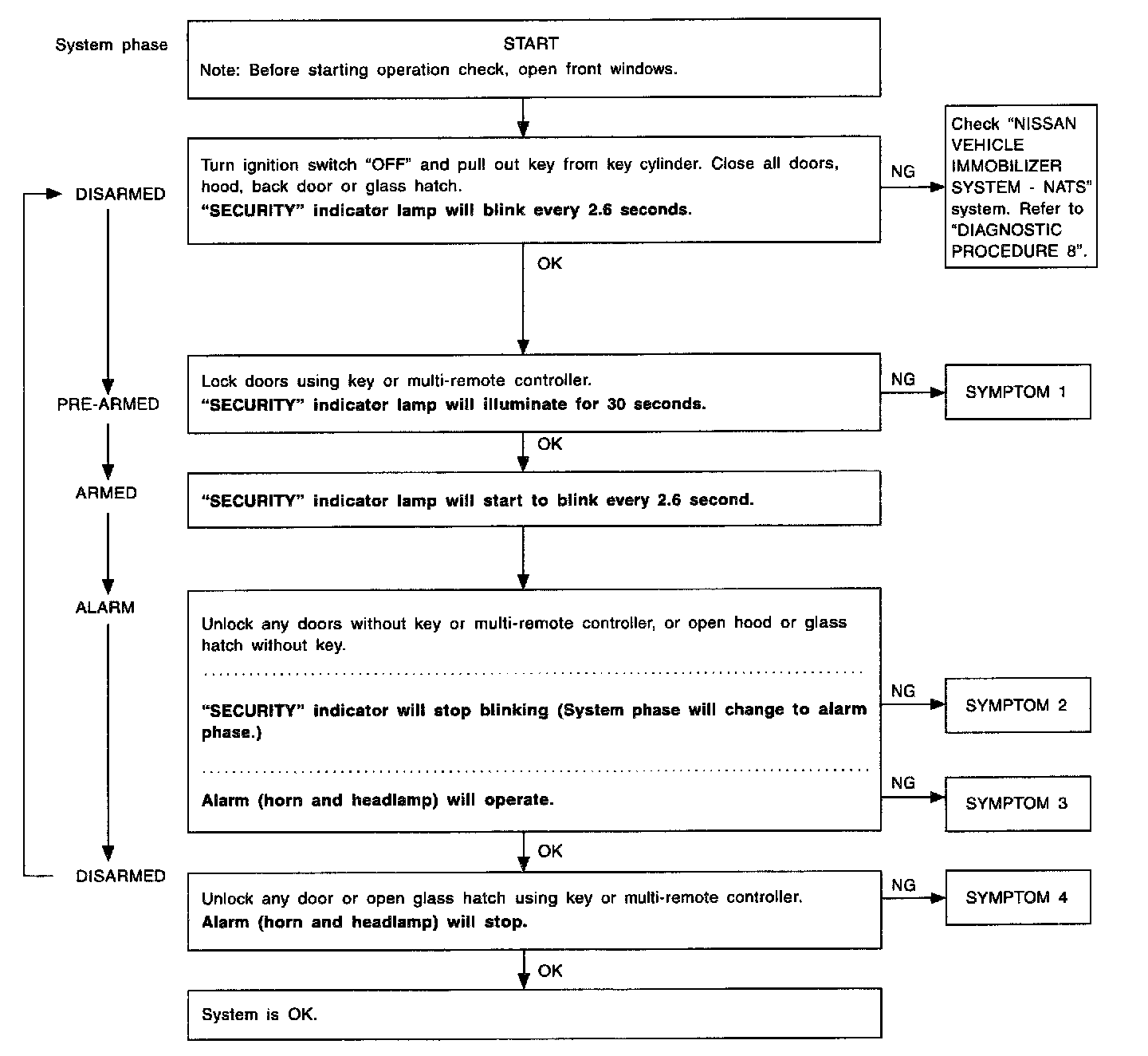

The system operation is canceled by turning ignition switch to "ACC" at any step between START and ARMED in the flow chart.
After performing preliminary check, go to symptom chart.

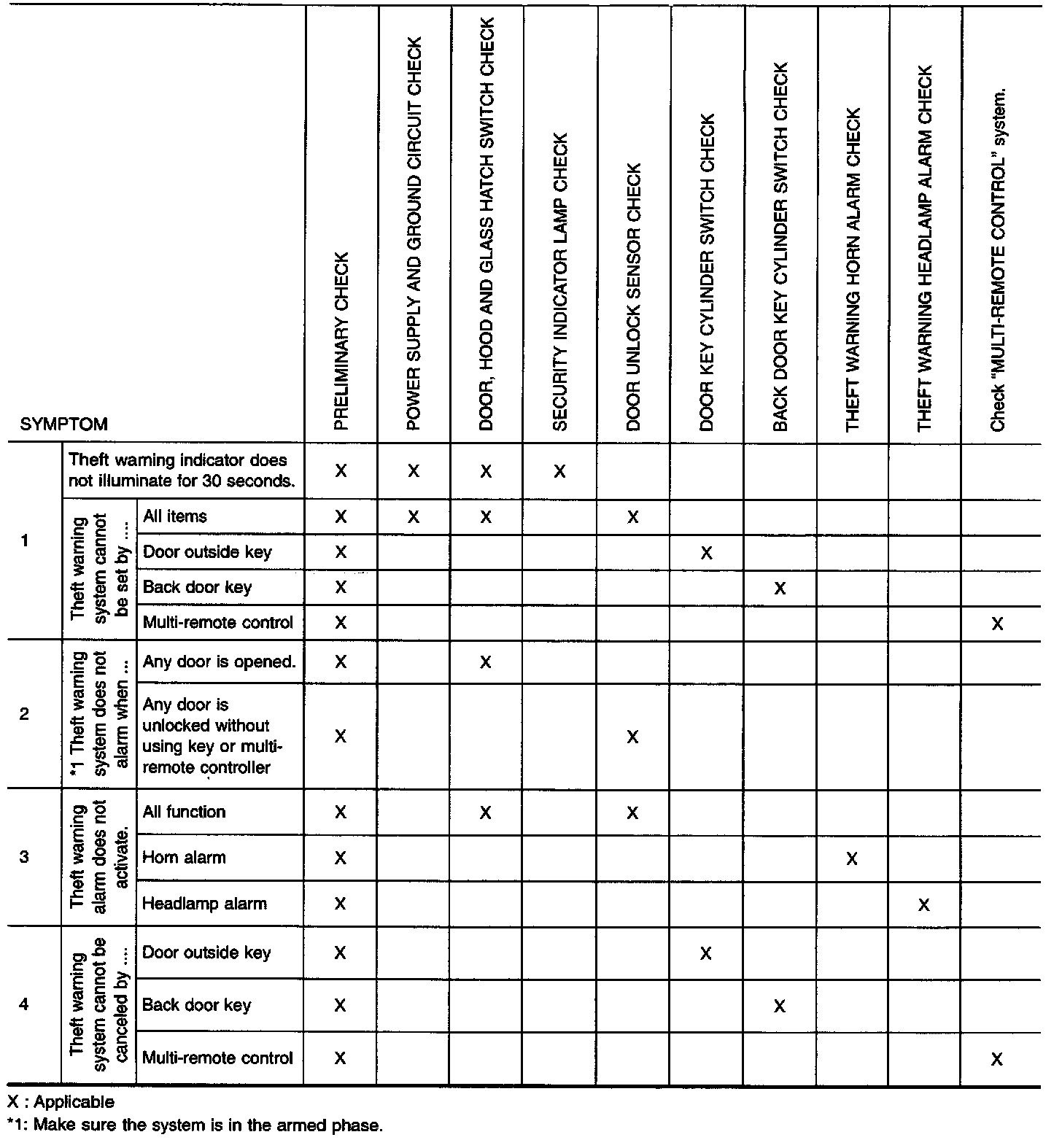

SYMPTOM CHART
Before starting trouble diagnoses , perform preliminary check.
Symptom numbers in the symptom chart correspond with those of preliminary check.

POWER SUPPLY AND GROUND CIRCUIT CHECK

Power Supply Circuit Check







Ground Circuit Check

DOOR, HOOD AND GLASS HATCH SWITCH CHECK

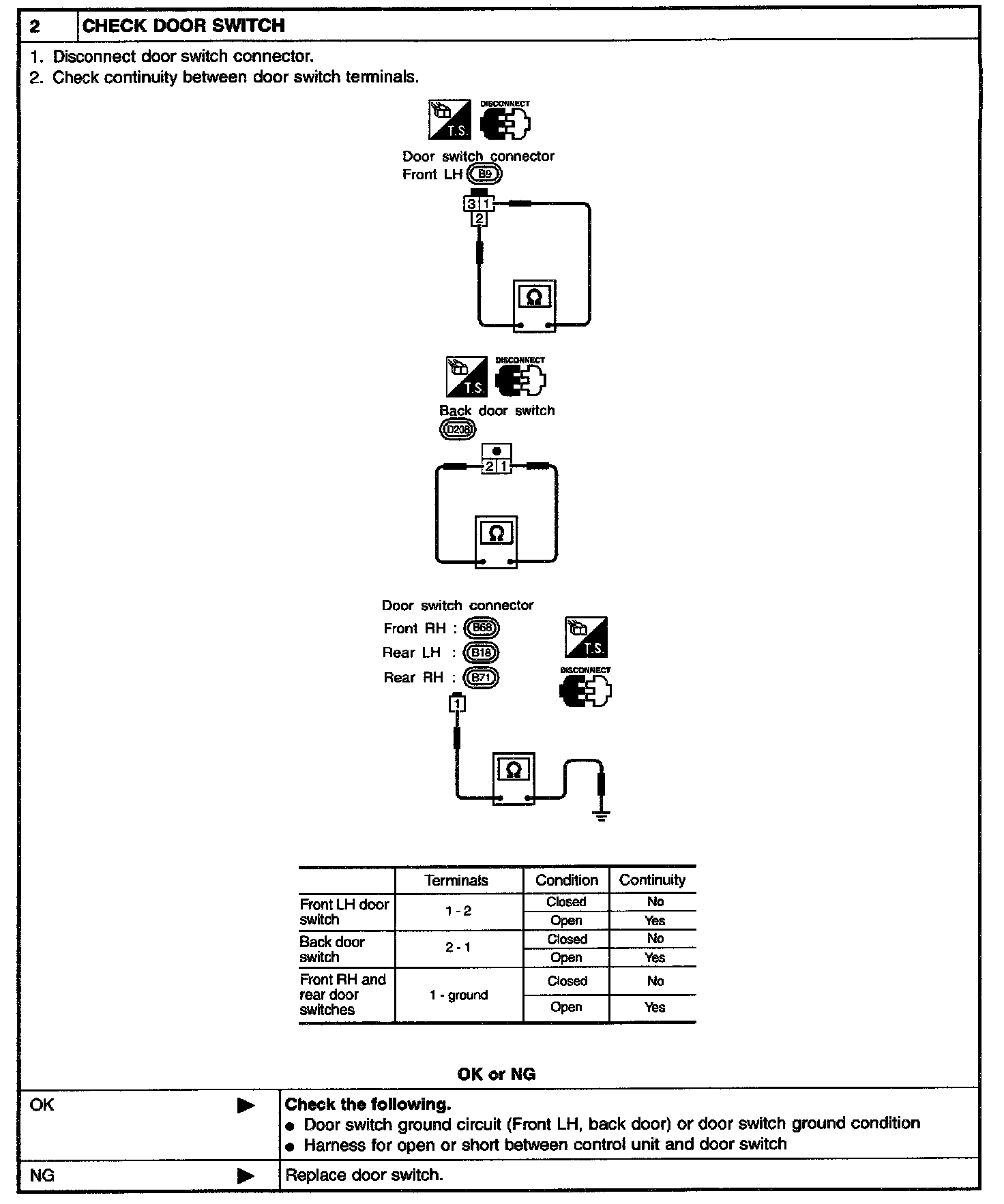

Door Switch Check

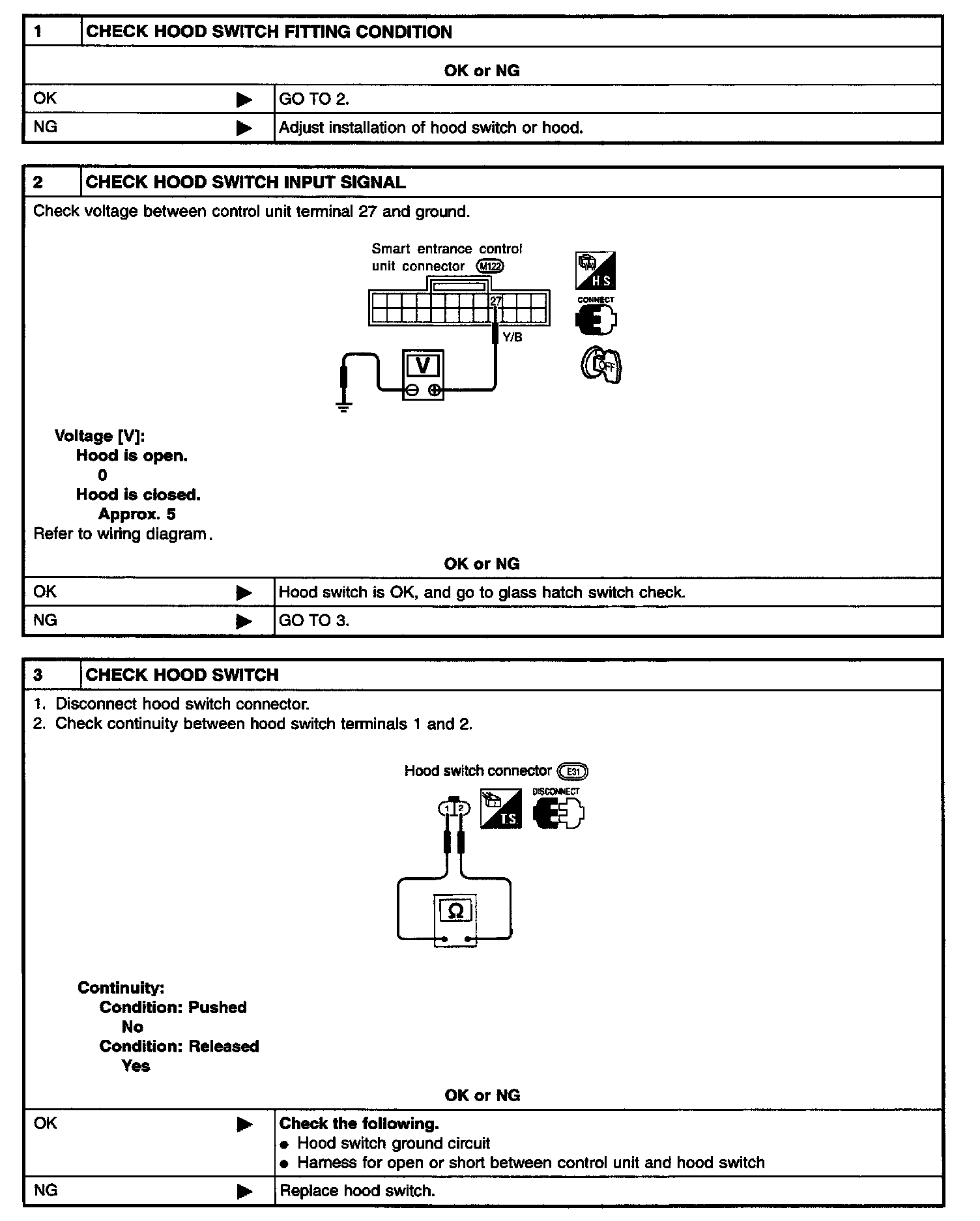

Hood Switch Check

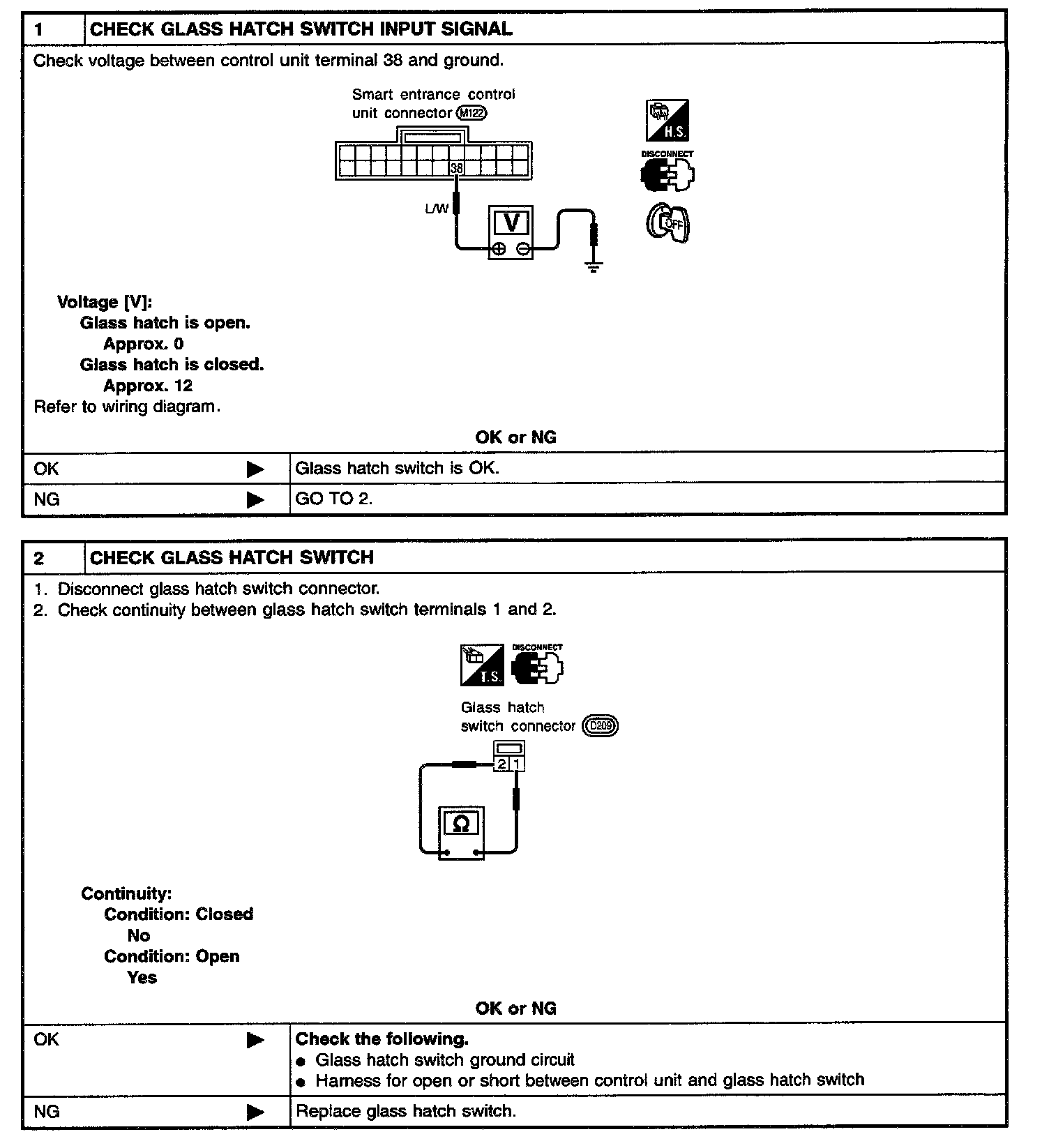

Glass Hatch Switch Check




SECURITY INDICATOR LAMP CHECK







DOOR UNLOCK SENSOR CHECK







FRONT DOOR KEY CYLINDER SWITCH CHECK







BACK DOOR KEY CYLINDER SWITCH CHECK

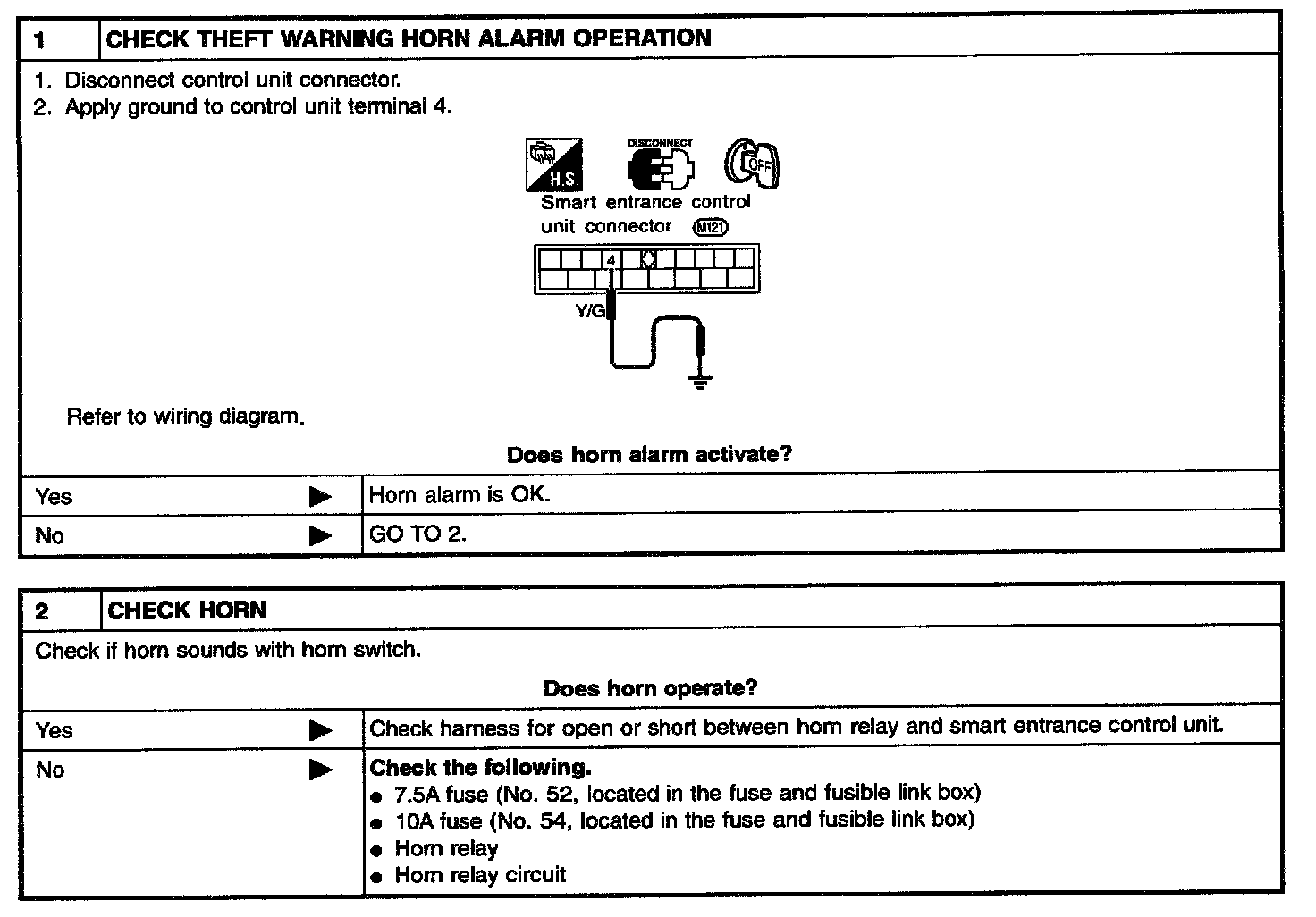

THEFT WARNING HORN ALARM CHECK

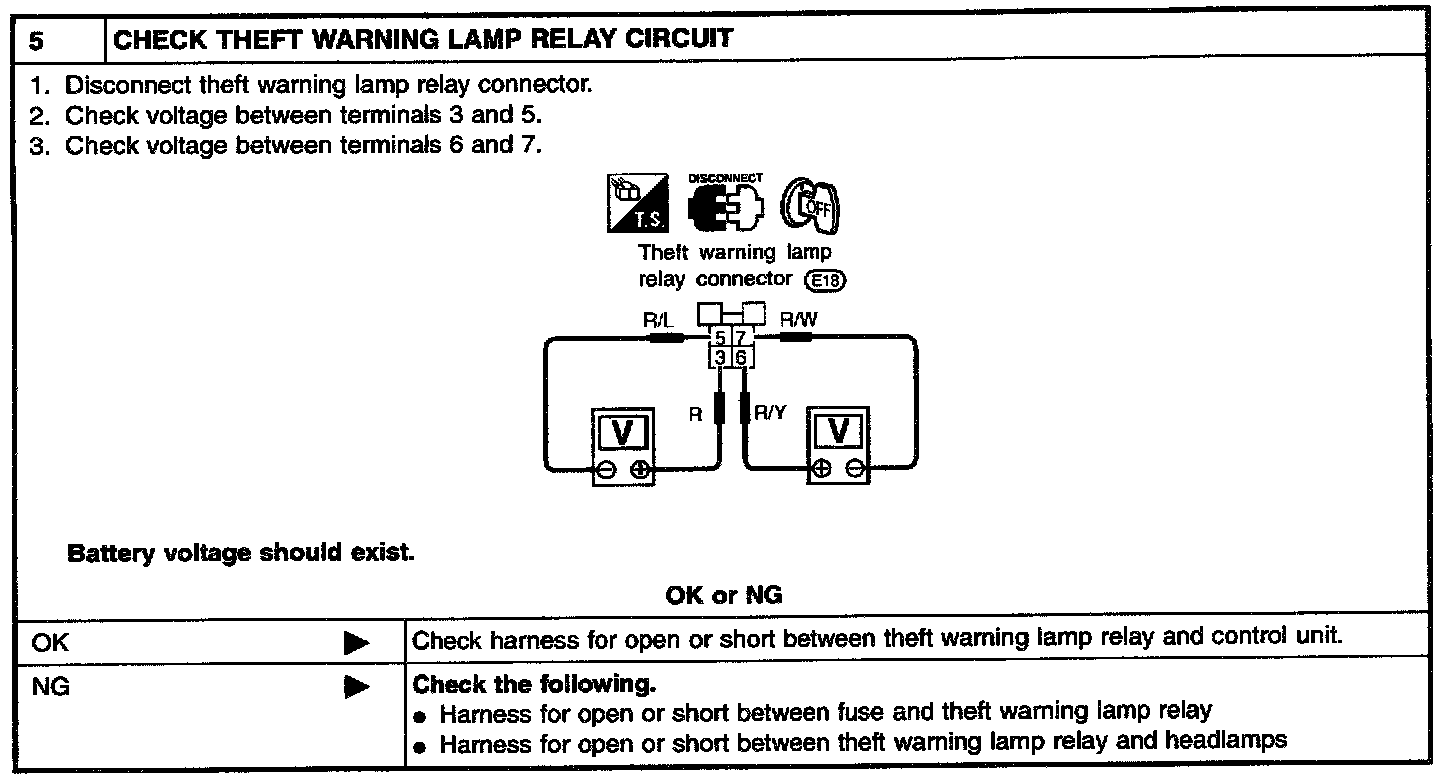

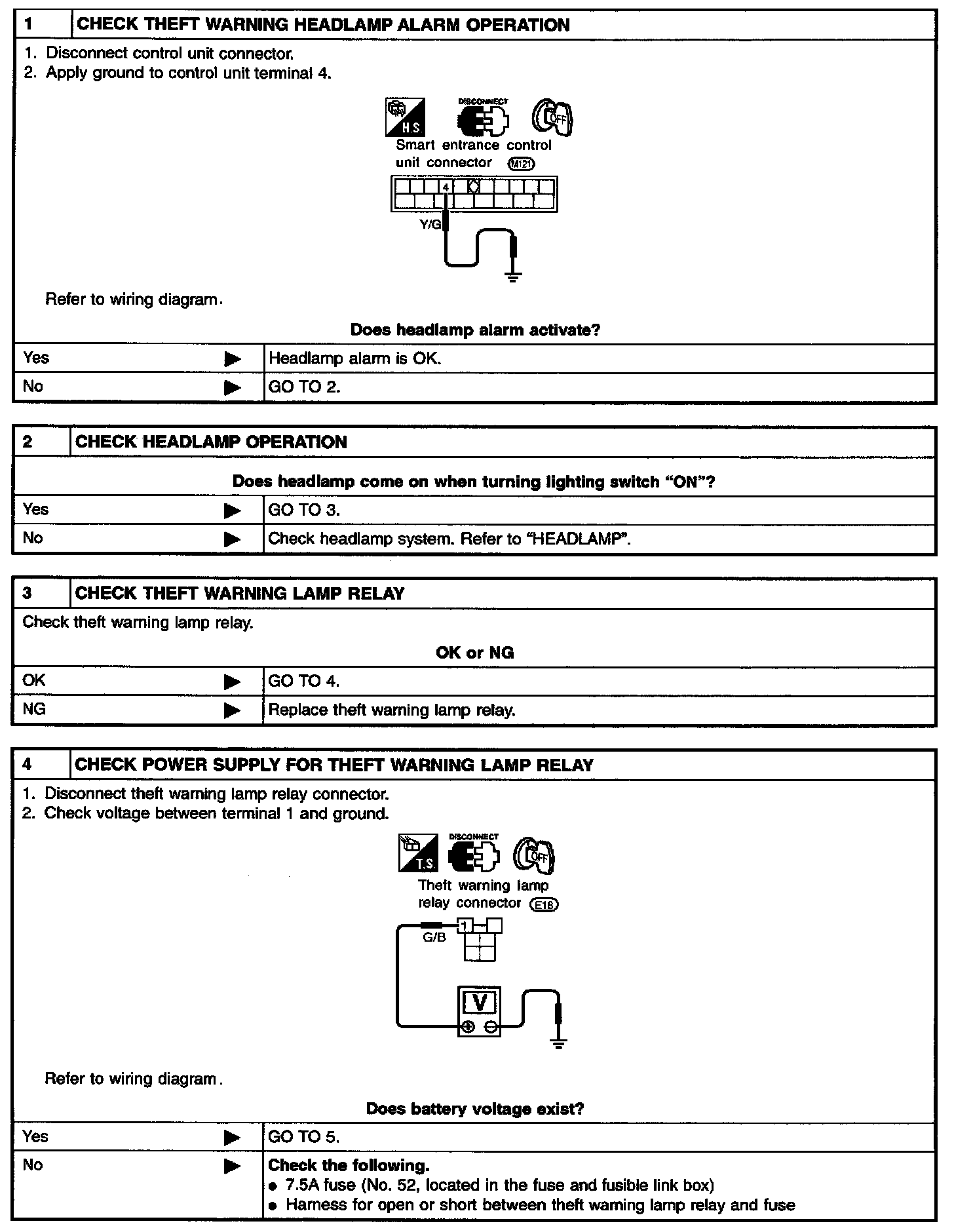

THEFT WARNING HEADLAMP ALARM CHECK
