Home >> Nissan-Datsun Truck >> 2000 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> NVIS (Nissan Vehicle Immobilizer System-NATS) >> Diagnosis By Symptom >> Diagnostic Procedure 6

Diagnostic Procedure 6

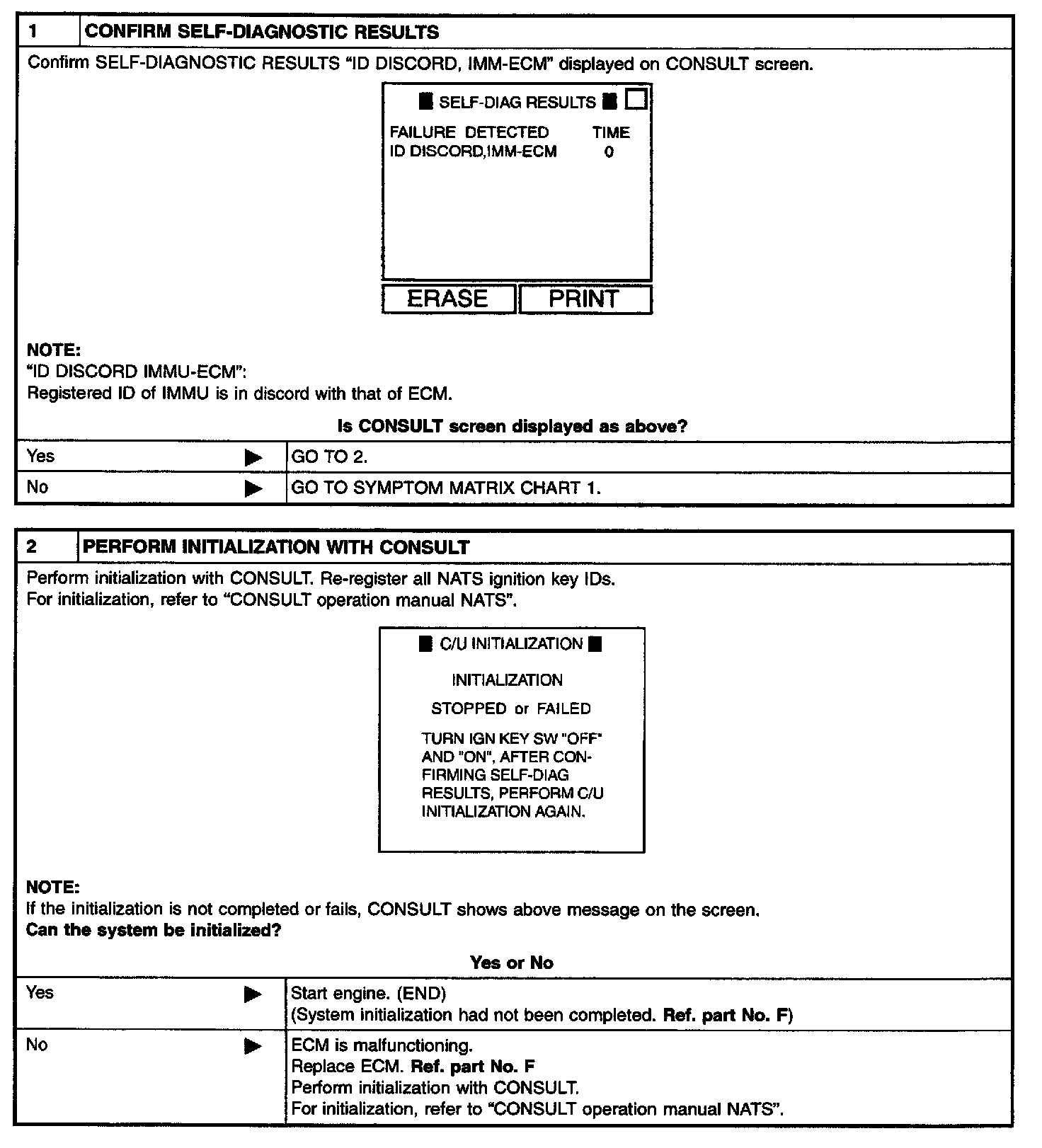

DIAGNOSTIC PROCEDURE 6
Self-diagnostic results:
"ID DISCORD, IMM-ECM" displayed on CONSULT screen
