Multi-Remote Control System

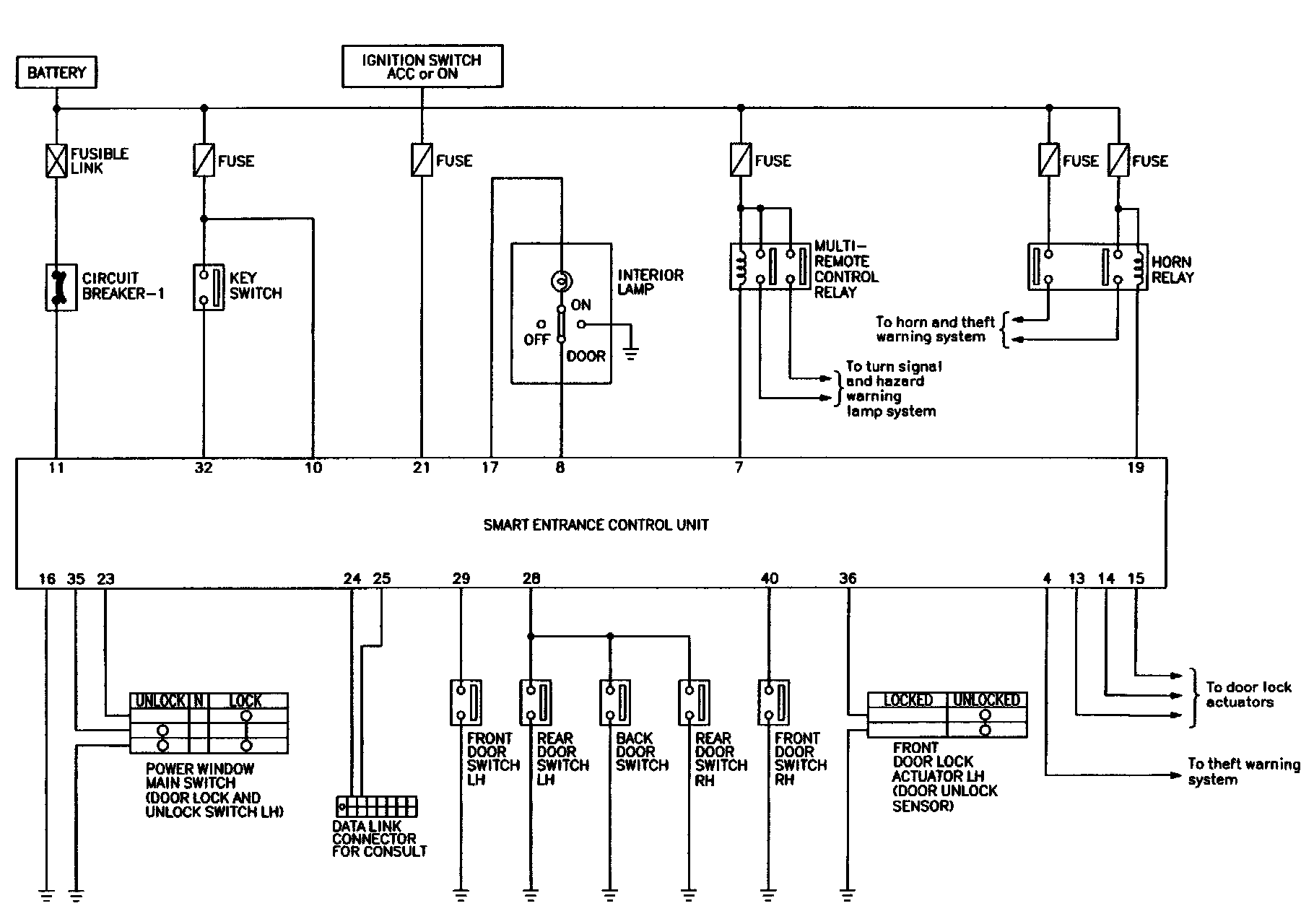

Schematic

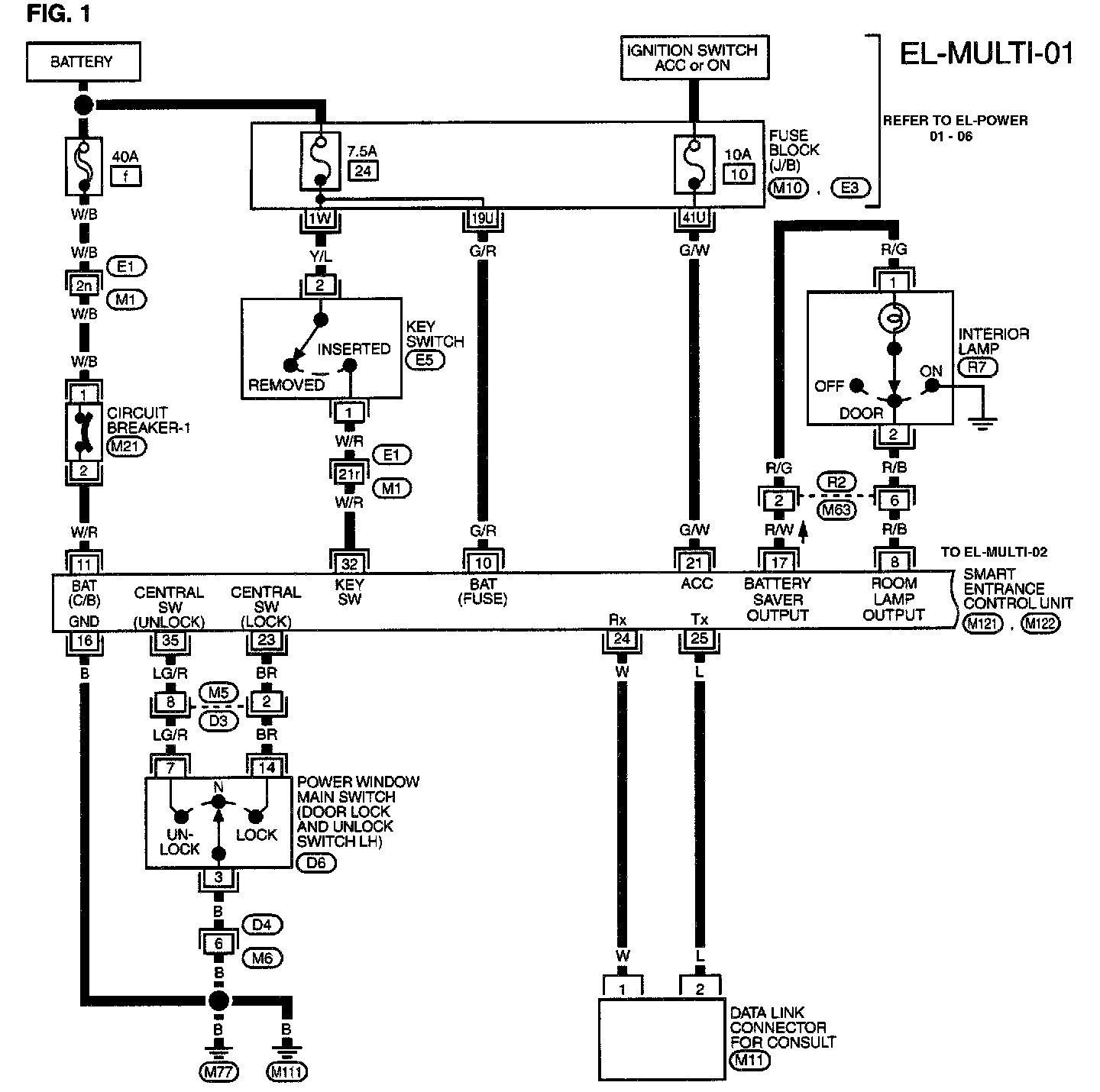

EL-MULTI-01:

(Part 1 of 3)
Fuse Block (J/B)
Circuit Breaker-1
Key Switch
Interior Lamp
Smart Entrance Control Unit
Power Window Main Switch (Door Lock And Unlock Switch LH)
Data Link Connector For Consult

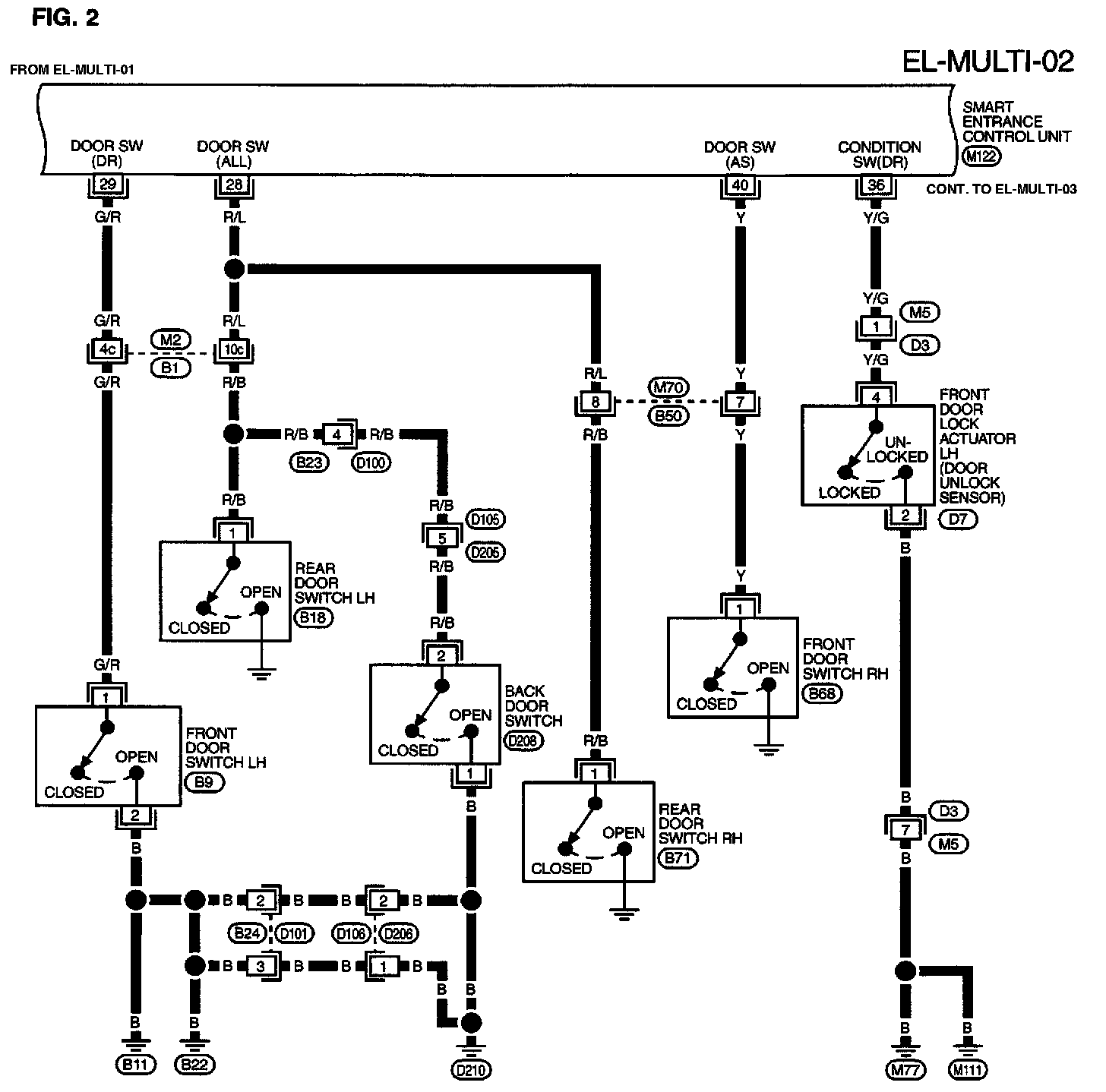

EL-MULTI-02:

(Part 2 of 3)
Smart Entrance Control Unit
Rear Door Switch LH
Front Door Lock Actuator LH (Door Unlock Sensor)
Front Door Switch LH
Back Door Switch
Rear Door Switch RH
Front Door Switch RH

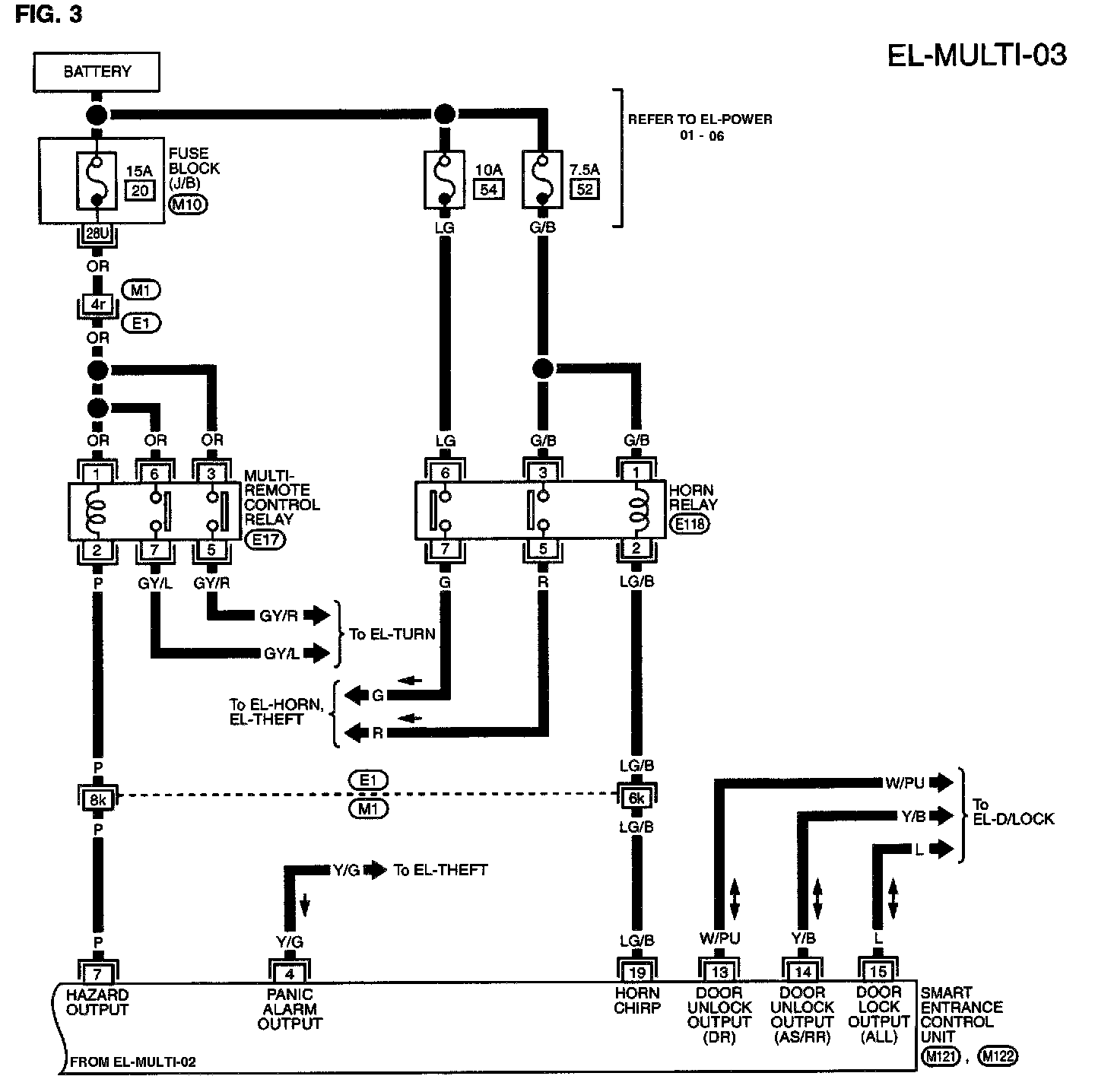

EL-MULTI-03:

(Part 3 of 3)
Battery
Fuse Block (J/B)
Multi-Remote Control Relay
Horn Relay
Smart Entrance Control Unit

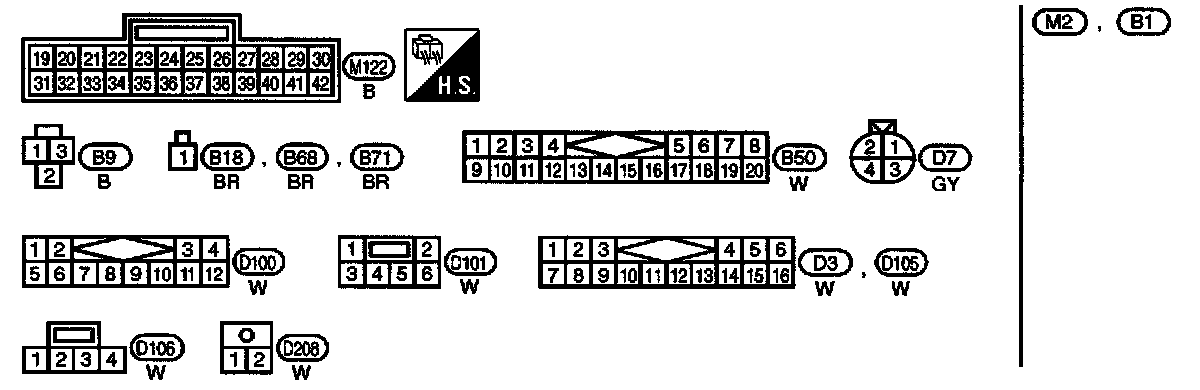

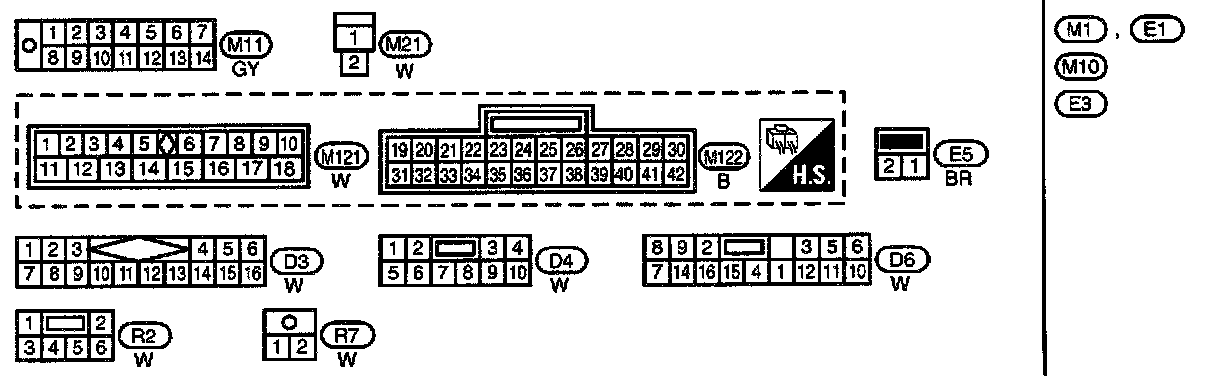

Circuit Connectors











Circuit Connectors

Main Harness, Engine Room, And Body Harness Connector Views:

Fuse Block J/B Connector Views:

B1, E1, E3, M1, M2, M10 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
