Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Wiper and Washer Systems >> Adjustments >> Before VIN 343314

Before VIN 343314










Washer Nozzle Adjustment

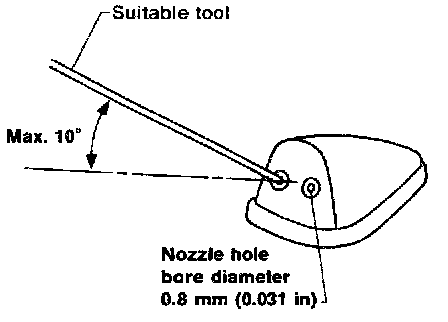

- Adjust washer nozzle with suitable tool as shown in the figure at left.

Adjustable range: ±10°
