Shift Control Components

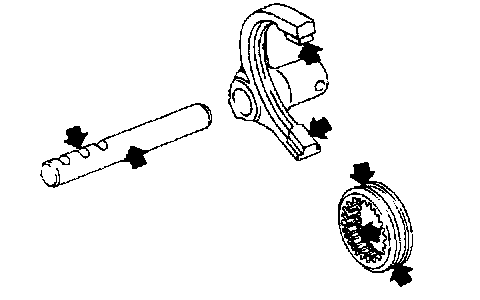

INSPECTION





- Check contact surface and sliding surface for wear, scratches, projections or other faulty conditions.

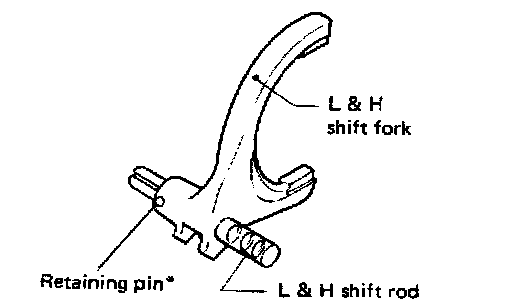

L & H SHIFT ROD & FORK





- Assemble as shown in illustration.
- Retaining pin is the same size as the one for 2-4 shift rod.

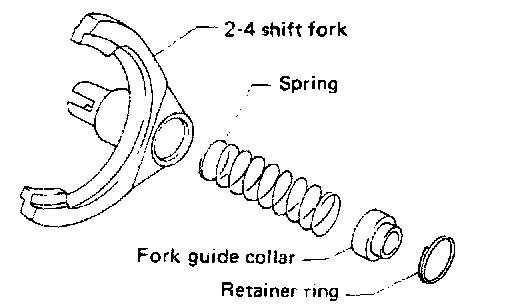

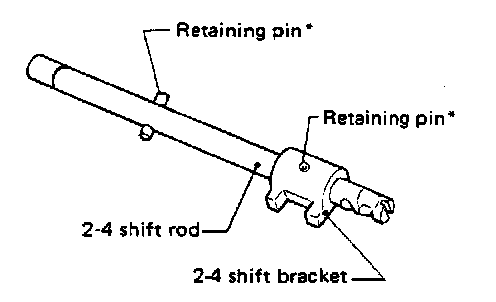

2-4 SHIFT ROD & FORK





- Assemble as shown in illustration.
- Retaining pins are the same size.





- Pay special attention to the direction of fork guide collar.
