Front Case - Shift Shaft Oil Seal

SHIFT SHAFT OIL SEAL





Removal
- Use a screwdriver to pry out old seal.
- Be careful not to damage case.
- Always replace with a new one whenever it has been removed.





Installation

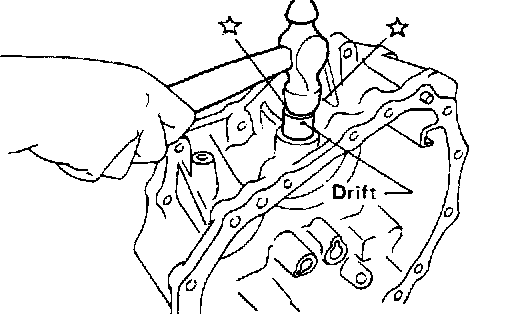

- Install new shift shaft oil seal until flush with case.
- Before installing, apply multi-purpose grease to seal lip.
