Center Case

REMOVAL

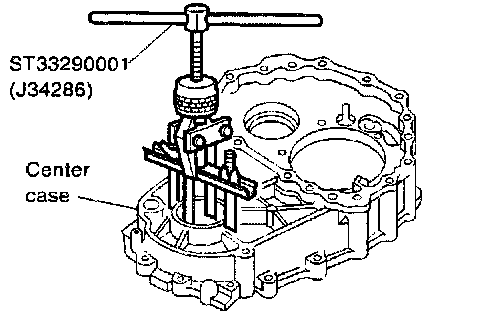

Center case oil seal
- Remove center case oil seal.

INSTALLATION

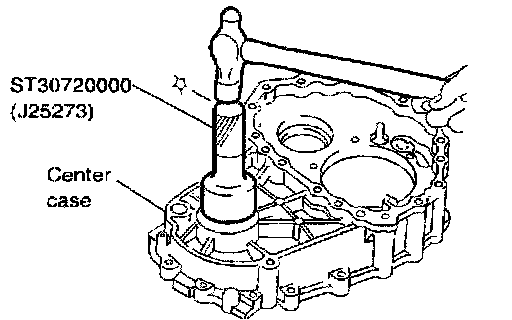

Center case oil seal
- Install center case oil seal.
