Before VIN #343314

REMOVAL
- Remove propeller shaft.

Plug front end of transfer.
- Remove axle shaft.

CAUTION:
- Be careful not to damage spline, sleeve yoke and front oil seal when removing propeller shaft.
- Before removing the final drive assembly or rear axle assembly, disconnect the ABS sensor harness connector from the assembly and move it away from the final drive/rear axle assembly area. Failure to do so may result in the sensor wires being damaged and the sensor becoming inoperative.

INSTALLATION

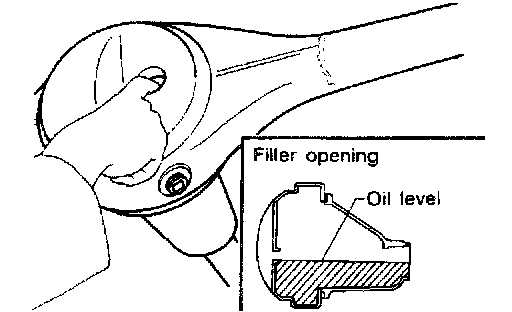

- Fill final drive with recommended gear oil.
