Before VIN #343314

Preparation for Disassembly

CAUTION: Do not run engine when only one wheel (rear) is off the ground.

CHECKING DIFFERENTIAL TORQUE

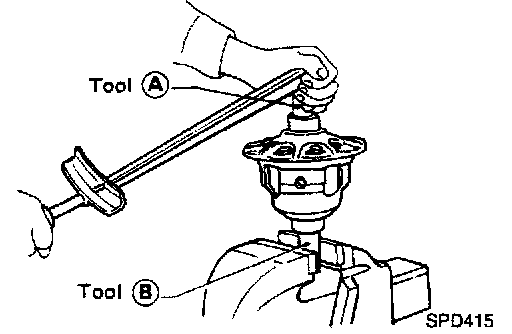

Measure differential torque with Tools.
If it is not within the specifications, inspect components of limited slip differential.
Differential torque:
201 - 240 Nm (20.5 - 24.5 kg-m, 148 - 177 ft. lbs.)
Tool numbers:
(A) KV38105210
(B) KV38105220
