Before VIN #343314

Disassembly
1. Remove side bearing inner cone with Tool.
2. Loosen ring gear bolts in a criss-cross fashion.

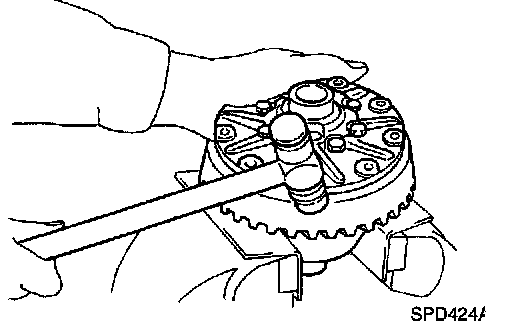

3. Tap ring gear off gear case with a soft hammer.
Tap evenly all around to keep ring gear from binding.

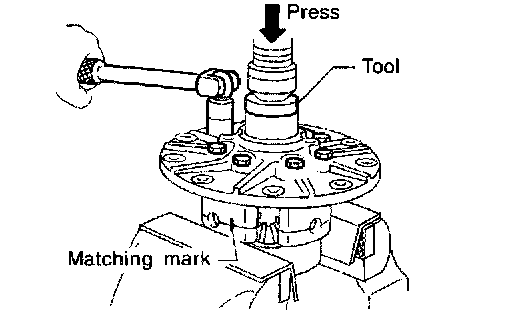

4. Remove couple bolts on differential cases A and B with a press.
Tool number: ST33081000 ( - )
5. Separate differential cases A and B.
Draw out component parts (discs and plates, etc.).
Put marks on differential cases so that they can be reinstalled in their original positions.
