Before VIN #343314

Differential Case





1. Measure clearance between side gear thrust washer and differential case.
Clearance between side gear thrust washer and differential case (A - B): Less than 0.15 mm (0.0059 inch)
The clearance can be adjusted with side gear thrust washer. Refer to Application and ID.
Application and ID

2. Apply gear oil to gear tooth surfaces and thrust surfaces and check to see they turn properly.





3. Install differential case LH and RH.
4. Install differential case on ring gear.
5. Place differential case on ring gear.

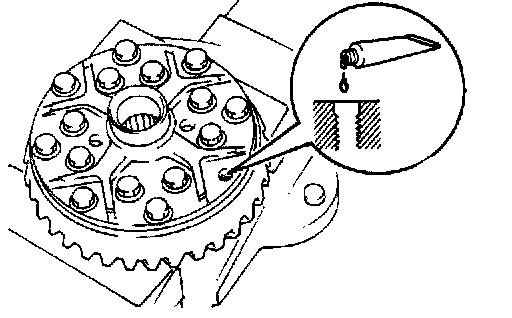

6. Apply locking agent [Locktite (stud lock) or equivalent] to ring gear bolts, and install them.
Tighten bolts in a criss-cross fashion, lightly tapping bolt head with a hammer.





7. Press-fit side bearing inner cones on differential case with Tool.
Tool numbers:
(A) ST33190000 (J25523)
(B) ST33081000 ( - )
