Front Differential Removal and Installation
Removal1. Remove front propeller shaft.
2. Separate drive shaft from front final drive.

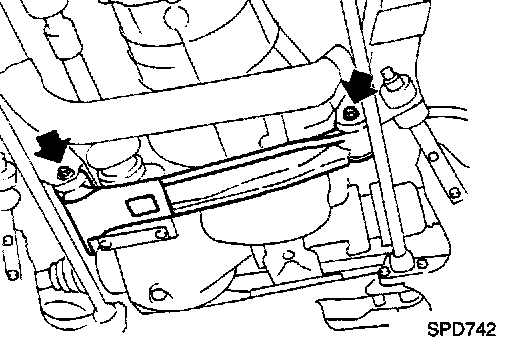

3. Remove engine mounting bolts and raise up engine.

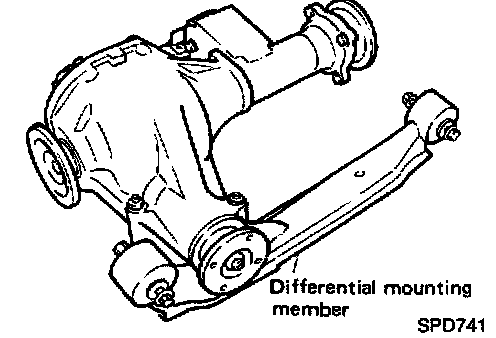

4. Remove front final drive together with differential mounting member.
Installation
1. Install front final drive assembly together with differential mounting member.

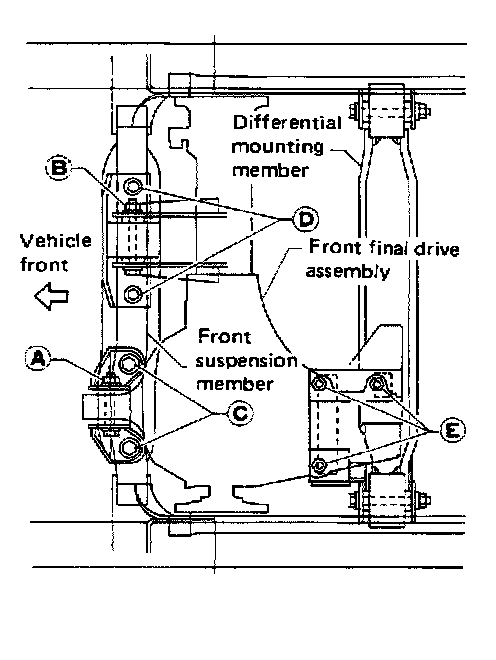

2. Tighten front final drive securing bolts and nuts by following the procedure to prevent drive train vibration.
a. Temporarily tighten nut (A).
b. Temporarily tighten nut (B).
c. Tighten bolt (C) to the torque of 68 to 87 Nm (6.9 to 8.9 kg-m, 50 to 64 ft. lbs.).
d. Tighten bolt (D) to the torque of 68 to 87 Nm (6.9 to 8.9 kg-m, 50 to 64 ft. lbs.).
e. Tighten nut (A) to the torque of 68 to 87 Nm (6.9 to 8.9 kg-m, 50 to 64 ft. lbs.).
f. Tighten nut (B) to the torque of 68 to 87 Nm (6.9 to 8.9 kg-m, 50 to 64 ft. lbs.).
g. Tighten nut (E) to the torque of 68 to 87 Nm (6.9 to 8.9 kg-m, 50 to 64 ft. lbs.).
3. Install drive shaft.
4. Install front propeller shaft.
