Before VIN #343314

FRONT OIL SEAL REPLACEMENT
(Rear final drive: Model H233B)
1. Remove rear propeller shaft.

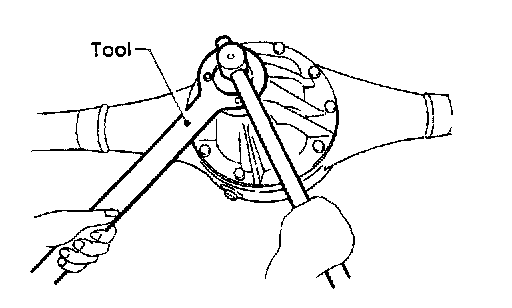

2. Loosen drive pinion nut.
Tool number: KV38104700 (J34311)

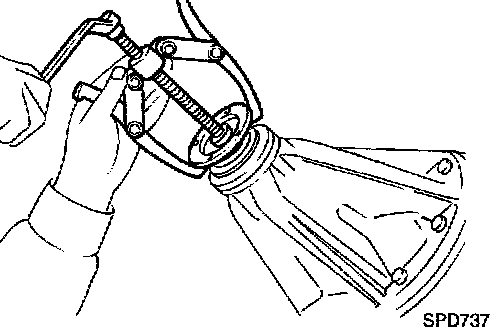

3. Remove companion flange.





4. Remove front oil seal.

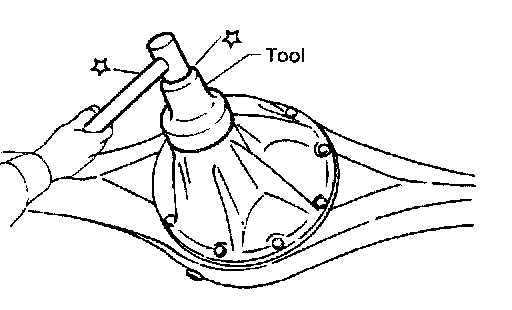

5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
Tool number:
ST30720000(J25405)
KV38102510 ( - )
6. Install companion flange and drive pinion nut.
7. Install rear propeller shaft.
