FRONT OIL SEAL REPLACEMENT
(Front final drive: Model R200A)

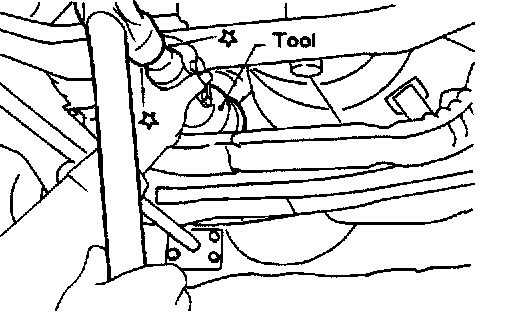

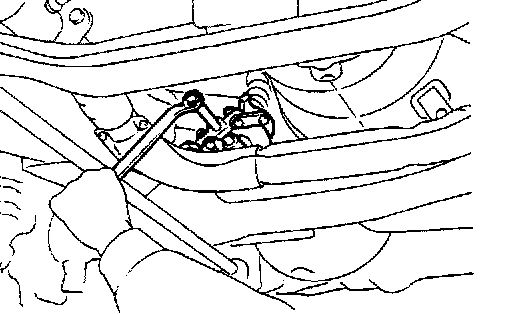

1. Remove front propeller shaft.

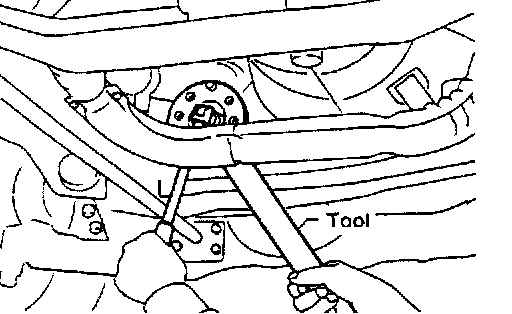

2. Loosen drive pinion nut.
Tool number: ST38060002 (J34311)





3. Remove companion flange.

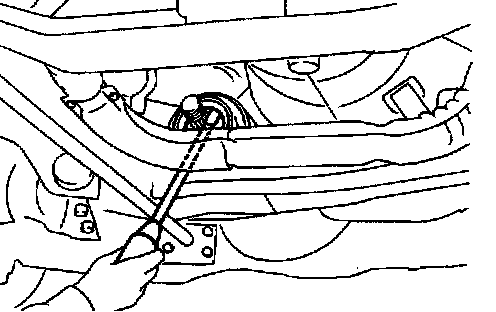

4. Remove front oil seal.





5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
Tool number: KV38100500(J25273)
6. Install companion flange and drive pinion nut.
7. Install propeller shaft.
