Before VIN #343314

REMOVAL AND INSTALLATION





- Remove release bearing.





- Install release bearing with suitable drift.





- Install retainer spring and holder spring.

INSPECTION
Check the following items, and replace as necessary.
- Release bearing, to see that it rolls freely and is free from noise, cracks, pitting and wear
- Release sleeve and withdrawal lever rubbing surface for wear, rust and damage

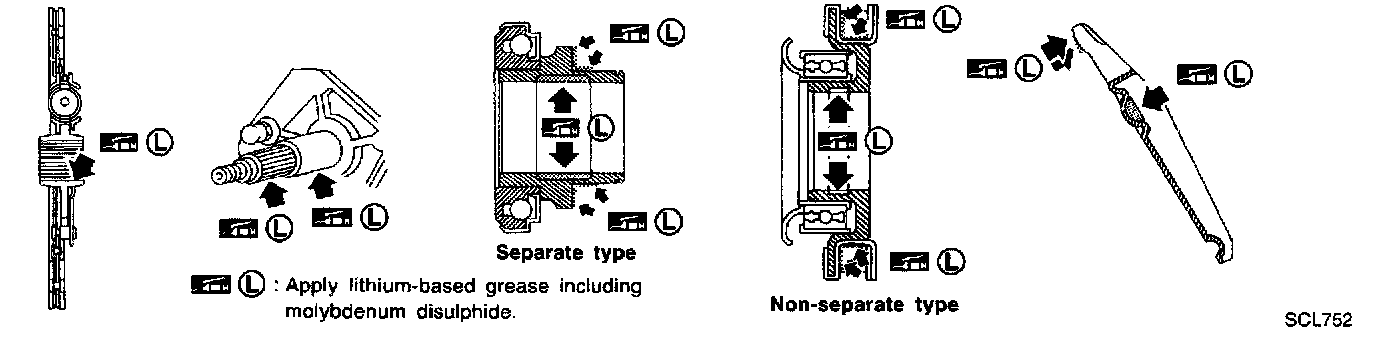

LUBRICATION
- Apply recommended grease to contact surface and rubbing surface.
- Too much lubricant might damage clutch disc facing.





WATERPROOF
- Apply recommended sealant to contact surface of transmission case dust cover and withdrawal lever, then install dust cover clip.
Recommended sealant: Nissan genuine part KP115-00100, Three Bond TB1212, Loctite Part No. 51813 or equivalent.
