Before VIN #343314

Adjusting Clutch Pedal

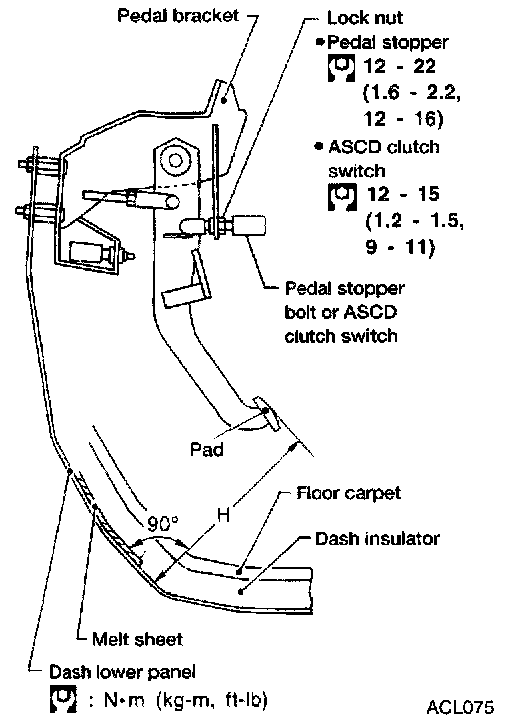

1. Adjust pedal height with pedal stopper bolt or ASCD clutch switch.
Pedal height "H": 227 - 237 mm (8.94 - 9.33 inch)

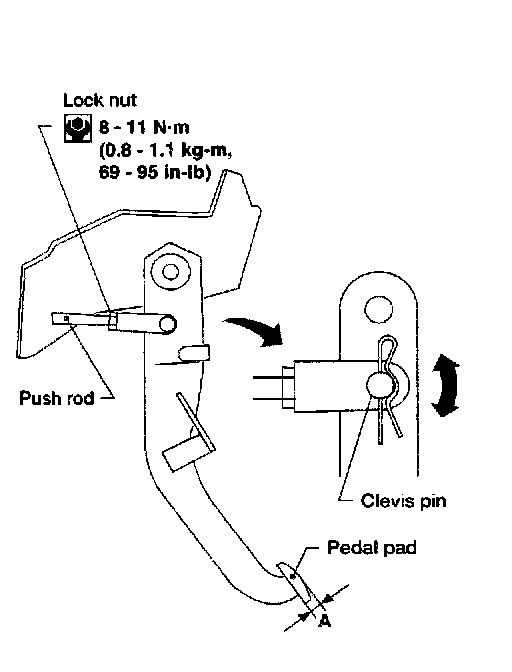

2. Adjust pedal free play by turning master cylinder push rod. Then tighten lock nut.
Pedal free play "A": 9 - 16 mm (0.35 - 0.63 inch)
Pedal free play, measured at pedal pad includes the following:
- Free play due to clevis pin and clevis pin hole, push rod and master cylinder.
3. Make sure that clevis pin can rotate smoothly. If not, readjust pedal free play with master cylinder push rod.

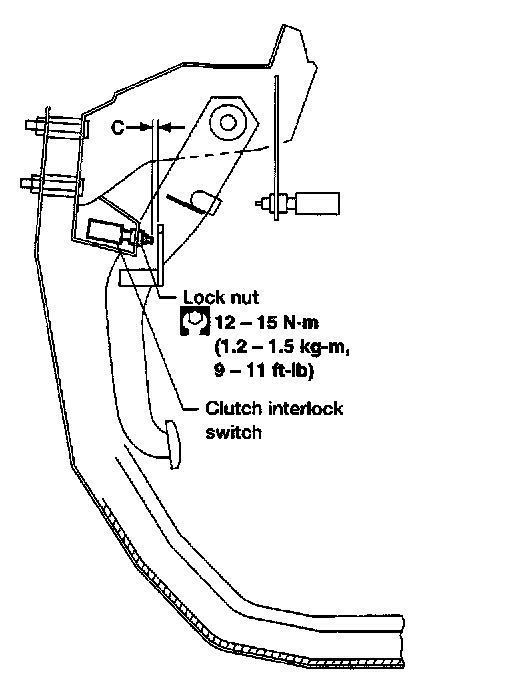

4. Adjust clearance "C" shown in the figure while fully depressing clutch pedal.
Clearance "C": 0.1 - 1.0 mm (0.004 - 0.039 inch)
