Before VIN #343314

SHIFT LOCK SOLENOID





- Check operation by applying battery voltage between shift lock solenoid connector terminals 1 and 3.

PARK POSITION SWITCH

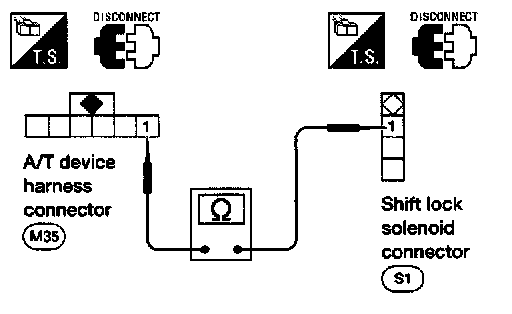

- Check continuity between A/T device (shift lock solenoid harness connector S1 terminal 1) and A/T device harness connector M35 terminal 1.

ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)

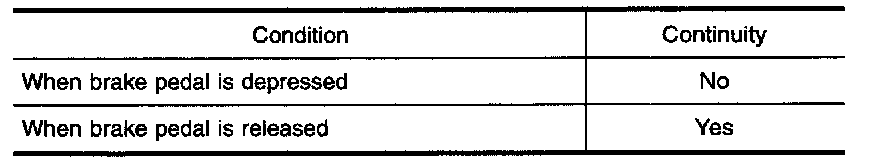

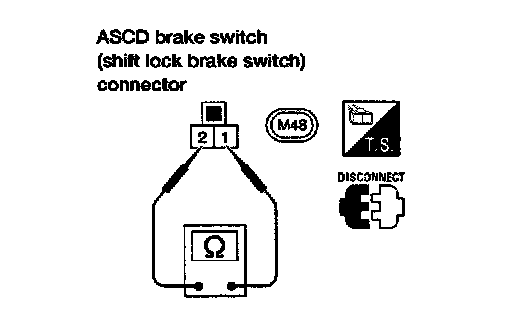

- Check continuity between ASCD brake switch (shift lock brake switch) harness connector terminals 1 and 2.
Check ASCD brake switch (shift lock brake switch) after adjusting brake pedal - refer to Brakes and Traction Control.
