Rear

Rear Axle and Rear Suspension Parts
Check rear axle and rear suspension parts for excessive play, wear and damage.

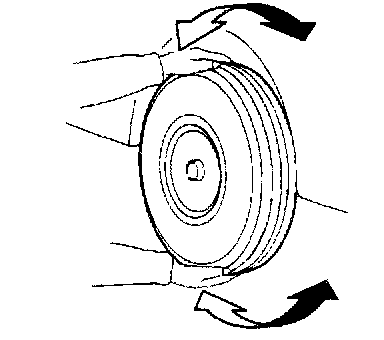

- Shake each rear wheel to check for excessive play.

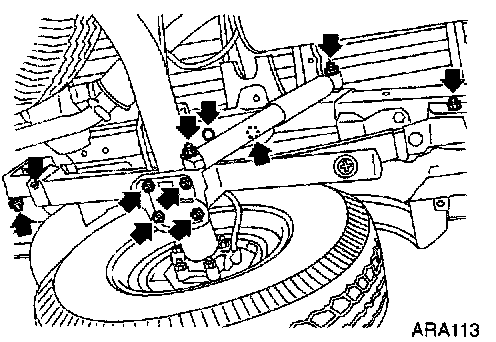

- Retighten all nuts and bolts to the specified torque.
: Refer to Specifications.

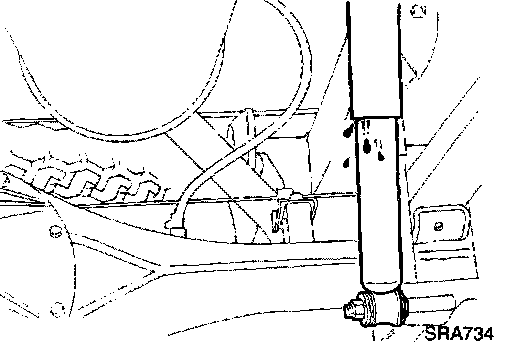

- Check shock absorber for oil leakage and other damage.
- Check shock absorber bushing for excessive wear and other damage.
