Front
Front Axle and Front Suspension PartsCheck front axle and front suspension parts for excessive play, cracks, wear and other damage.

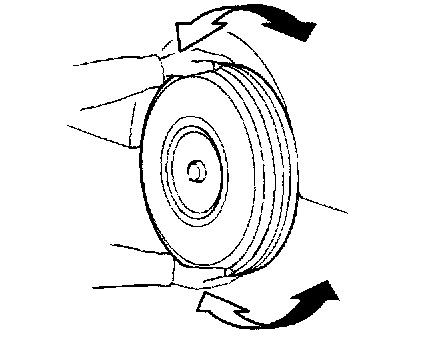

- Shake each front wheel to check for excessive play.
If looseness is noted, adjust wheel bearing end play, then check ball joint end play.
- Make sure that the cotter pin is inserted.
- Retighten all nuts and bolts to the specified torque.
: Refer to Diagrams; Exploded Views. Diagrams

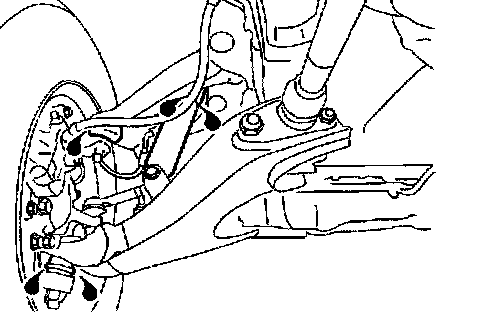

- Check front axle and front suspension parts for wear, cracks and other damage.
- Check shock absorber for oil leakage and other damage.
- Check suspension ball joint for grease leakage and ball joint dust cover for cracks and other damage.
