Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Gear >> Service and Repair >> Removal and Installation

Removal and Installation

Removal and Installation
Before removal, clean gear housing and oil pump exteriors using a steam cleaner, then dry with compressed air.

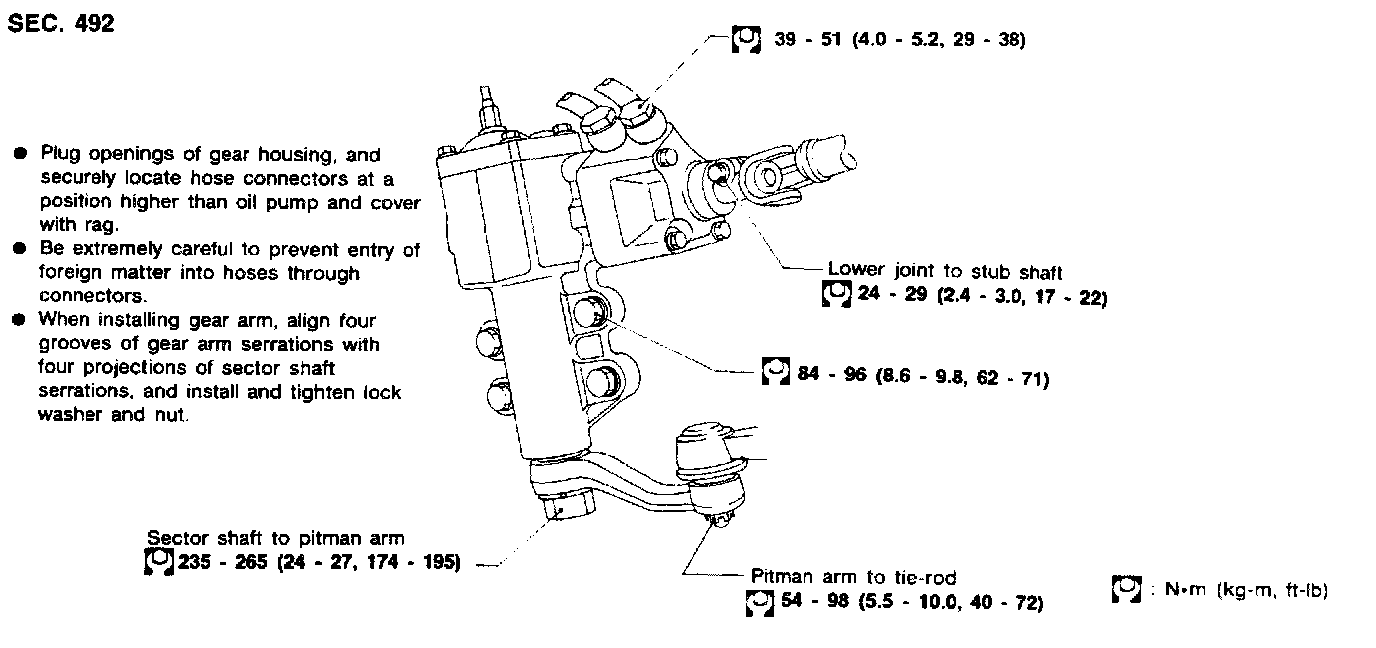

Steering Gear
