Except Models Beginning With Serial # 343314

REMOVAL

- Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait for at least 3 minutes.

1. Detach instrument stay cover lower center from instrument panel.
2. Disconnect passenger air bag deactivation switch harness connector and cigarette lighter harness connector.
3. Remove instrument stay cover lower center.

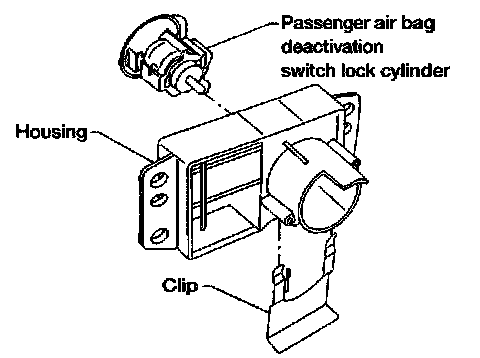

4. Remove four screws and housing from instrument stay cover lower center.
5. Remove clip from bottom of housing.
6. Remove passenger air bag deactivation switch lock cylinder from front of housing.

INSTALLATION

NOTE:
- Be sure that passenger air bag deactivation switch and lock cylinder are in the same position as during removal for proper engagement.
- To install, reverse removal procedure.
- After replacement, perform Self-diagnosis for SRS. Refer to "SRS Operation Check", "TROUBLE DIAGNOSES - Restraint System".
