Except Models Beginning With Serial Number 343314

To repair the SRS, perform the following steps.

When SRS is activated in a collision:
1. Replace the air bag diagnosis sensor unit.
2. Remove the air bag modules.
3. Check the SRS components using the table.
Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

4. Install new air bag modules.
5. Conduct Self-diagnosis. Refer to "SRS Operation Check". Ensure entire SRS operates properly.
SEE DIAGNOSTIC PROCEDURE 1 AND 2.
[1][2]Component Tests and General Diagnostics
[1][2]Component Tests and General Diagnostics

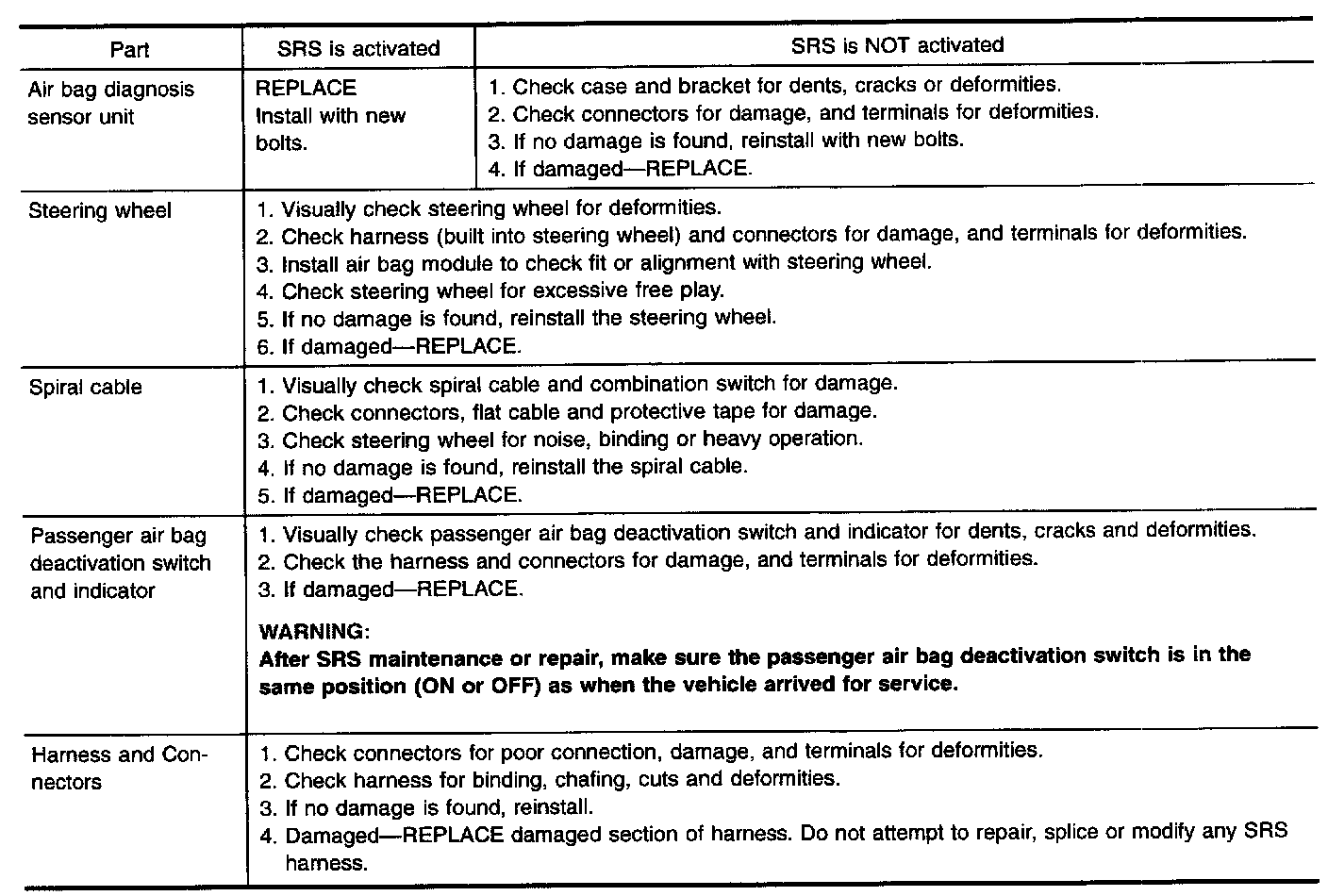

Part 1 Of 2:

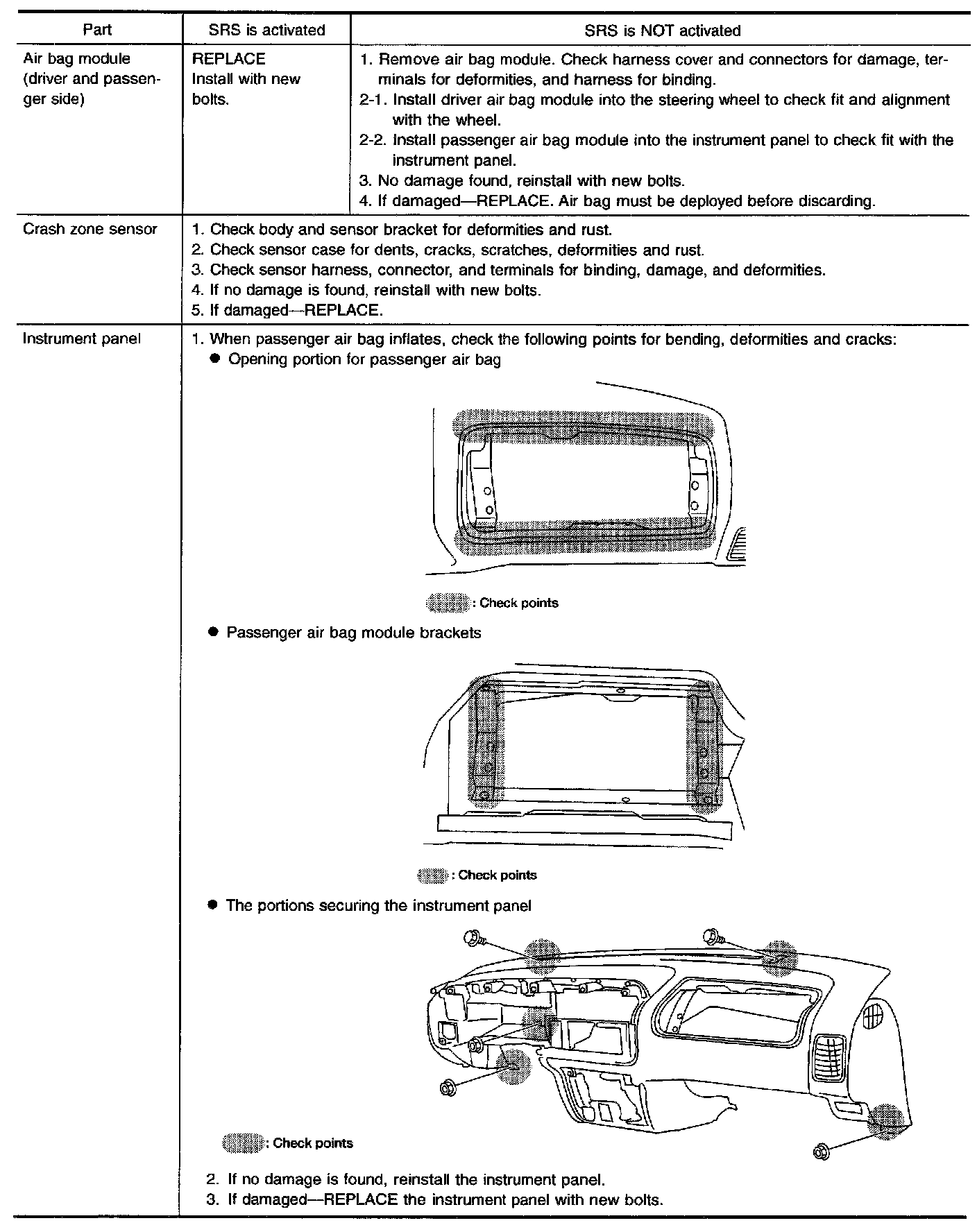

Part 2 Of 2:

When SRS is not activated in a collision:
1. Check the SRS components using the table .
Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

2. Conduct Self-diagnosis using CONSULT and "AIR BAG" warning lamp. Refer to "SRS Operation Check". Ensure entire SRS operates properly.
