Except Models Beginning With Serial Number 343314

Inspecting SRS intermittent malfunction by using CONSULT - Diagnosis mode




1. Turn ignition switch OFF.

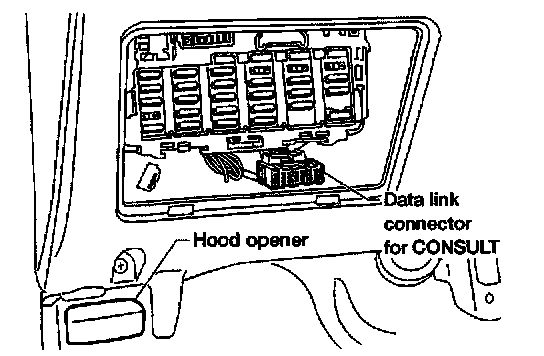

2. Connect CONSULT to Data link connector.




3. Turn ignition switch ON.

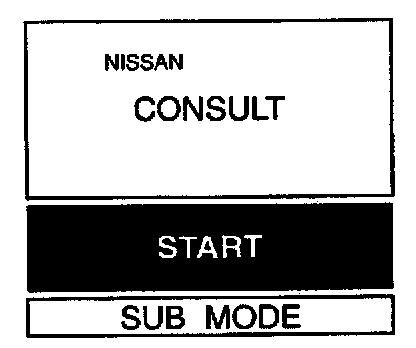

4. Touch "START".

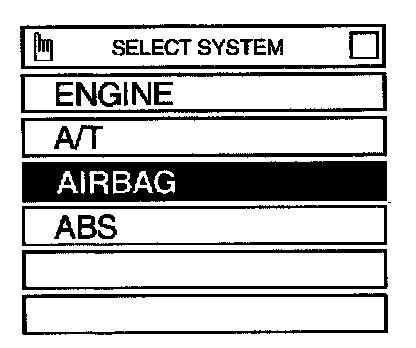

5. Touch "AIRBAG".

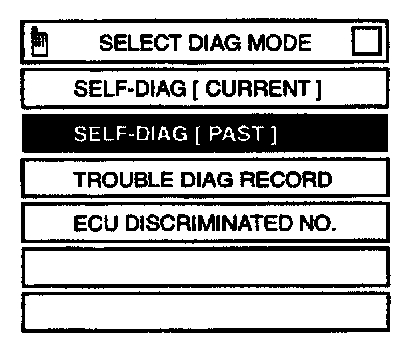

6. Touch "SELF-DIAG [PAST]".

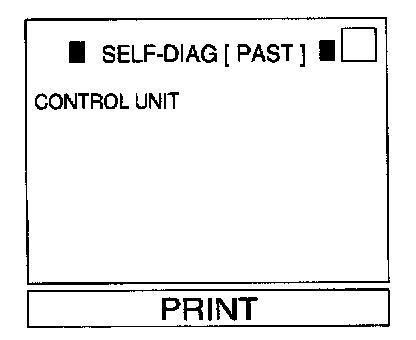

7. If self-diagnosis result is displayed on "SELF-DIAG [PAST]", go to step 10.

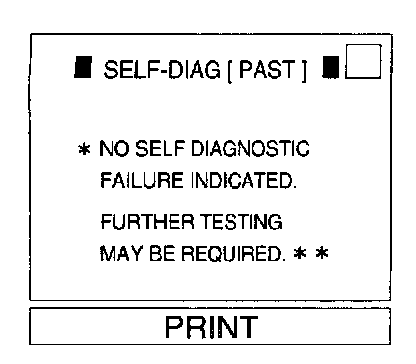

If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".

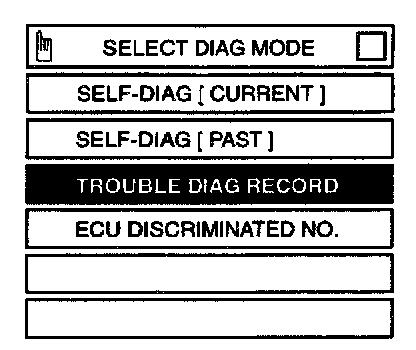

8. Touch "TROUBLE DIAG RECORD".

NOTE: With "TROUBLE DIAG RECORD", self-diagnosis results previously erased by a reset operation can be displayed.

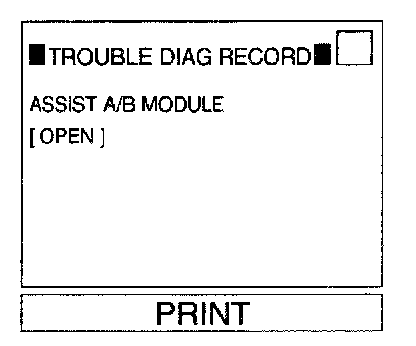

9. Self-diagnosis result is displayed on "TROUBLE DIAG RECORD".

10. Touch "PRINT".
11. Compare self-diagnosis result to the INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART.
12. Touch "BACK" key of CONSULT until "SELECT SYSTEM" appears, then turn off CONSULT.
13. Turn ignition switch OFF, then disconnect CONSULT and both battery cables.

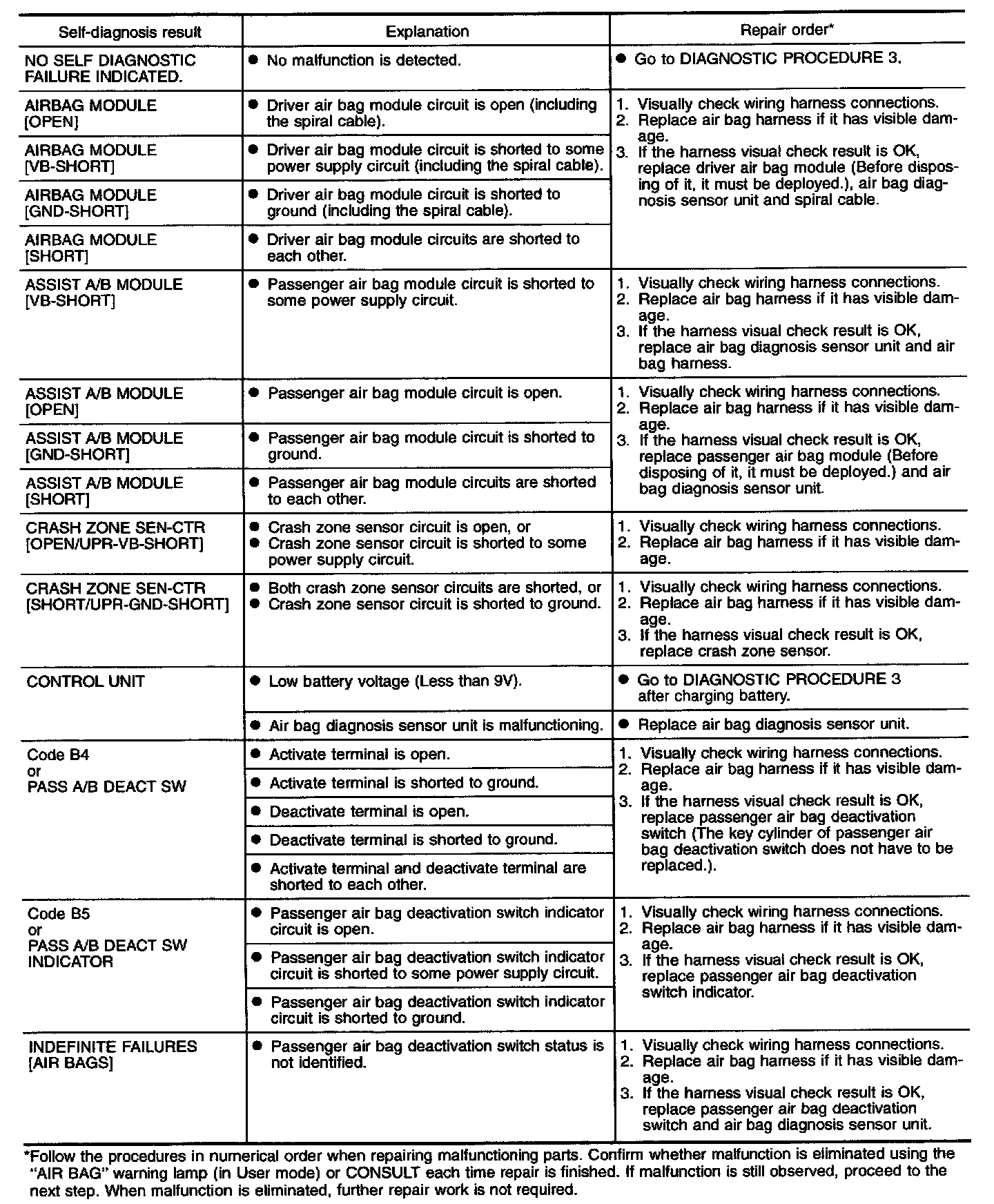

INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART (SELF-DIAG [PAST] OR TROUBLE DIAG RECORD):

14. Repair the system as outlined by the Repair order that corresponds to the self-diagnosis result in INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART. For replacement procedure of component parts.
15. Go to DIAGNOSTIC PROCEDURE 3. Diagnostic Procedure 3
