Except Models Beginning With Serial # 343314

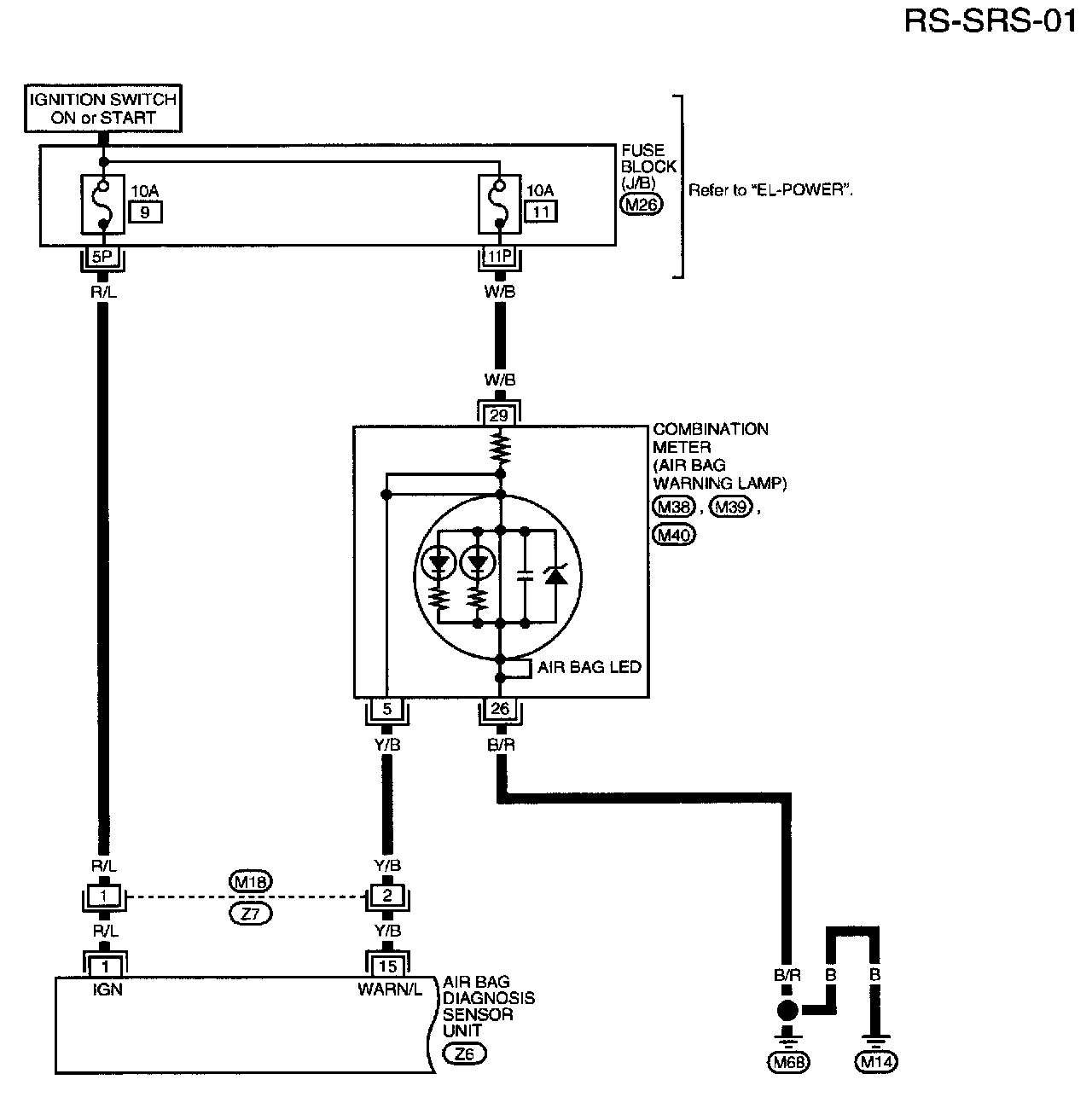

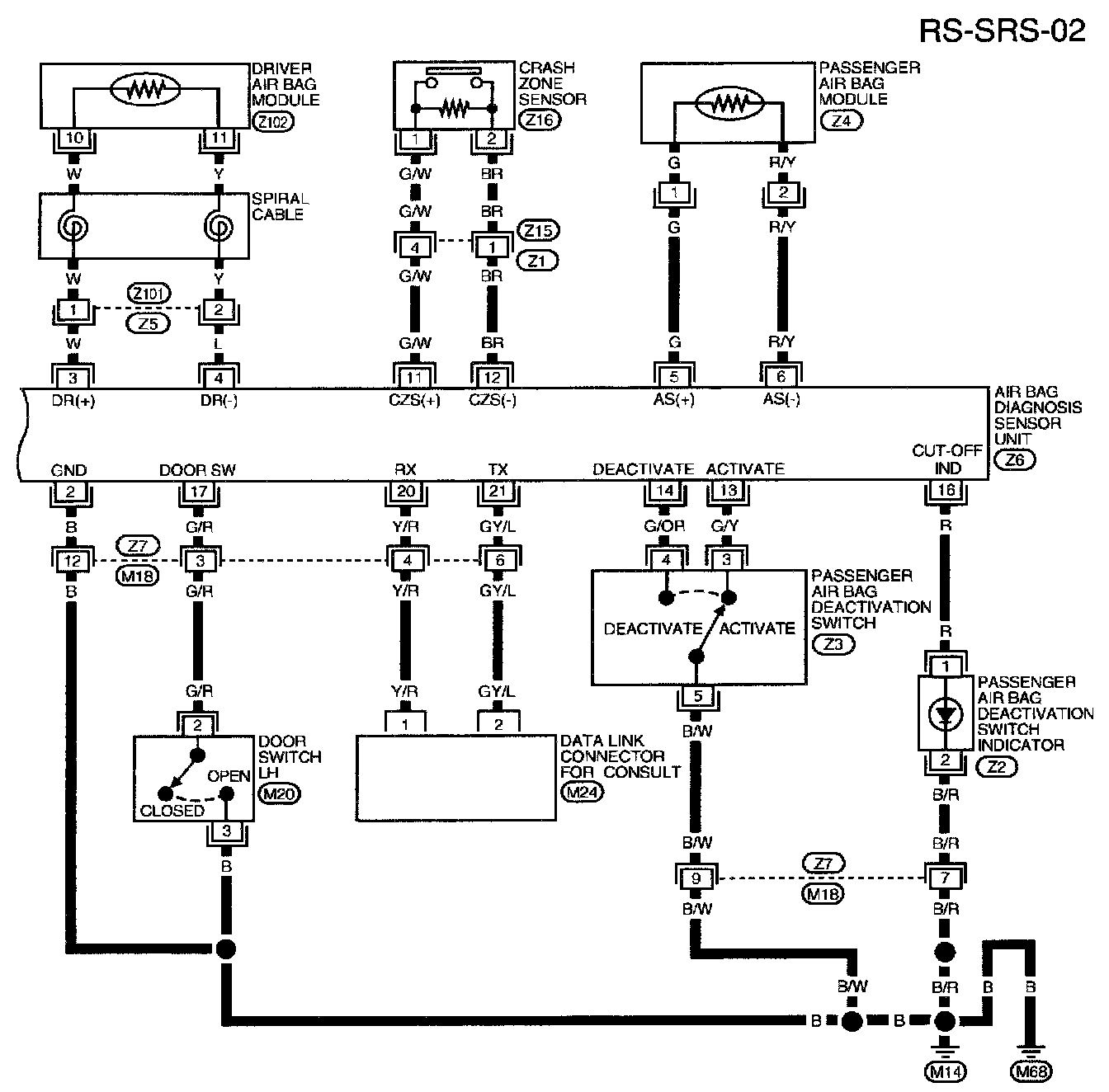

Schematic




(Part 1 of 2)
Air Bag Diagnosis Sensor Unit
Combination Meter (air Bag Warning Lamp)
Fuse Block (J/B)




(Part 2 of 2)
Air Bag Diagnosis Sensor Unit
Crash Zone Sensor
Data Link Connector For Consult
Door Switch LH
Driver Air Bag Module
Passenger Air Bag Module
Passenger Air Bag Deactivation Switch
Passenger Air Bag Deactivation Switch Indicator
Spiral Cable

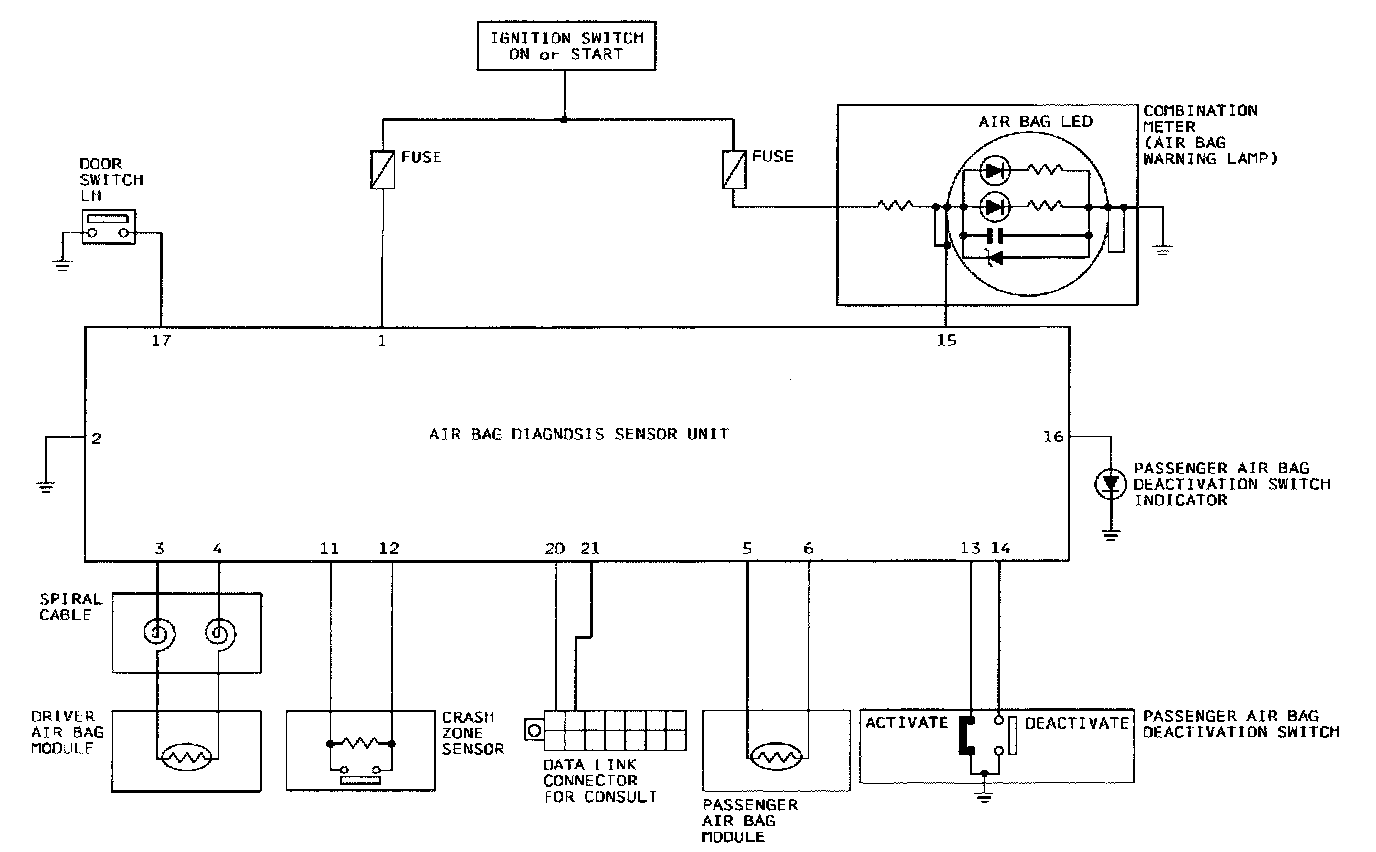

Circuit Diagrams

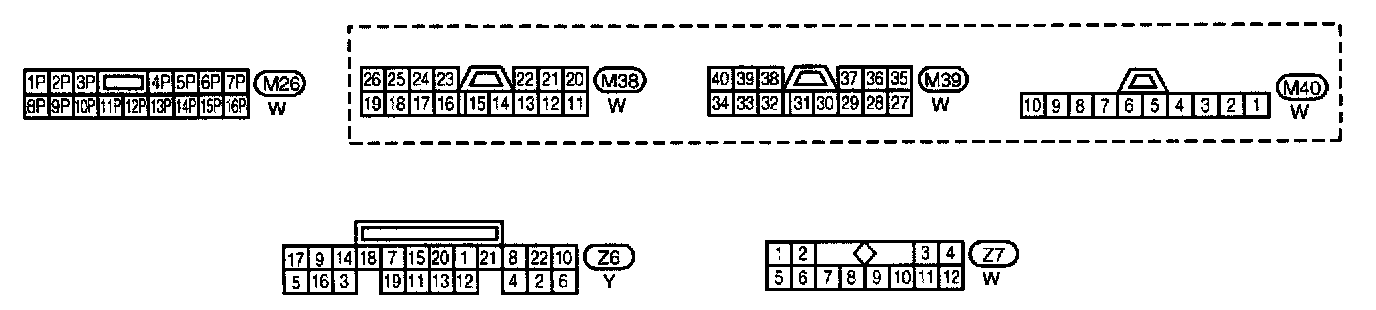

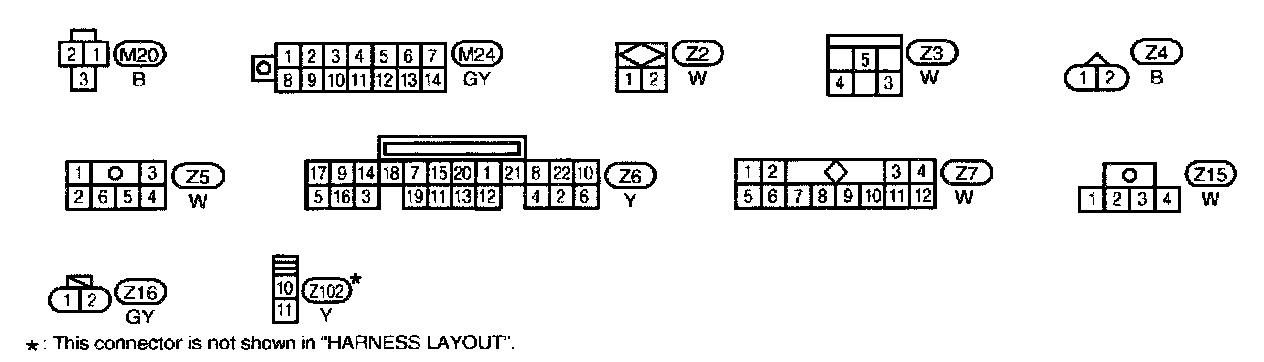

Circuit Connectors
