Except Models Beginning With Serial # 343314

The Supplemental Restraint System "AIR BAG", used along with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger in a frontal collision.

The Supplemental Restraint System consists of air bag modules (located in the center of the steering wheel and in the instrument panel on the passenger side), a diagnosis sensor unit, a crash zone sensor, warning lamp, wiring harness and spiral cable. The vehicle is equipped with a passenger air bag deactivation switch.

Because no rear seat exists where a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a rear-facing child restraint can be used in the front passenger seat.
The switch is located in the center of the instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is enabled and could inflate in a frontal collision.
When the switch is turned to the OFF position, the passenger air bag is disabled and will not inflate in a frontal collision.

A passenger air bag OFF indicator on the instrument panel lights up when the passenger air bag is switched OFF.

The driver air bag always remains enabled and is not affected by the passenger air bag deactivation switch.

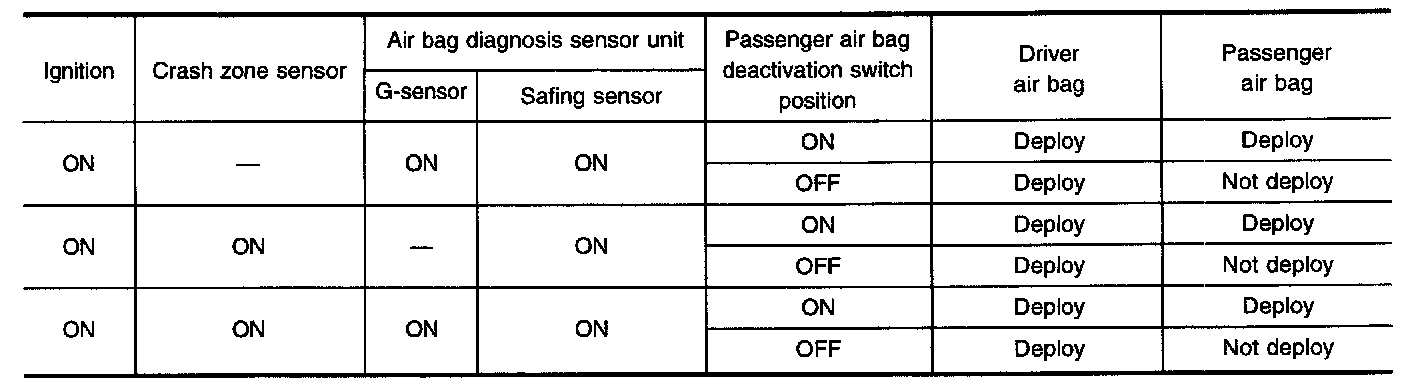

The air bag diagnosis sensor unit will deploy the air bags if the G-sensor and/or the crash zone sensor activates simultaneously with the safing sensor while the ignition switch is ON.

The passenger air bag does not deploy when the passenger air bag deactivation switch is turned to the OFF position.
