Before VIN 343314

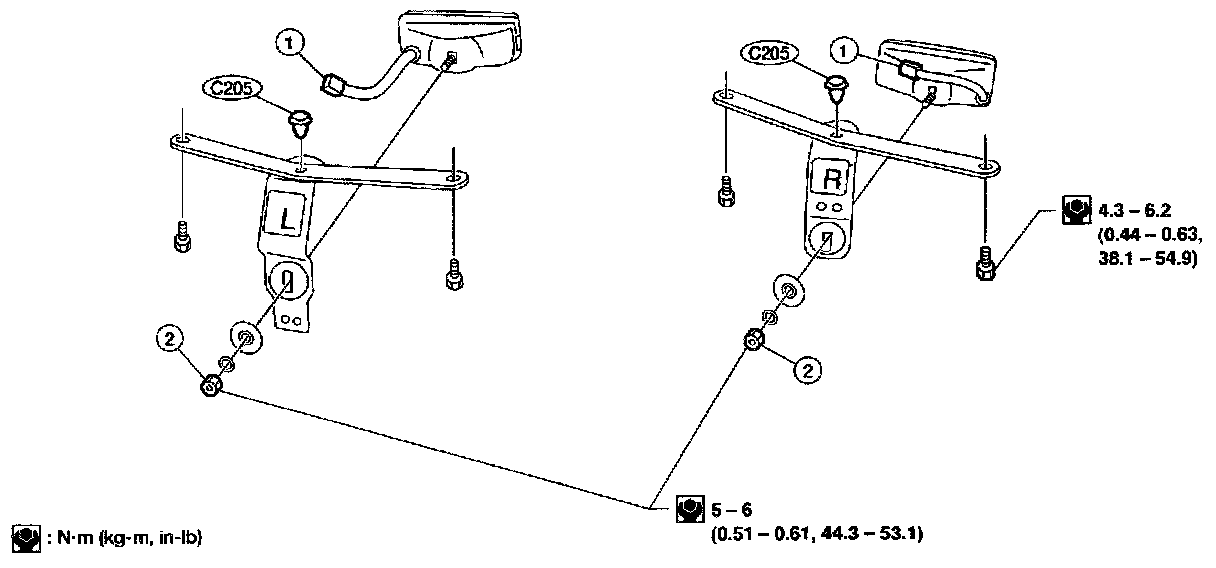

1. Disconnect fog lamp harness connector and separate fog lamp connector from fog lamp bracket.
2. Remove mounting nut and remove lens and housing assembly from tog lamp bracket.
3. Install in reverse order of removal. Ensure top of lens faces up.
4. Tighten mounting nut.
5 - 6 Nm (0.51 - 0.61 kg.m, 44.3 - 53.1 in.lb)
