Before VIN 343314

METER/GAUGE RESISTANCE CHECK
1. Disconnect FPC connector.

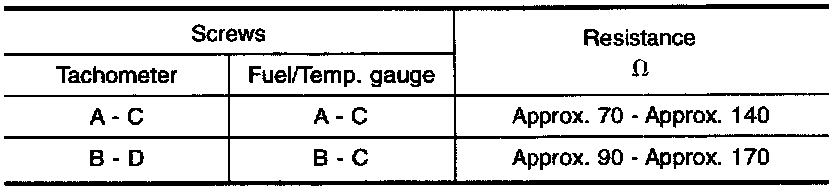

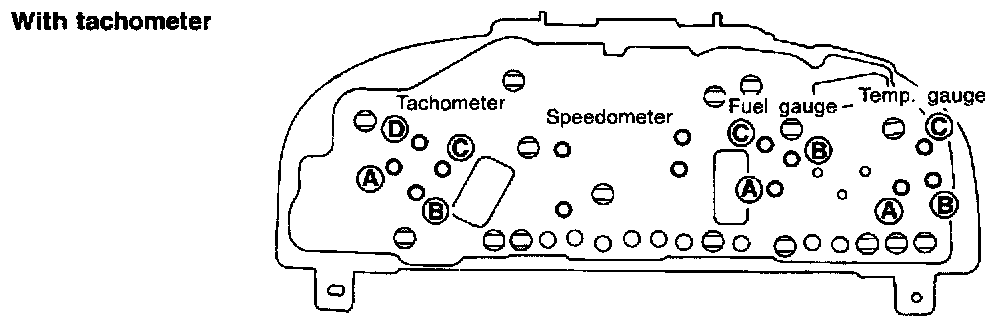

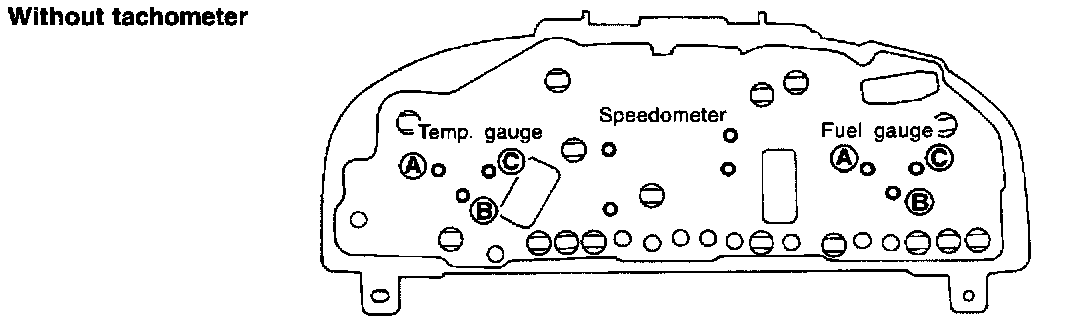

2. Check resistance between installation screws of meter/gauge.







FUEL TANK GAUGE UNIT CHECK

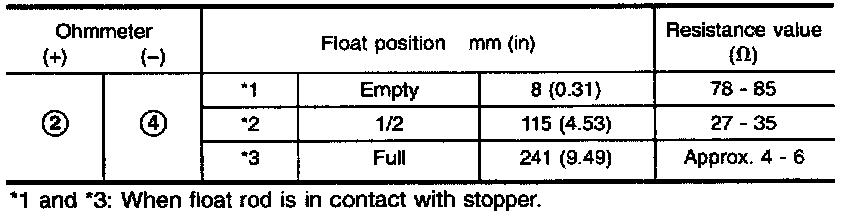

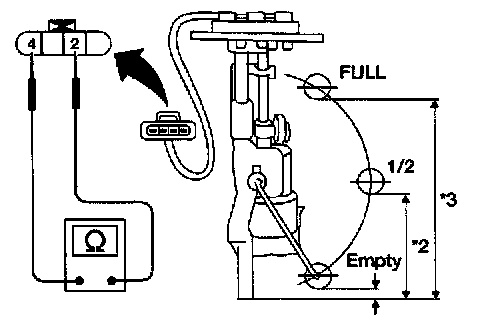

Check the resistance between terminals (G) and (E).







THERMAL TRANSMITTER CHECK

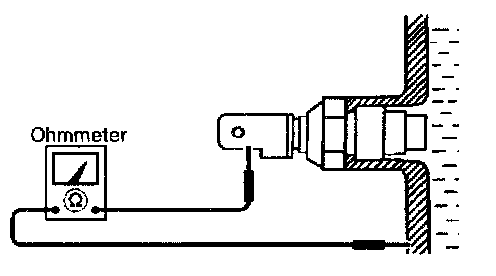

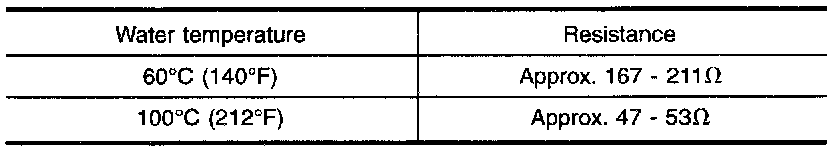

Check the resistance between the terminals of thermal transmitter and body ground.




VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.

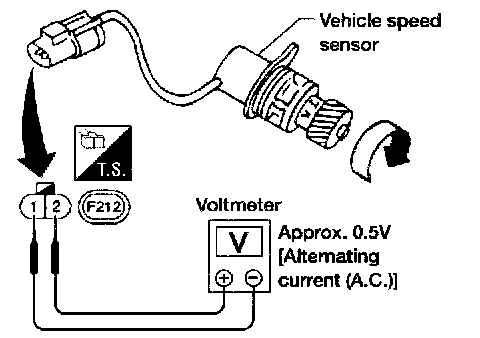

2. Turn vehicle speed sensor pinion quickly and measure voltage between terminals (1) and (2).
