Before VIN 343314

Preliminary Check

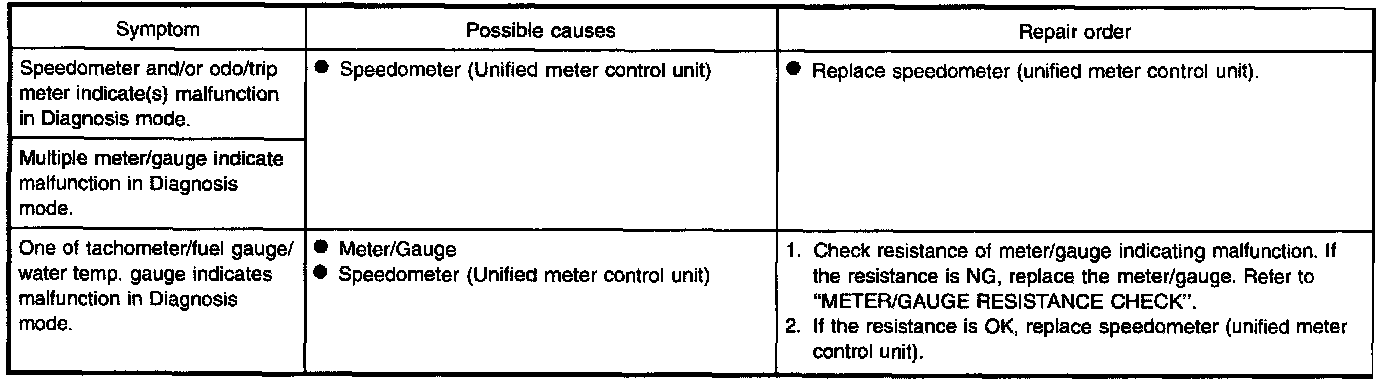

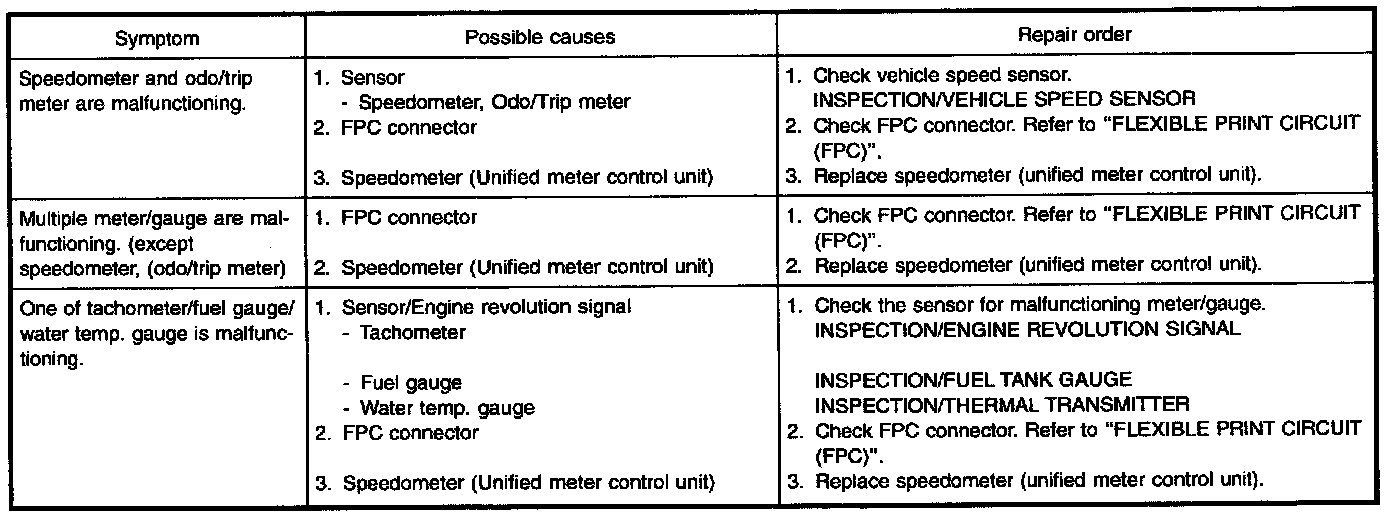

SYMPTOM CHART 1 (Malfunction is indicated in diagnosis mode)




SYMPTOM CHART 2 (No malfunction is indicated in diagnosis mode)

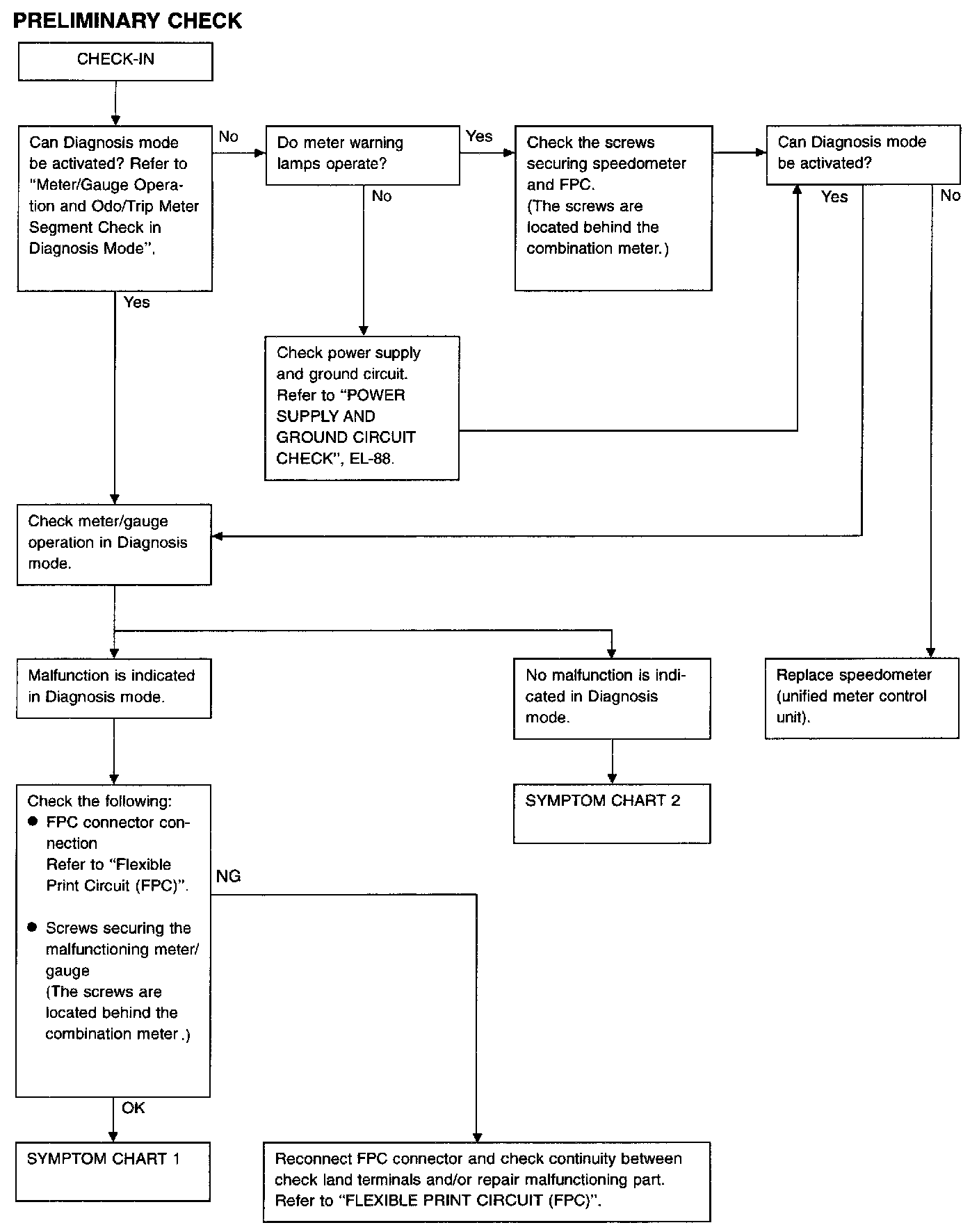

Before starling trouble diagnoses, perform PRELIMINARY CHECK.

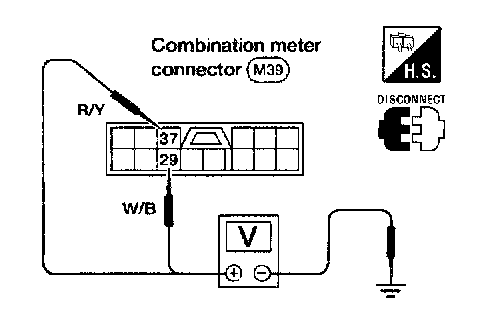

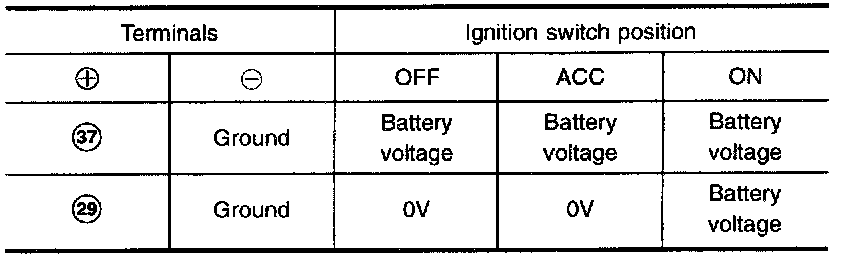

Power supply circuit check
If NG, check the following.
- 7.5 A fuse (No.[28], located in fuse block (J/B)]
- 10 A fuse [No.[11], located in fuse block (J/B)]
- Harness for open or short between fuse and combination meter

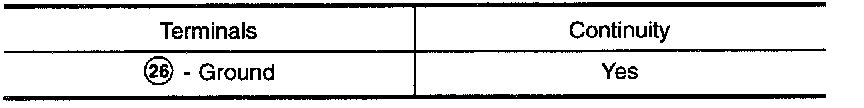

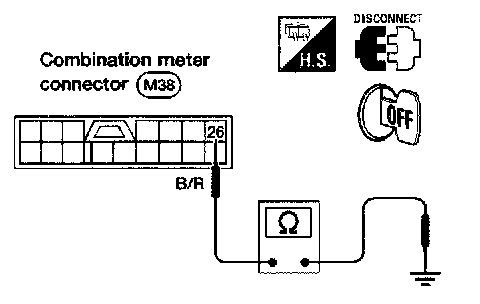

Ground circuit check

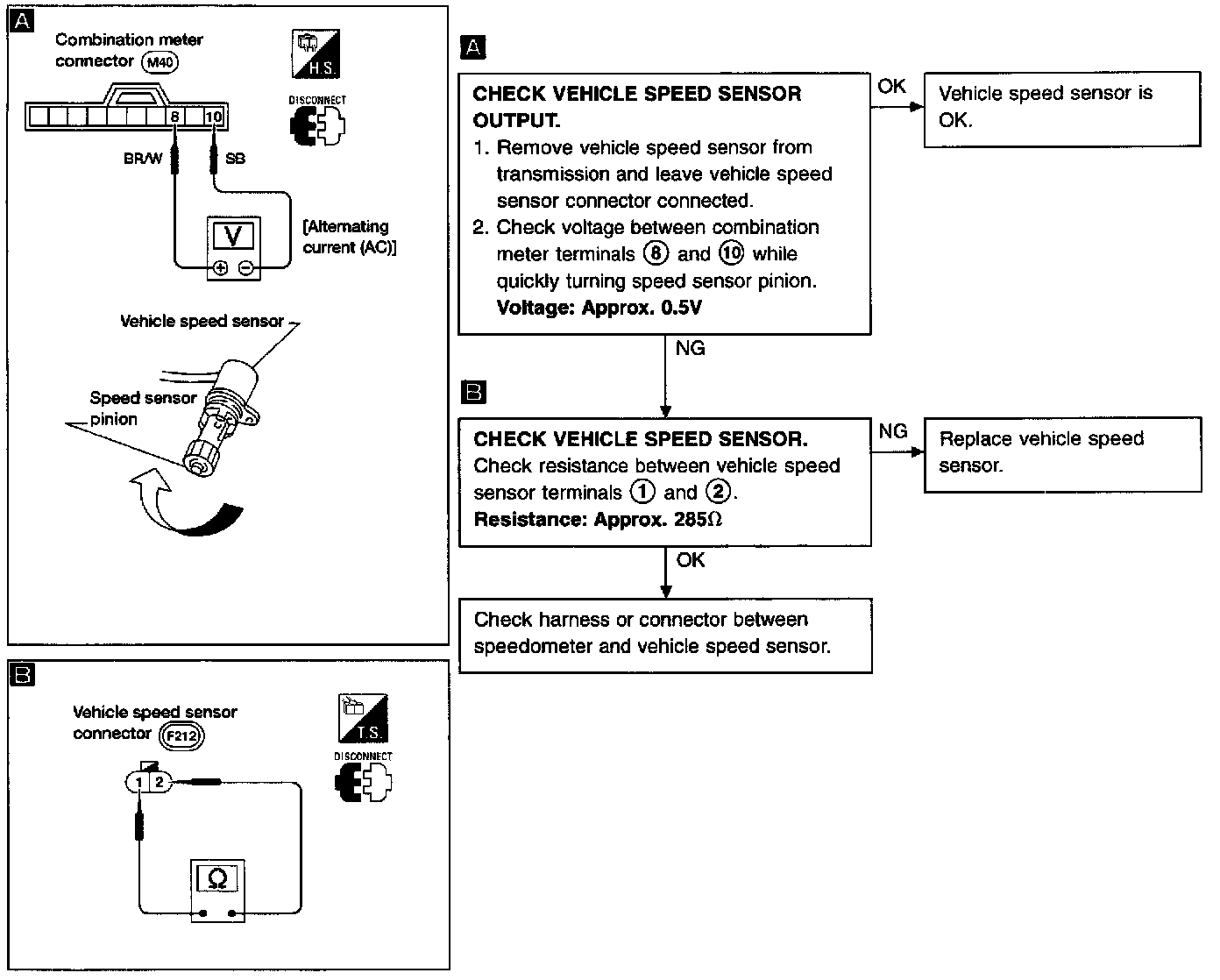

INSPECTION/VEHICLE SPEED SENSOR

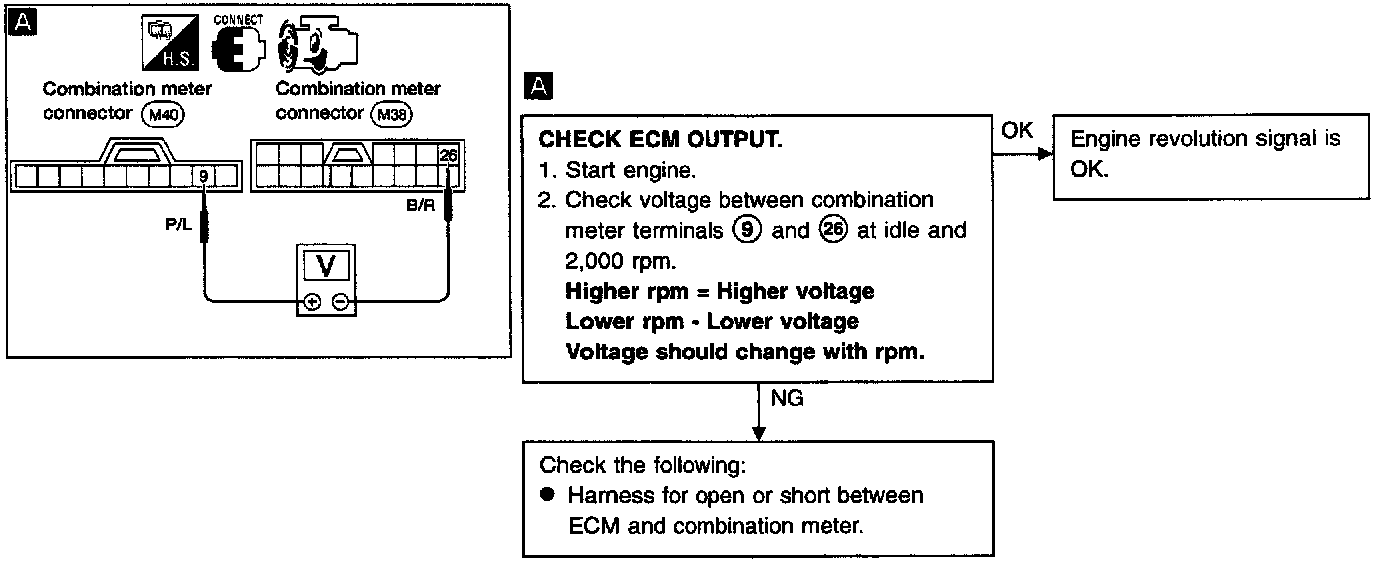

INSPECTION/ENGINE REVOLUTION SIGNAL (MODELS WITH TACHOMETER)

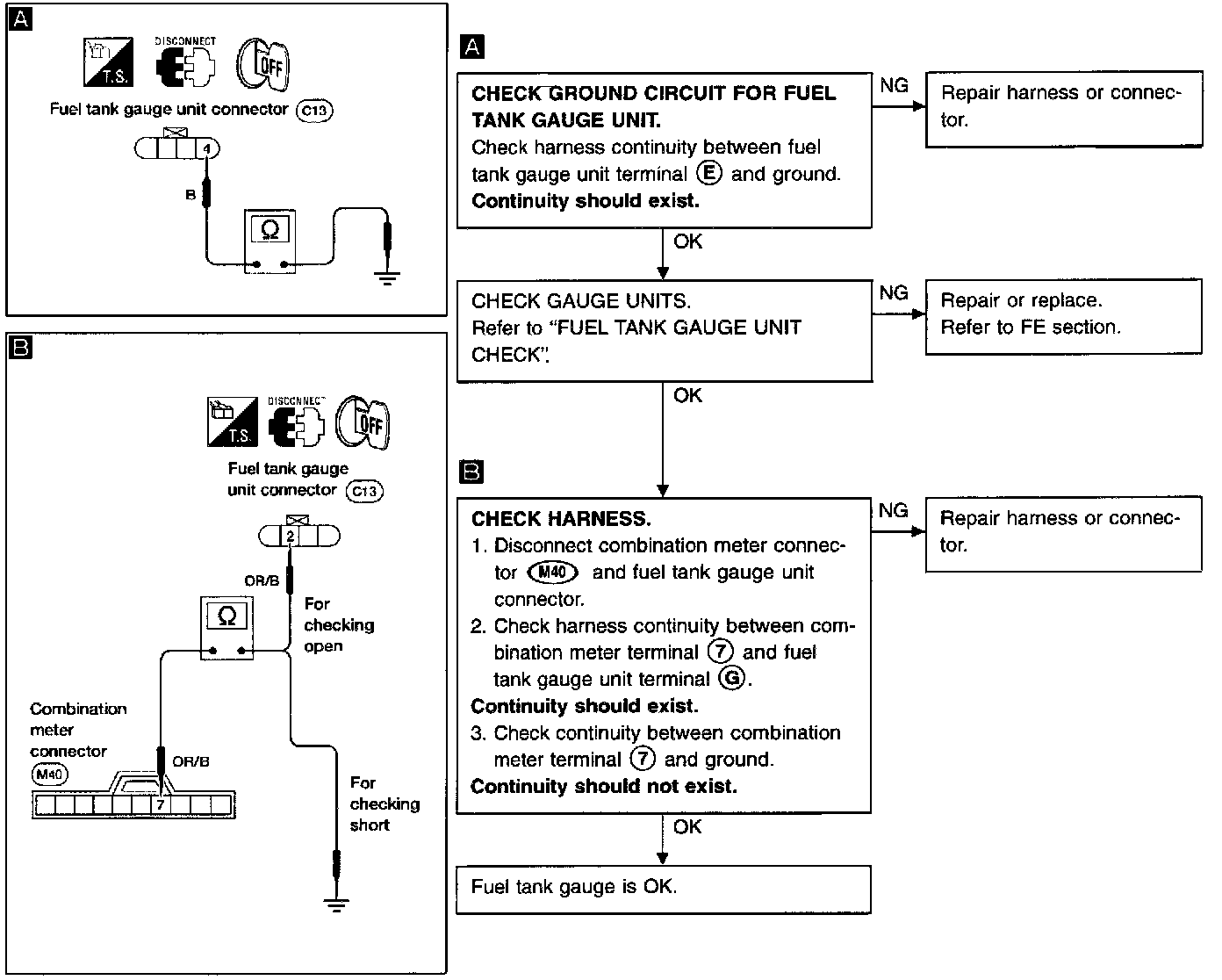

INSPECTION/FUEL TANK GAUGE

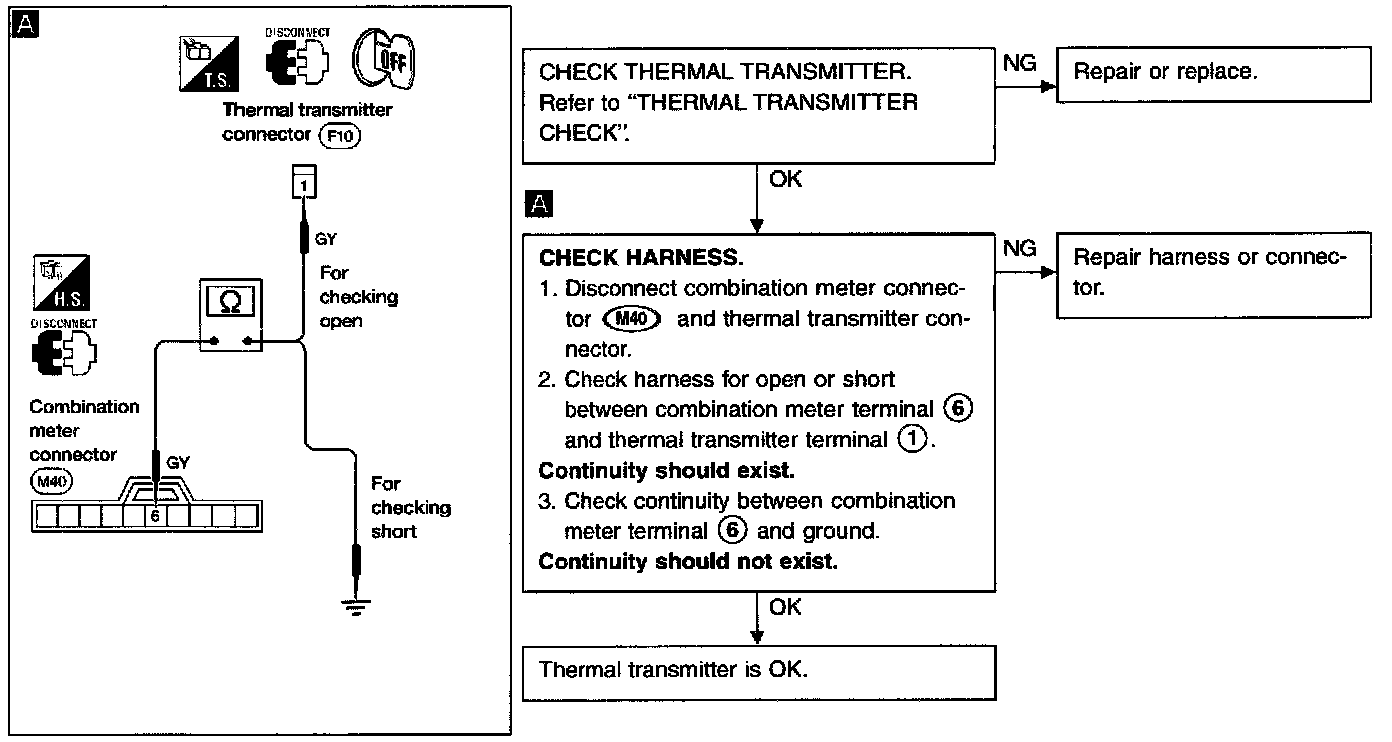

INSPECTION/THERMAL TRANSMITTER
