Component Tests and General Diagnostics

KEY SWITCH (insert)
Check continuity between terminals when key is inserted in ignition key cylinder and key is removed from ignition key cylinder.

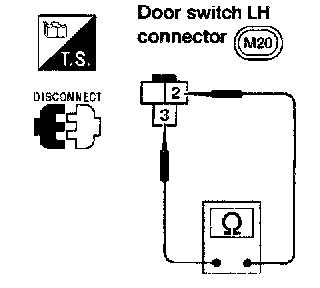

DRIVER SIDE DOOR SWITCH
Check continuity between terminals when door switch is pushed and released.

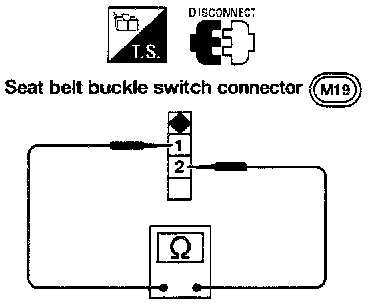

SEAT BELT BUCKLE SWITCH

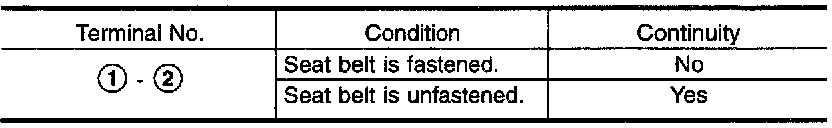

Check continuity between terminals when seat belt is fastened and unfastened.
