Before VIN 343314

REAR OIL SEAL
1. Remove flywheel or drive plate.
2. Remove rear oil seal retainer.





3. Remove rear oil seal from retainer.

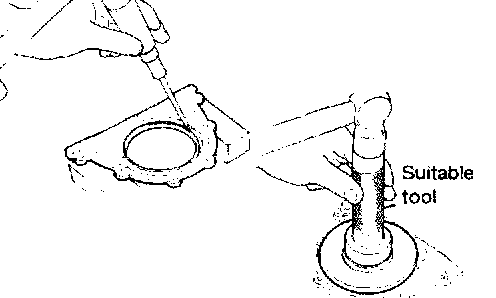

4. Apply engine oil to new oil seal and install it using suitable tool.
5. Install rear oil seal retainer with a new gasket to cylinder block.
