Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive/Propeller Shaft >> Before VIN #343314

Before VIN #343314

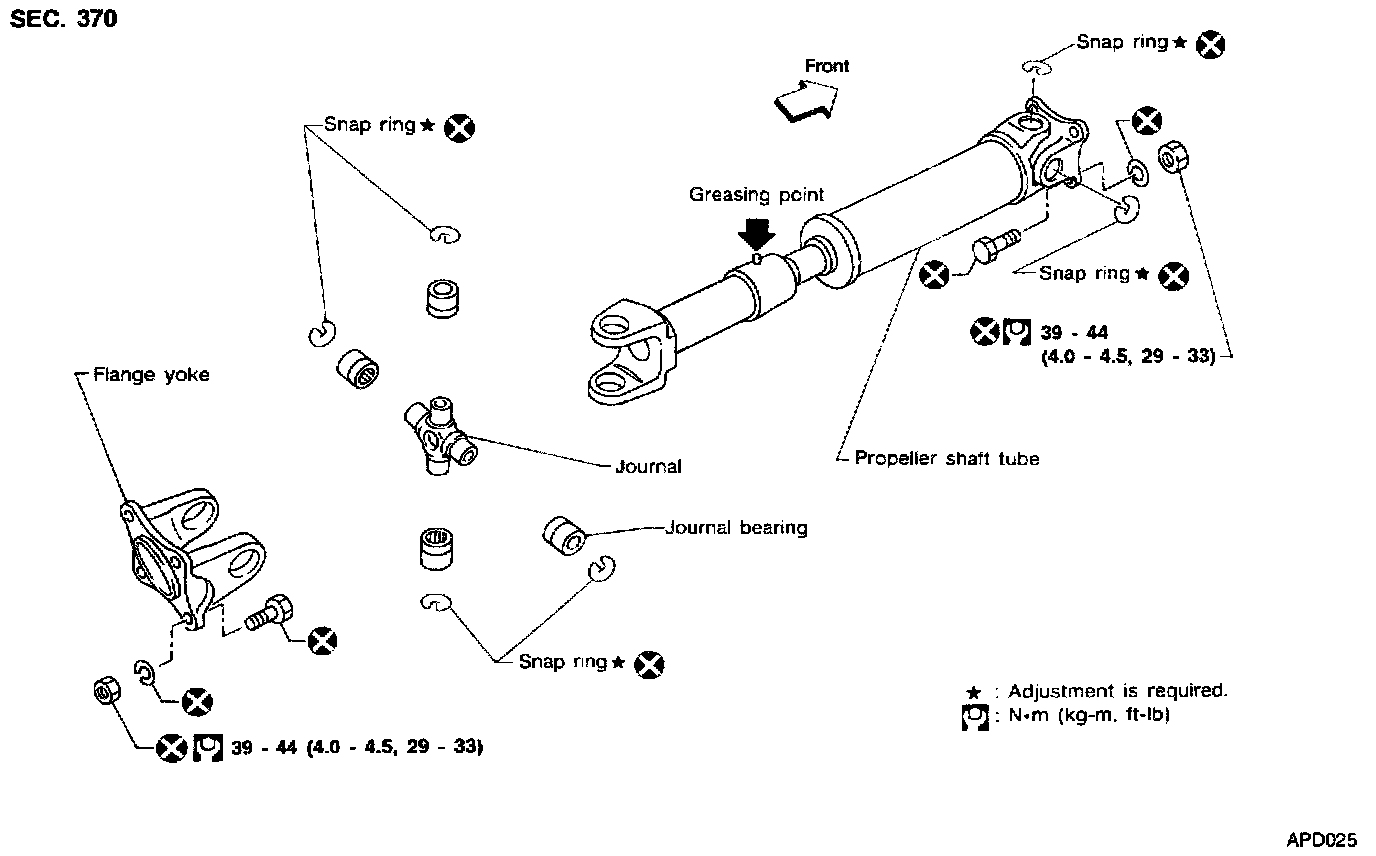

Front propeller shaft (Model 2F1310)

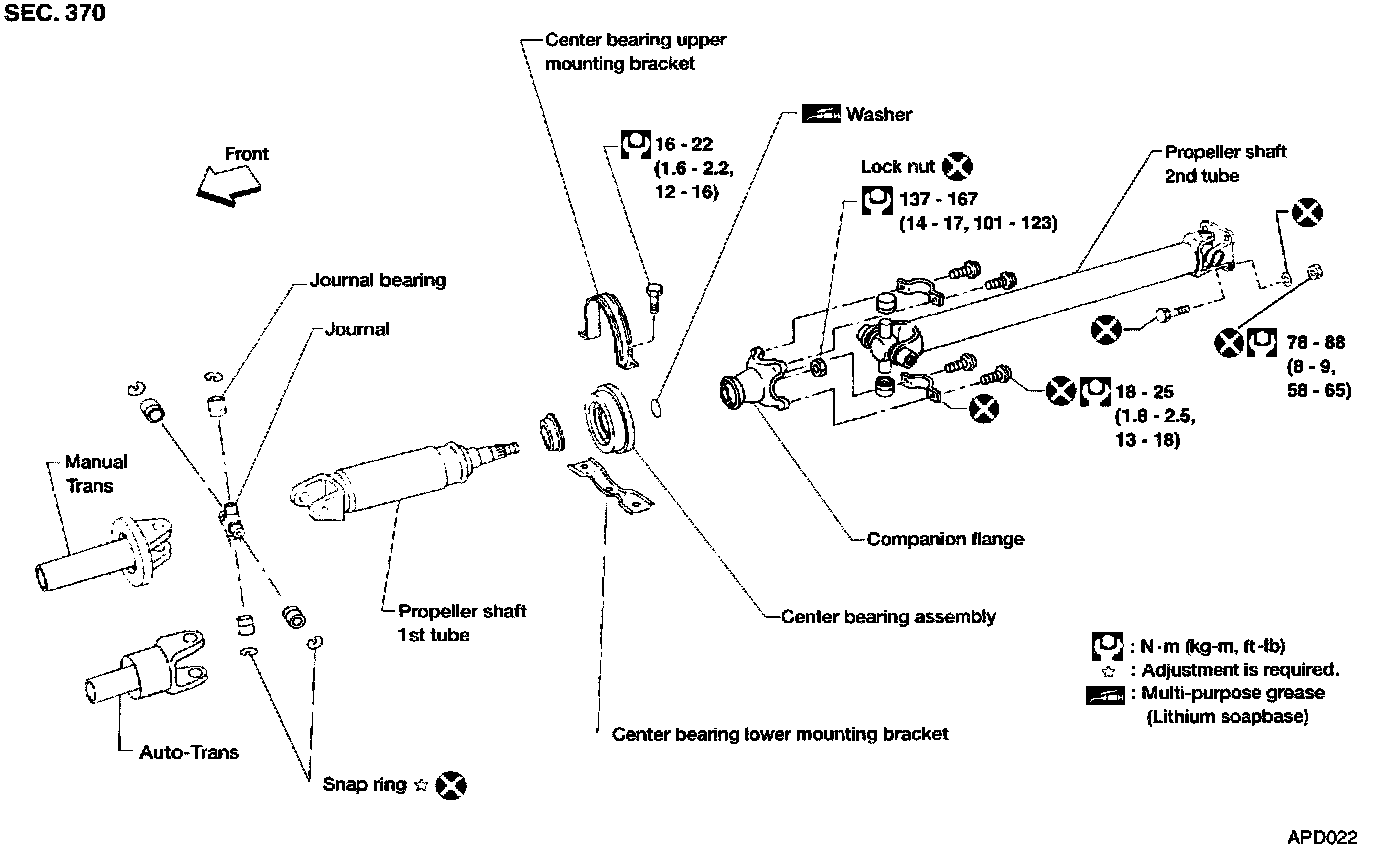

Rear propeller shaft (Model 3S1310)
