Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE King Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Meter and Gauges >> Before VIN 343314

Before VIN 343314

Combination Meter

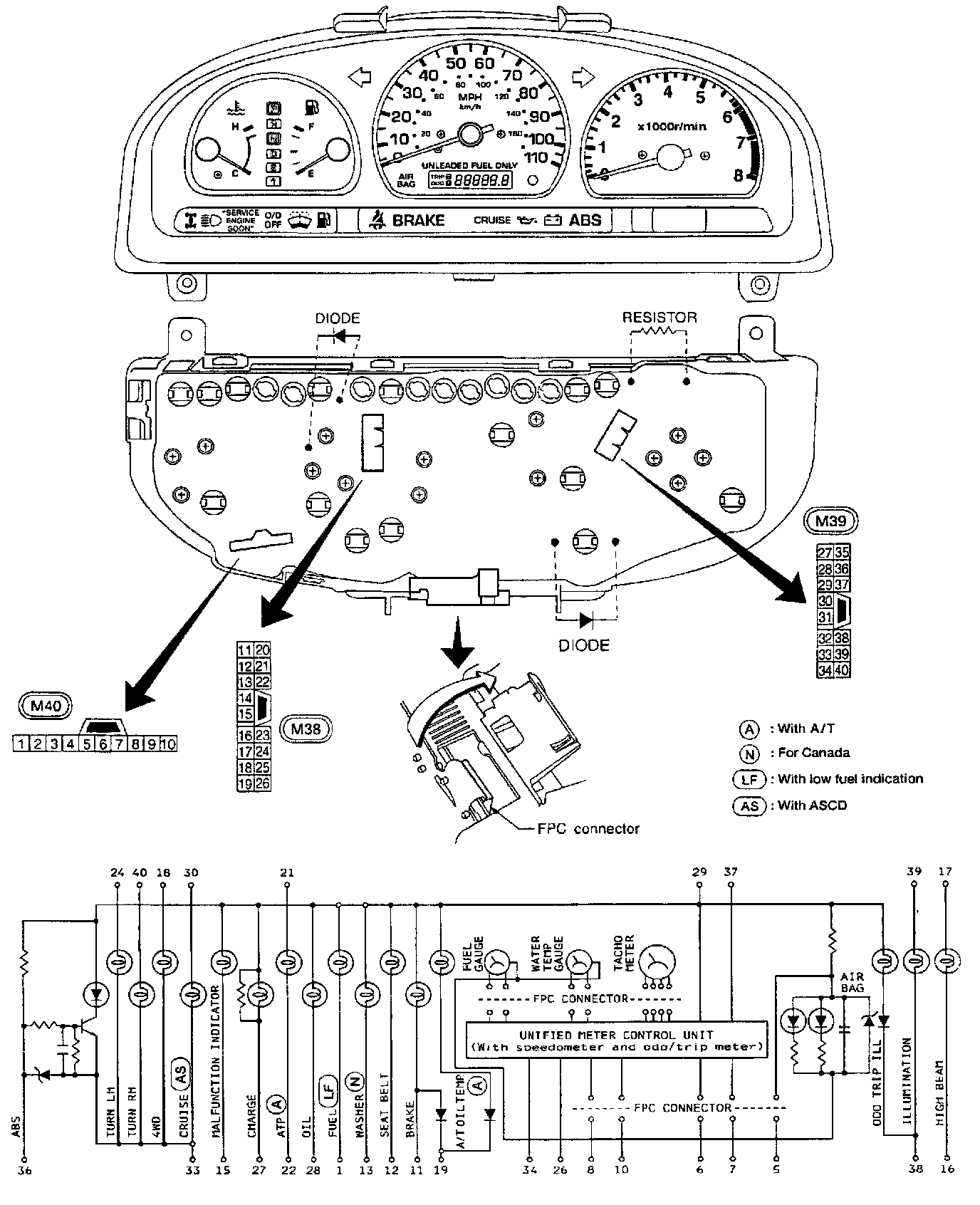

WITH TACHOMETER

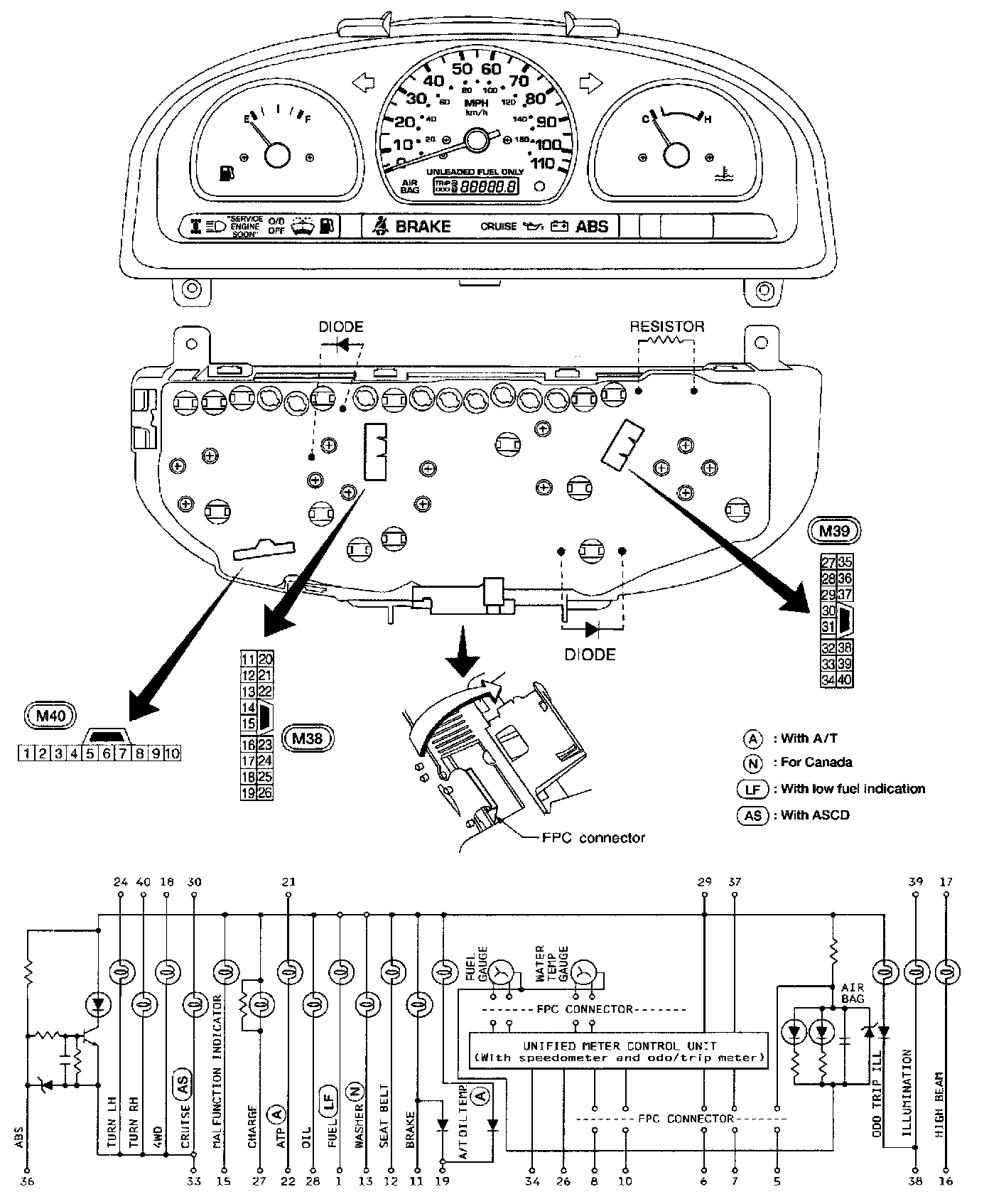

WITHOUT TACHOMETER

EL-METER-01:

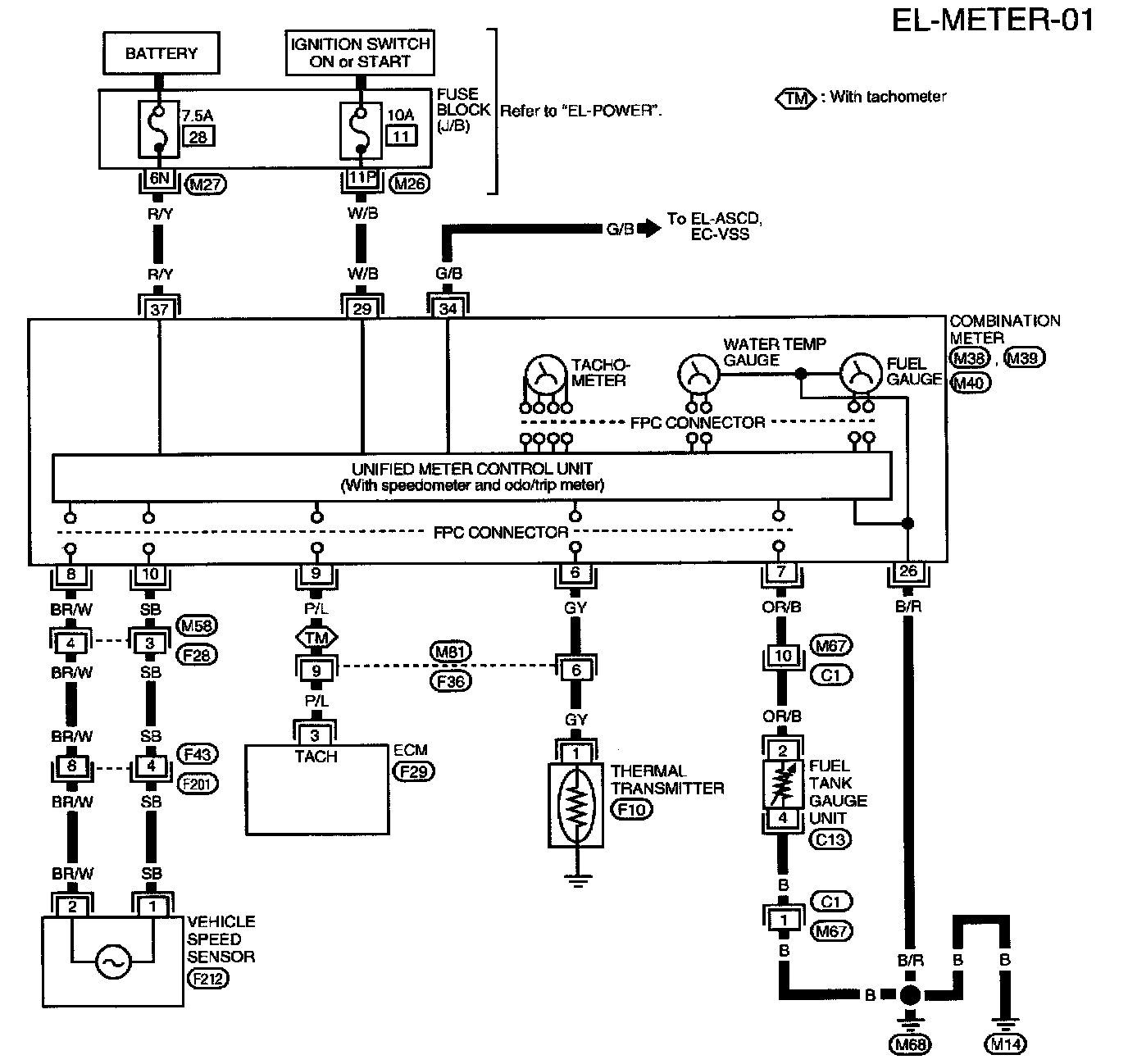

Circuit Diagram

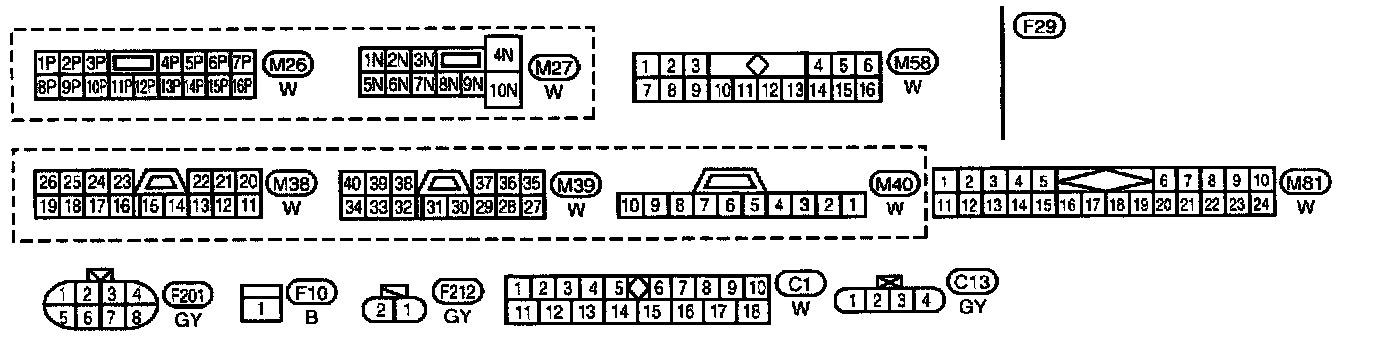

Circuit Connectors




F29 Electrical Units Terminal Arrangement
