Before VIN 343314

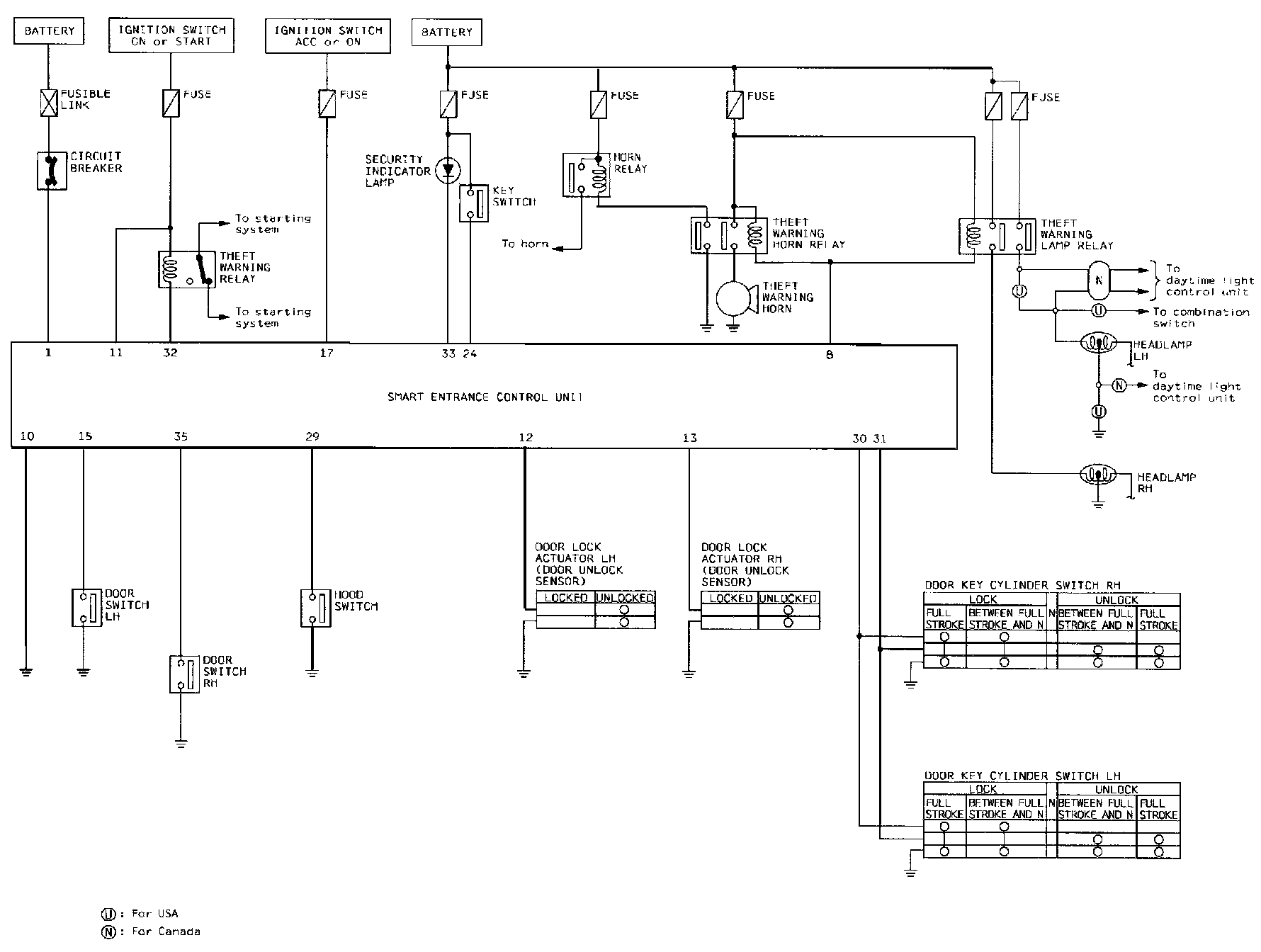

Schematic

Circuit Diagrams

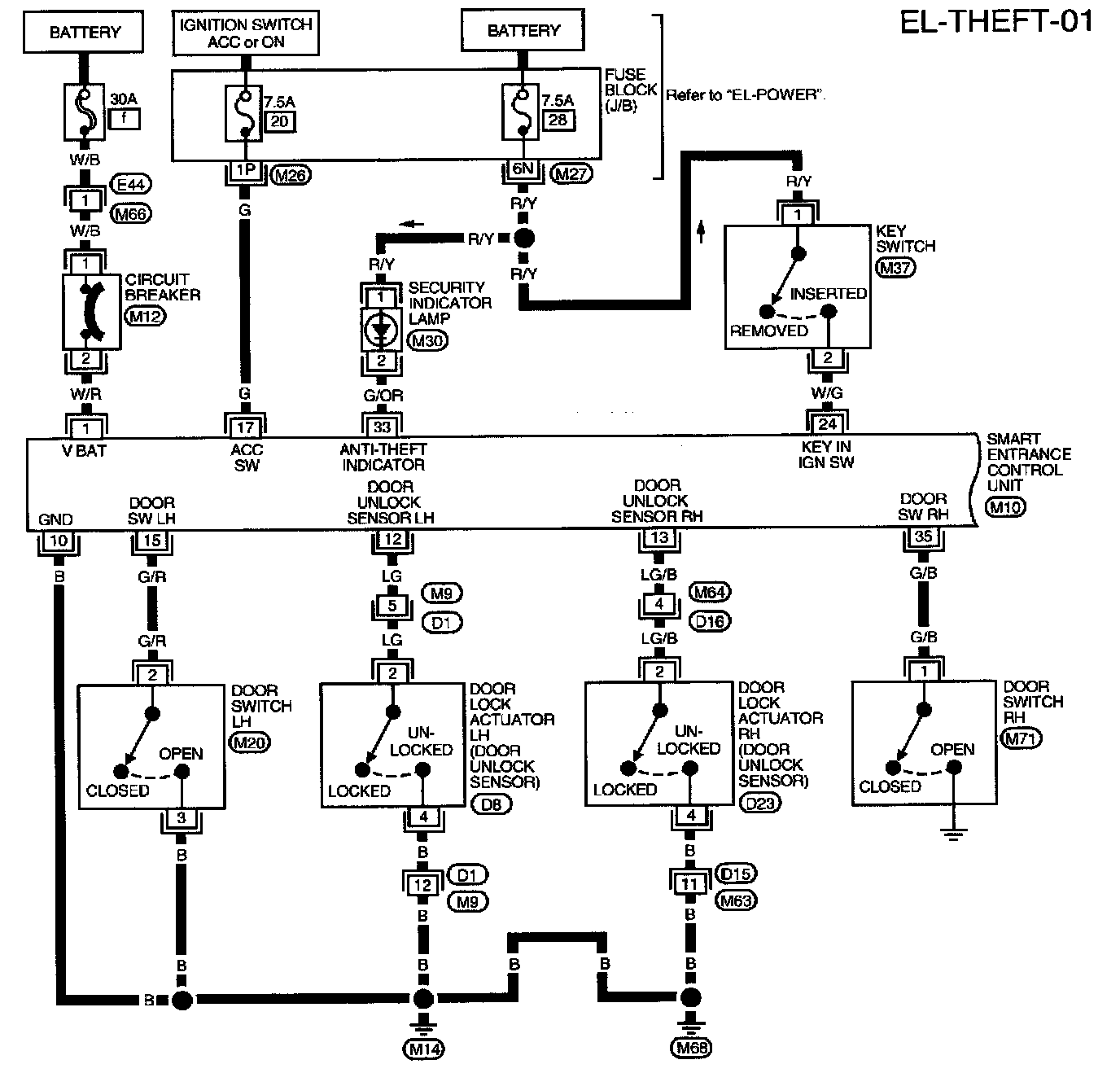

EL-THEFT-01:

(Part 1 of 3)
Fuse Block (J/B)
Circuit Breaker
Security Indicator Lamp
Key Switch
Smart Entrance Control Unit
Door Switch (LH & RH)
Door Lock Actuator (LH & RH) (Door Unlock Sensor)

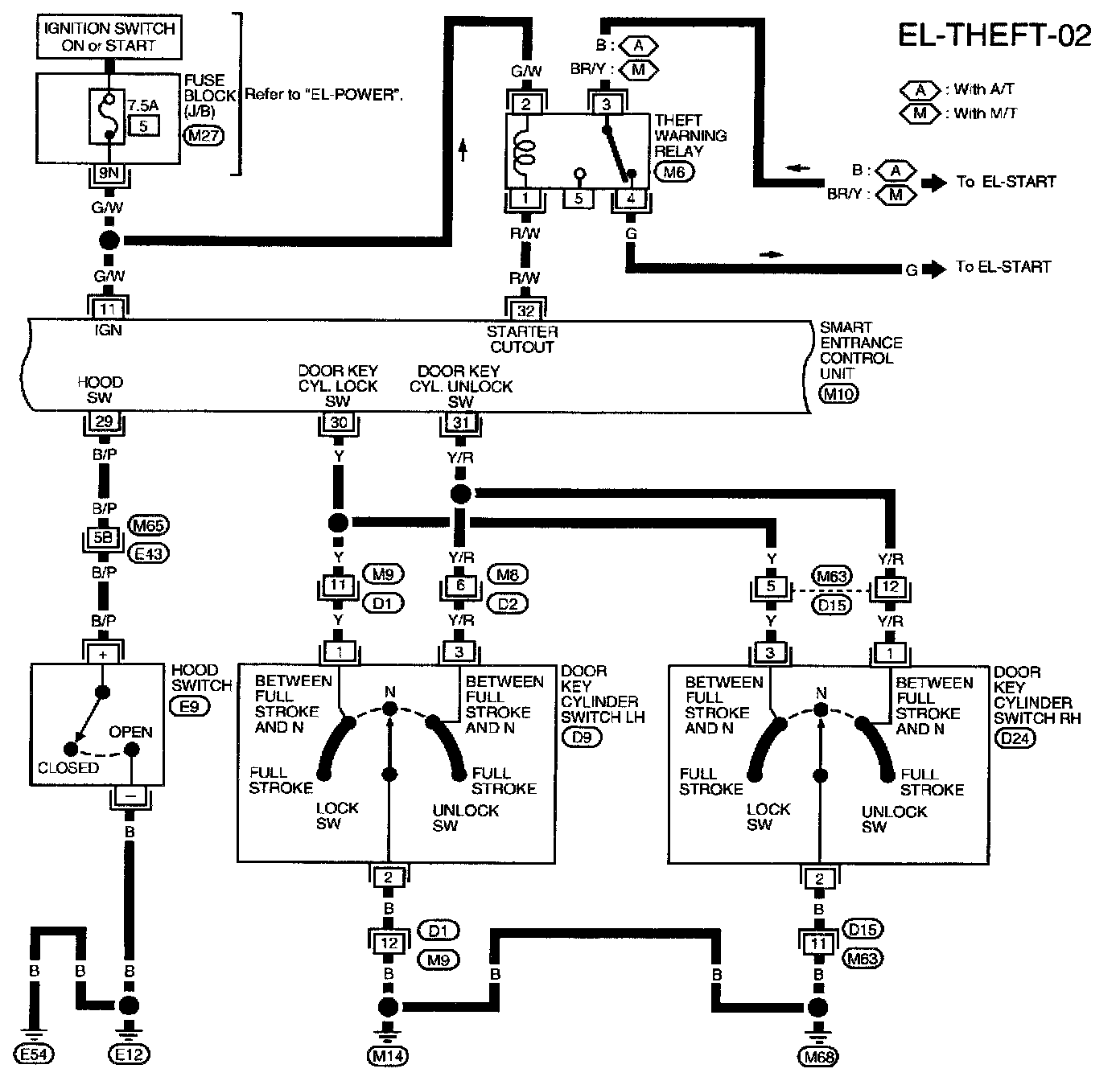

EL-THEFT-02:

(Part 2 of 3)
Fuse Block (J/B)
Theft Warning Relay
Smart Entrance Control Unit
Hood Switch
Door Key Cylinder Switch (LH & RH)

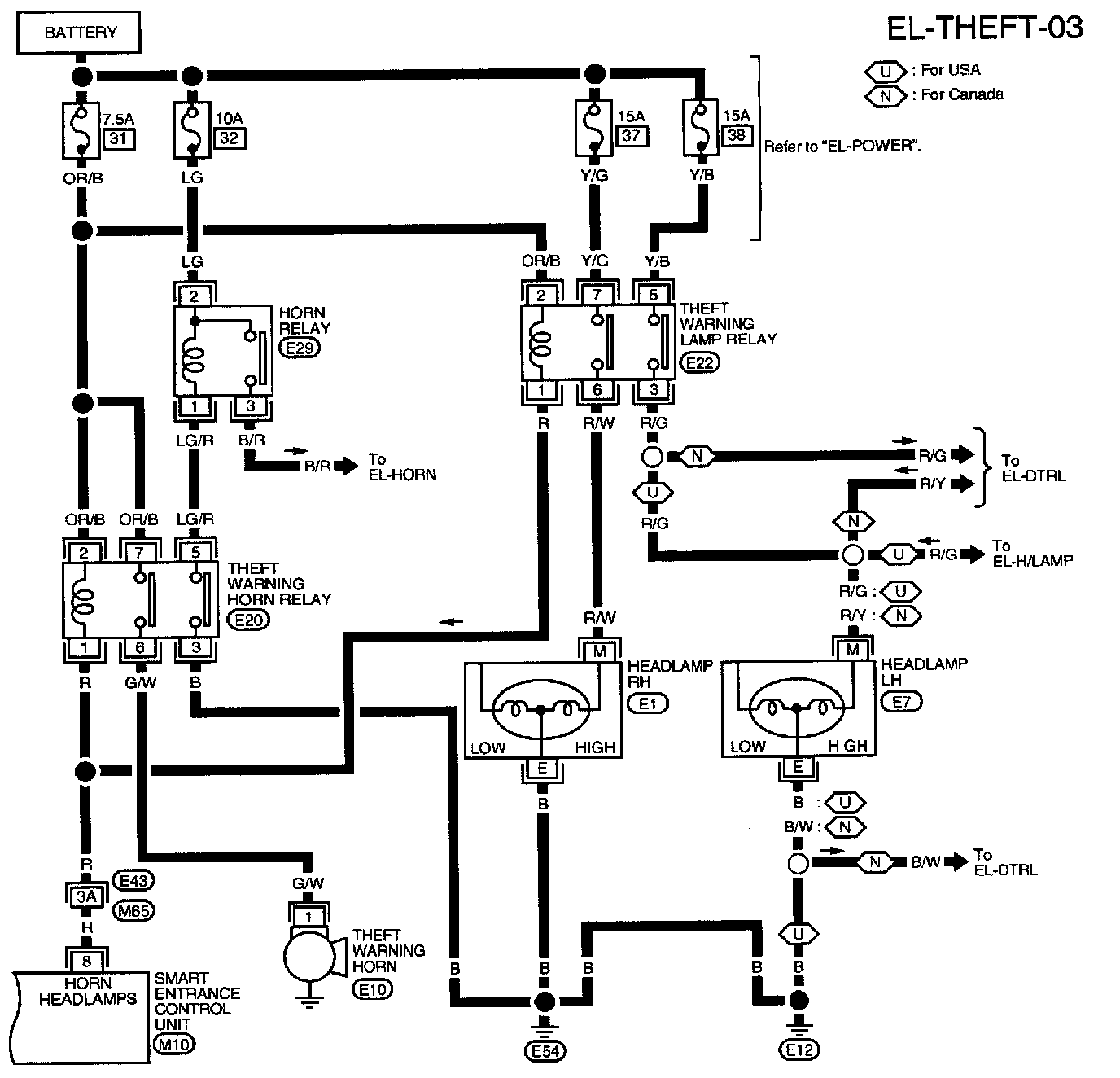

EL-THEFT-03:

(Part 3 of 3)
Horn Relay
Theft Warning Lamp Relay
Theft Warning Horn Relay
Headlamp (LH & RH)
Smart Entrance Control Unit
Theft Warning Horn










Circuit Connectors




E43, M65 Super Multiple Junction (SMJ) Terminal Arrangement
