Before VIN 343314

Schematic

Circuit Diagrams

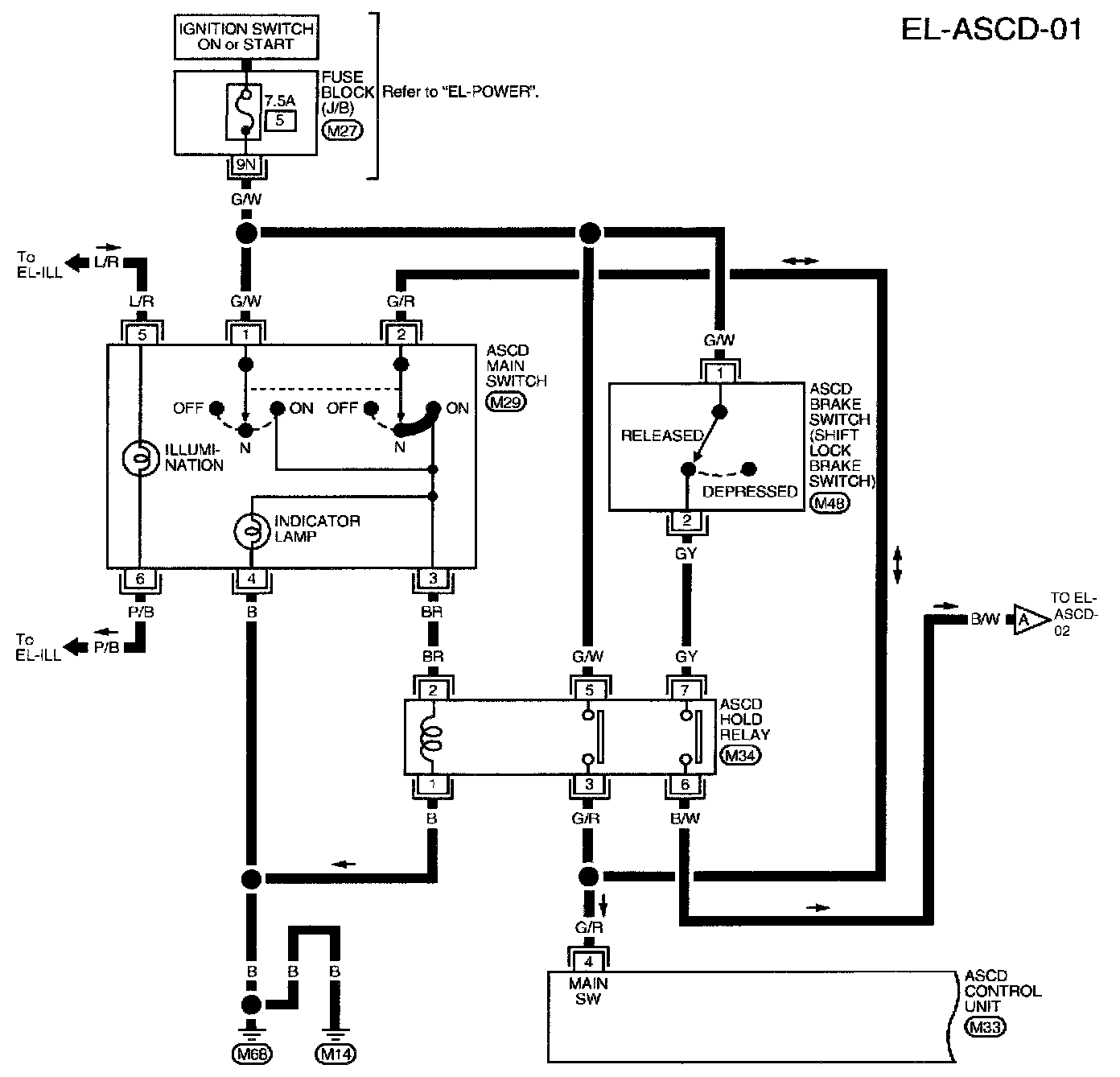

EL-ASCD-01:

(Part 1 of 4)
Fuse Block (J/B)
ASCD Main Switch
ASCD Brake Switch (Shift Lock Brake Switch)
ASCD Hold Relay
ASCD Control Unit

EL-ASCD-02:

(Part 2 of 4)
Park/Neutral Position (PNP) Switch
ASCD Relay
ASCD Clutch Switch
ASCD Control Unit

EL-ASCD-03:

(Part 3 of 4)
Horn Relay
ASCD Steering Switch
Spiral Cable
ASCD Control Unit
ASCD Pump

EL-ASCD-04:

(Part 4 of 4)
Vehicle Speed Sensor
Fuse Block (J/B)
Combination Meter (Speedometer)
ASCD Control Unit
TCM (Transmission Control Module)













Circuit Connectors




E43, M65 Super Multiple Junction (SMJ) Terminal Arrangement
