Electrical Components

G sensor

CAUTION: The G sensor is easily damaged if it sustains and impact. Be careful not to drop or bump it.

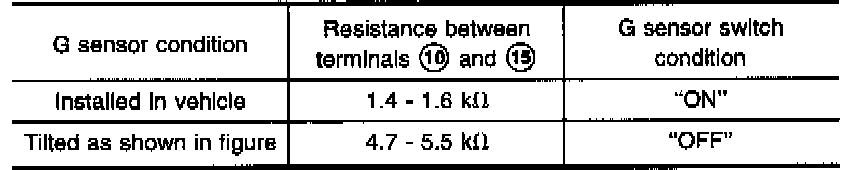

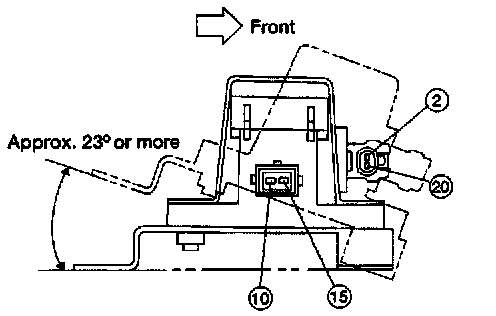

1. Measure resistance between terminals (10) and (15)of G sensor unit connector.





2. Measure resistance between terminals (2) and (20) of the G sensor unit connector.
